KST | Focus on Valve Solutions For Fluid Control
A. Rich production experience from 1997.
B. Strong quality assurance with ISO/CE certificates etc.
C. Self-research Team R&D to ensure Valve quality .
D. Professional Customer Serverces 1 vs 1.
E. LOW MOQ Start From 1pcs
F. Customized Available

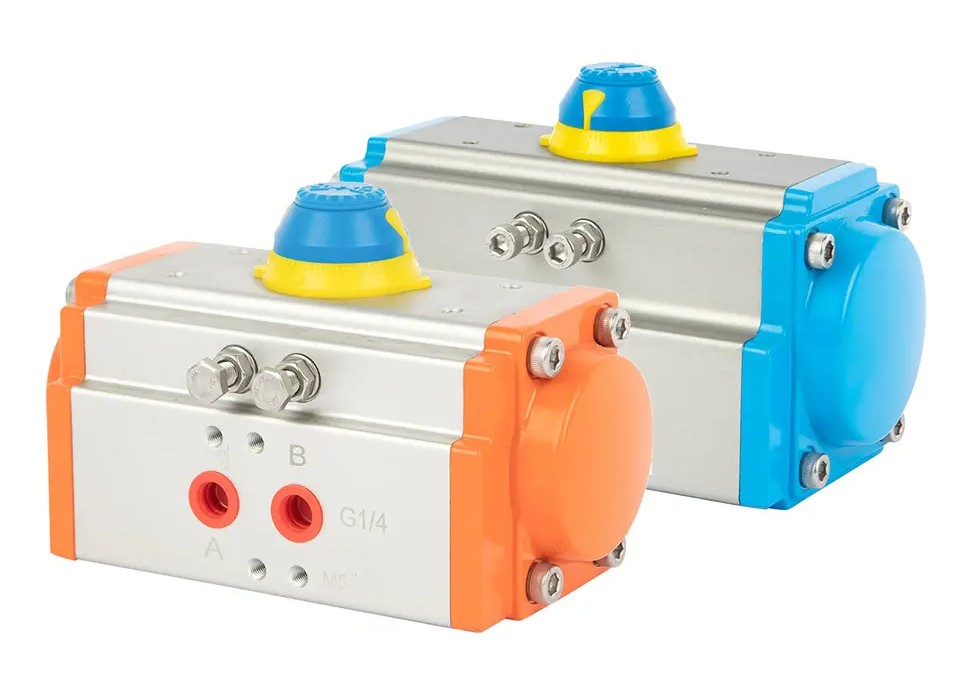

Actuator Technical Parameters
Technical Parameters Details
Actuator Cylinder Diameter 50～240mm
Ambient Temperature Standard: -20～80°C
High Temperature: -15～150°C
Low Temperature: -40～80°C
Actuation Type D – Double Acting
S – Single Acting
Air Supply Pressure 3-8 bar
Stroke Angle 0～90°, 0～120°, 0～135°, 0～180°
Torque Double Acting: 4 N.m～3000 N.m
Single Acting: 2 N.m～1000 N.m
Protection Rating IP65
