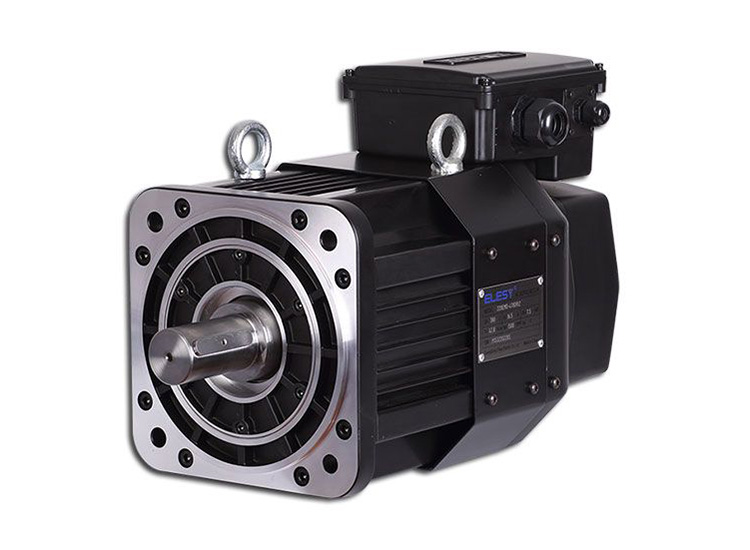

220EMD series servo motor Elesy

Sever Motor Model 220EMD-
478D 700D 955D 525C 716C 900C 10EC
Rated Voltage V 380
Rated Output Power kW 7.5 11.0 15.0 11.0 15.0 18.8 22.0
Rated Torque N.m 47.8 70 95.5 52.5 71.6 90 105
Maximum torque N.m 143.4 175 210.0 157.5 179 198 231
Rated Current Arms 16.5 22.5 36 23.5 31.5 33.0 50.0
Maximum Current Arms 49.5 56.3 79.2 70.5 78.8 72.6 110.0
Torque Constant N.m/A 2.90 3.11 2.65 2.23 2.27 2.73 2.10
Rated Speed r/min 1500 2000
Maximum Speed r/min 2000 2500
Moment of inertia ×10-3kg.㎡ 18.0（18.7） 22.8（23.8） 28.8（29.5） 18.0（18.7） 24.1（24.8） 26.8（27.5） 30.1（30.8）
Weight-without Brake kg 43.8 53.4 63.4 43.8 54.7 59.8 66
Weight-with Brake kg 53.8 63.4 73.4 53.8 64.7 69.8 76
Maxinum radial load N 1122
Maxinum radial load N 2780
Brake Rated Voltage V DC24V
Brake Rated Power W 50
Brake Holding Torque N.m 100
Encoder Opitions 5120000 Incremental Encoder
Wire-saving Encoder
Absolute Encoder
Rotary Transformer
Insulation Class F
Ambient temperature 0 to+40℃（NO Freezing）
Ambient Humidity 20to80%RH(Non-condensing)
Enclosure IP54 (except for shaft opening)
