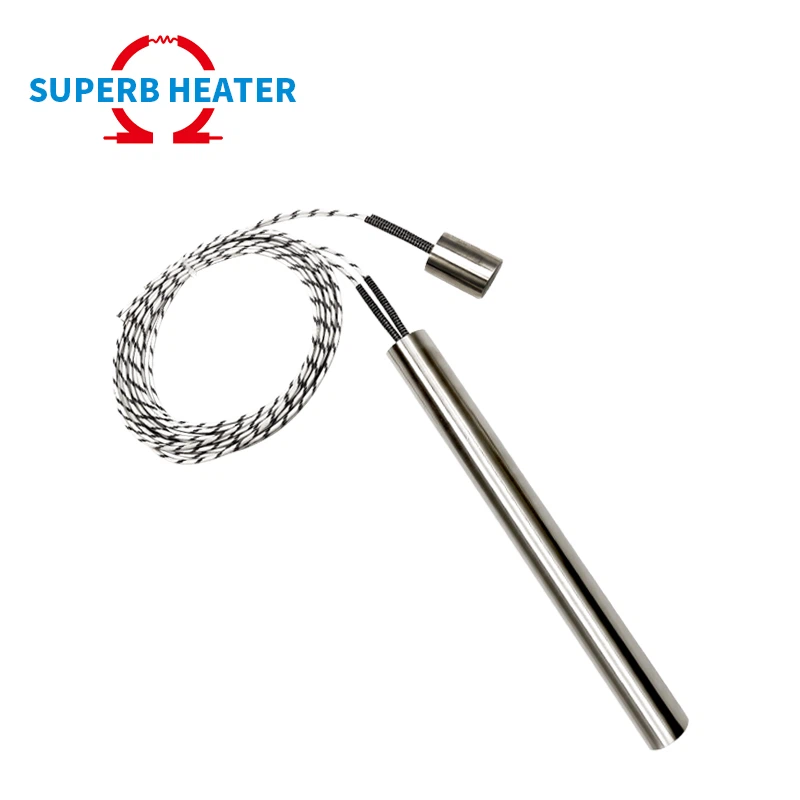

actory 12v 24v 110v 220v 100w 200w 300w 600w 1000w Stainless Steel Electric Cartridge Heater Heating Element For Mold Superbheater

Resistance heating wire Ni80Cr20, Pure nickel,FeCr, etc…
Wattage Tolerance +5%, -10%
Resistance tolerance +10%, -5%
Length tolerance ±1 mm
Diameter tolerance ± 0.02mm
Standard Cold Zone 5-10mm
Insulation resistance (cold) ≥ 500 MΩ
Maximum leakage current (cold) ≤ 0.5 mA
Thermocouple Location type J / K / Ground wire
Input voltage and wattage Customized as request

.
.
.
.
