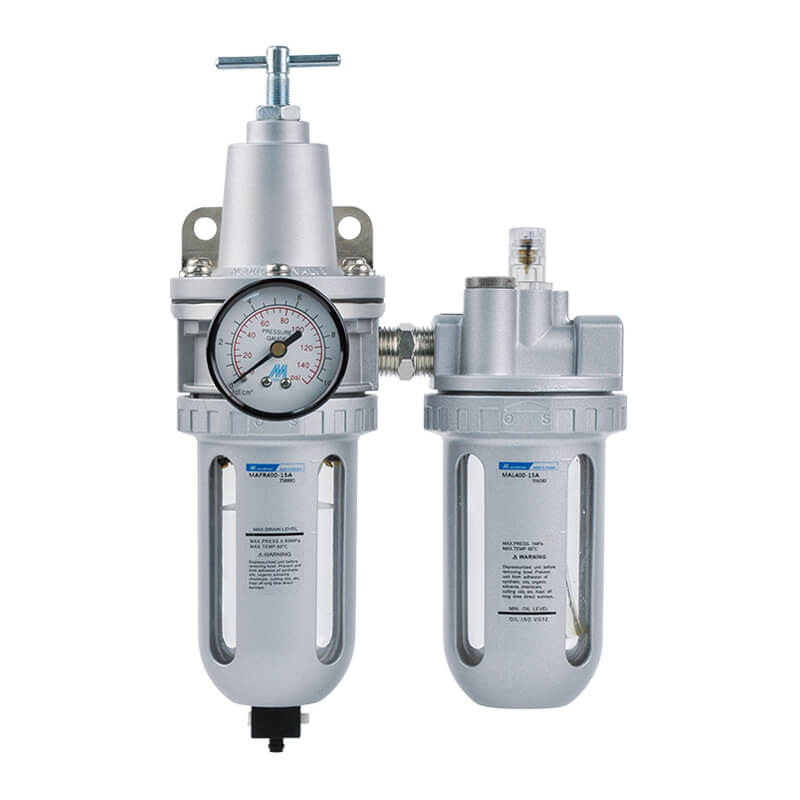

| Components | MAFR400,MAL400 |
|---|---|
| Bore No. | 8A, 10A, 15A |
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range (※) | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Filter element | Standard:40μm Option:5μm |
| Lubricating oil capacity | 200c.c |
| Min. flow for oil drip | 100 l/min~400 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure gauge (PG-50), bracket |
| Weight | 2300 g |
| Remark | 1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. 2.Choose auto-drain FMRF300,the pressure range is 0.15~1 MPa. |
