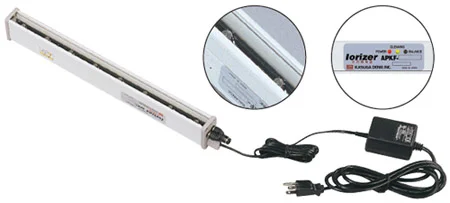

ar type static eliminator
(APKF)
Features
Equipped with a cleaning lamp that notifies you when it is time for cleaning. This makes it easy to know when maintenance is required. (APKF-0000-H only)
By incorporating a high-voltage generating circuit in the static elimination electrode, high-voltage wiring is eliminated, increasing safety.
A ground electrode has been installed in the DC type to stabilize the corona discharge (patent pending). This has improved the electric field shielding effect and ion balance stability, reducing the frequency of cleaning the discharge electrode.
The discharge electrode needle is easily replaceable.
By using clean air in combination, static electricity can be removed quickly.
Because it is a DC type, it generates a significantly larger amount of ions, enabling high-speed static elimination.
The ion balance can be finely adjusted to keep the potential at the static elimination location at zero volts.
specification
Static electricity removal device
Model APKF
Ion generation method DC corona discharge type
Electrode bonding method high resistance coupling
Power Input DC24V
Power consumption the below described
environment Temperature: 0 to 40°C, humidity: 80% RH or less (no condensation)
mass the below described
Dedicated AC adapter (power supply specification 1)
Model KN-AC5A
Input voltage AC100-240V 50/60Hz
Output Voltage DC24V
environment Temperature: 0 to 40°C, humidity: 80% RH or less (no condensation)
mass 280g
Static electricity elimination characteristics of high-speed traveling film
Static electricity elimination characteristics when installed under clean bench downflow
Dimensions and names of each part (dimension unit [mm])
Electrodes, mounting brackets
AC adapter
Purpose
Eliminating static electricity during high speed transport of films, etc.
Static electricity removal during flat panel transportation
Ion area generation by attaching to clean bench or clean unit
Model type Installation distance guideline Purpose
APKF Air Type 100 to 1,000 mm High-medium and low-speed conveyed objects, high-speed static neutralization
PKF For long distance 300 to 1,000 mm Clean bench
