| D Series) |
  |
|||||
| Outline | |||||
| Model | Rated power | Input power | Cooling method | Enclosure Dimensions | weight |
| W×D×H（ｍｍ） | （Kｇ） | ||||
| BMD-1H | １KW | １φ100V 50/60Hz | air-cooled | 260×230×108 | 5KG |
| BMD-5H | 5KW | 3φ200V 50/60Kz 6KVA | air-cooled | 200×330×330 | 15KG |
| BMD-5S | ５KW | 3φ200V 50/60Kz 6KVA | water-cooled | 100×330×330 | 8.5KG |
| BMD-10H | 10KW | 3φ200V 50/60Kz 6KVA | air-cooled | 250×430×330 | 21KG |
| BMD-10S | 10KW | 3φ200V 50/60Kz 12KVA | water-cooled | 150×430×450 | 15KG |
| BMD-10L | 10KW | 3φ200V 50/60Kz 12KVA | water-cooled | 150×430×450 | 17KG |
| BMD-20S | 20KW | 3φ200V 50/60Kz 24KVA | water-cooled | 200×450×450 | 25KG |
| High Frequency Current Transformer (BMT Series) |
 |
|||
| Outline | |||
| Model | Cooling method | Outer Diameter Dimensions | weight |
| BMT-5 | Water-cooled | 150×220×155 | 5.0KG |
| BMT-10 | Water-cooled | 170×270×155 | 6.0KG |
| BMT-10A | Water-cooled | 265×370×240 | 1７KG |
| BMT-20A | Water-cooled | 262×375×237 | 20KG |

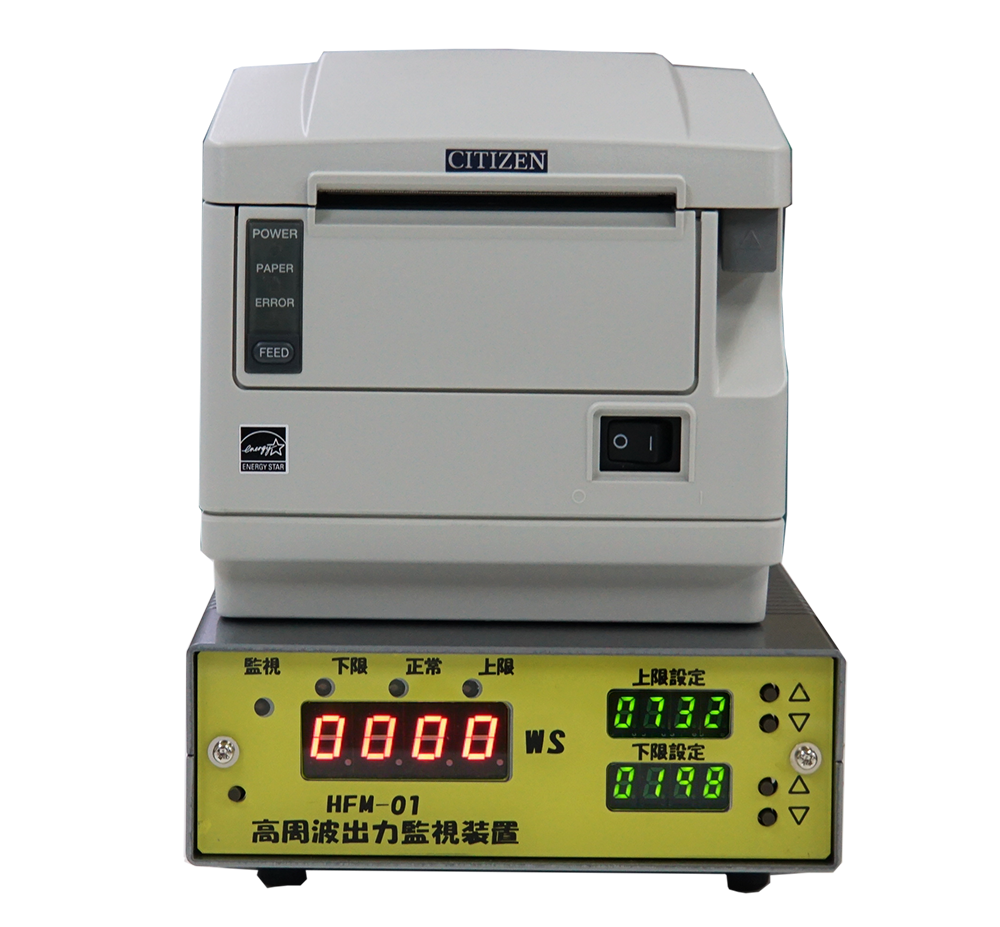

| High-frequency output monitoring device (optional) | |
 |
■ Variation support
■ Data output |
| Comments on the design and production of heating coils and peripheral equipment, etc. |
| The heating coil required for high-frequency heating is the most important one in order to efficiently transfer high-frequency energy to the object to be heated. We design and manufacture the most suitable coil in consideration of the customer’s heating application, workability, etc. In addition, according to the customer’s request, we design and manufacture high-frequency heating equipment and peripheral equipment, and we also accept orders for ancillary equipment (cooling water supply equipment, etc.) necessary for the operation of the equipment. * For detailed product specifications and peripheral equipment, please feel free to contact us. |
