Controller Specifications
CA01-M05 Controller

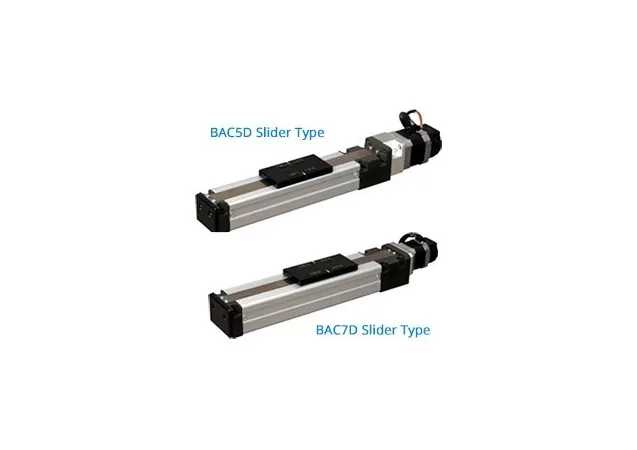

Series BAC
Teach Pendant TPH-4C
Power Supply 24VDC
Max Power Capacity 0.25A
Dimensions 31W x 146 x 89D
Mass 0.25kg
Storage 15 points
(point designation mode only)
CE Version Tbc.
USER I/O Count 0/0
SYSTEM I/O Count 10/8
SYSTEM INPUTS Start (+JOG), stop (-JOG), servo on, write, error reset, mode switch, point command bit 1~4
SYSTEM OUTPUTS Run, error(READY), position complete, slider in designated area, completion point number bit 1~4 (torque control in operation, torque load, torque limit, slider locked)
Fieldbus SLAVE options N/a
Extended I/O Options N/a
Communications RS232C
Standard SCOL Functions External point designation mode, self-diagnostics
