Specially high-efficiency compact insert heater based on unique technology and experience Providing high finish accuracy in the external dimensions of the
cartridge heater Custom cartridge heaters with built-in
thermal fuses, built-in thermocouples, etc.
The external dimensions of the cartridge heater offer a high degree of finish accuracy.
We have a proven track record of custom products with +0 and -0.1 mm diameters, +/-2% lengths, 0.3/300 mmL warpage, and up to 30 W/cm2 for high-watt cartridges.
We also offer cartridge heaters with high temperatures, long life, and fast rise speeds.
We specialize in custom products such as built-in thermal fuses and built-in thermocouples.

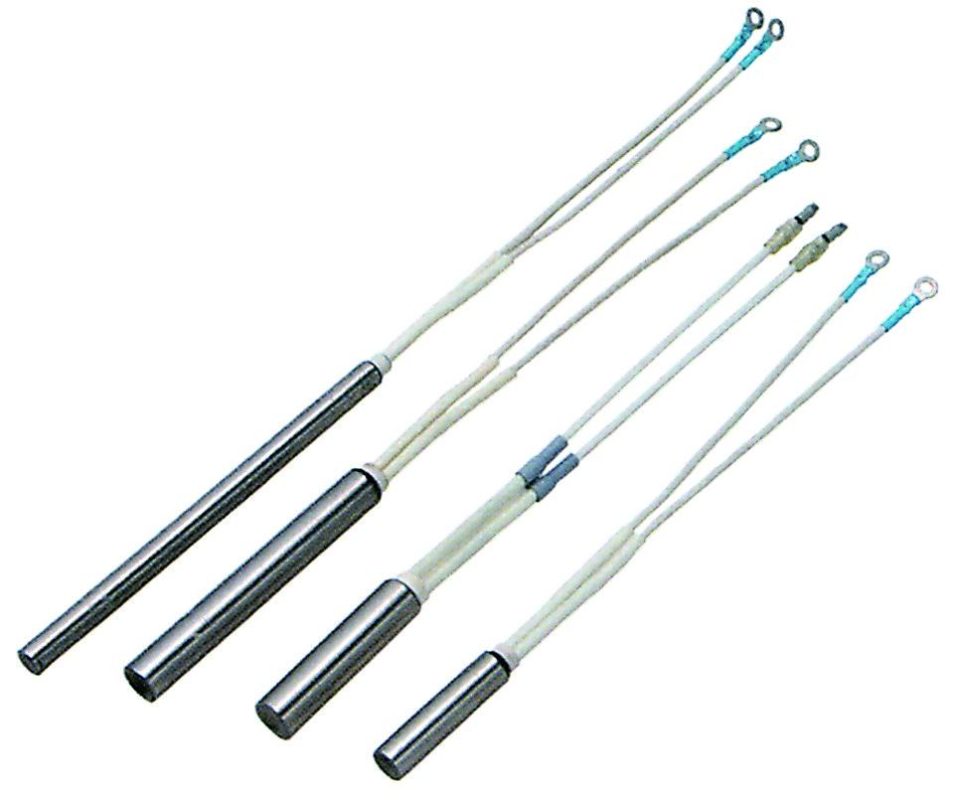

Cartridge Heater
L-Type Cartridge Heater
L-shaped cartlidge heater
Waterproof cartridge heater
Waterproof cartridge heater
Product Features of Cartridge Heater
Space-saving
Space saving due to miniaturization of Φ6 mm. The power cord can be unilaterally bundled
Hi-watt
High wattage of up to 30 watts/㎤ while having excellent thermal response
Maintainability
The heater can be easily replaced, and it is easy to maintain
High applicability
Built-in sensors and thermal fuses, IP×8 waterproof standard, flicker countermeasures, three-phase applications, etc.
Areas of introduction of cartridge heaters
air conditioner Electric cookers, ovens, microwaves, irons, electric kettles, hot plates, etc.
Professional equipment Electric kilns, ovens, electric furnaces, casting parts, pressing, air conditioning/air conditioning equipment, kitchen equipment, etc.
Industrial Equipment Tank heating, chemical heating, heat preservation, low melting point metals, extrusion molding machines, valves/piping heat insulation and heating
Heating and Heat Preservation Petrochemical and other industrial applications (pipes, water pipes, drainage pipes, equipment/equipment for pipelines and storage tanks, heat retention, freeze prevention, defrosting, etc.), semiconductor and liquid crystal manufacturing processes, pharmaceutical manufacturing processes, medical and chemical equipment, melting and heating of lead, solder, zinc, aluminum, etc. (heating of extruded billets, etc.), etc.
desiccation Painting, wood, foodstuffs, agriculture, forestry and livestock, garbage, sludge, etc.
other Adhesion, embedding, and casting on metal bodies
Heat sealing bars, press heat plates, T-dies, various machines, medical equipment, optical instruments, molds, LABO machines, etc. Heating
to cylindrical objects such as
extruder cylinder heating Heating of chemical baths, etc., heating by attaching a strip heater, etc. Can be incorporated into
a hot plate
Examples of cartridge heater applications
Cartridge Heaters (Packaging Machinery)
Packaging Machinery
It is used in packaging machinery as a heater for sealing plastic films and bags.
Cartridge heater (heat-generating knife for fusing)
Heating knife for fusing
It is a heat-generating knife for melting plastic seals and films.
Cartridge heater (insertion into presses and molds)
Insertion into presses and molds
The cartridge heater contributes to waste-free heating by inserting it into a press or mold.
Cartridge heater (defrosting of cooling fins, etc.)
Defrosting of cooling fins, etc.
Cartridge heaters are also easily used for defrosting cooling fins.
Cartridge heaters (heating bodies for hot stamping machines, etc.)
Heating body of a hot stamping machine, etc.
Since it is small and can be inserted and installed in a narrow space, it is also used as a heating body for a hot stamping machine.
Cartridge heater (shape correspondence by heater insertion pore processing)
Compatible with the shape by heater insertion pore processing
No matter what shape the metal body is, it is easy to perform high-temperature intensive heating by the heater insertion pore process.
Cartridge heater (for small parts of the machine)
Suitable for narrow parts of machines
As a heater for bottle mouth sealing machines, it demonstrates its true value for continuous use in narrow parts of the machine.
Cartridge heater (also available for manual type)
Compatible with manual operation
An example of installing a cartridge heater for a manual ciel mold machine.
Engine heating in cold weather (to prevent pump freezing)
pumpanti-freeze
A cartridge heater is used as a heater to prevent the pump from freezing.
Bolted heater|Cold engine heating (oil insulation)
Engine heating in cold weather (oil insulation)
Cartridge heaters are also used to heat engines in cold weather or to keep oil warm.
Cartridge heaters (bolted heaters)
Bolted heater
Cartridge heaters are also used for bolted heaters.
Cartridge heater (heating for tightening)
tighteningheating
It is used as a heating heater for high-pressure turbines and other large tack bolts.
About cartridge heater standard products
Standard product: Standard specification (cartridge heater)
Sheath material Stainless steel (various types such as Incoloy on request)
Heating wire Nickel-chromium alloys
Outer diameter dimension (D) φ6～φ20
Standard product φ8、φ10、φ12、φ14、φ16
Heater length (L) standard product 30～320mm
50～300mm
Lead wire length (standard product) 200mm
Dimensional tolerance standard products φD +0、-0.1
L±2%
Capacity Tolerance ±10%
Heater sled 0.3 for L = 300
Effective heating unit dimensions Dimensions obtained by subtracting
the length of the non-heat-generating part l = l1 + l2 from
the total length of the heater φ10 or less l = 18 mm φ12
or less l = 22 mm
Cartridge Heater Structure Diagram
カートリッジヒーター構造図
Precautions for Use (Cartridge Heater)
カートリッジヒーターご利用上の注意
Due to the characteristics of this heater, the gap between the heater and the mounting anama greatly affects the heating performance. In other words, the smaller the gap, the higher the watt density (w/㎠), and the larger the gap, the lower the performance and lifetime.
How to calculate W/C㎡ for CHR cartridge heaters
CHRカートリッジヒーターのW/C㎡の算出方法
How to calculate the total length dimensions of a CHR cartridge heater
CHRカートリッジヒーターの全長寸法の算出方法
