COGNEX DM260/DM262 series of high-performance industrial Ethernet communication readers

Posted on by admin

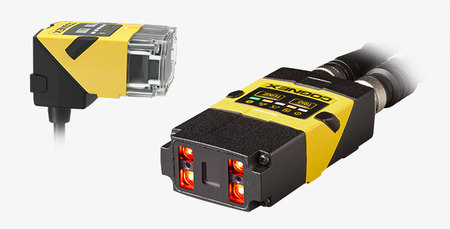

COGNEX DM260/DM262 series of high-performance industrial Ethernet communication readers

COGNEX 150/260 Series Features


DM260S/DM260Q/DM260L/DM260X/DM262Q/DM262X

For 1D linear barcodes, high-density 2D matrix codes, or direct partial marking (DPM) codes, the DataMan 150/260 Series fixed-mount image-based barcode readers offer unprecedented performance, flexibility, and ease of use.

Achieve high read rates

DataMan 150/260 series fixed-mount barcode readers achieve the highest possible read rates with a high-speed, dual-core processing engine running the latest Cognex algorithms.

1DMax comes with Hotbars and 2DMax with PowerGrid technology to decode damaged or poorly printed 1D and 2D codes, even if the code quality, printing method, or surface is marked with the code, and can even read 2D codes with no visible perimeter or quiet areas.

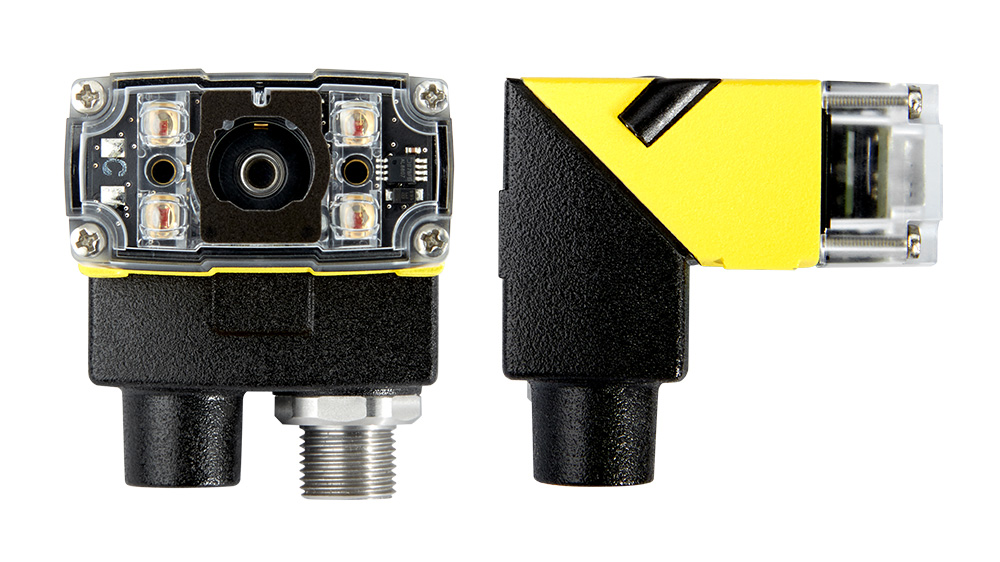

Simplify installation in tight spaces

DataMan 150/260 Series models are available in right-angle or right-angle configurations to fit the tightest spaces. Inline and ninety-degree configurations eliminate the need for re-engineering equipment, as well as complex wiring or optical paths with mirrors.

Installation in tight spaces

Modularity

Reduce installation time and cost of ownership

Modular lighting and optics make it easy to change the Dataman 150 and 260 Series reader lenses and field lighting. Not only does this reduce installation time and resources, but it also protects the barcode reader’s investment by streamlining the performance of each application and adapting to future process changes.

Ideal for Data Man 100/200 series retrofits

The DataMan 150/260 Series Readers use the same mounting configuration as the DataMan 100/200 Series ID Readers and are secured out. This can be easily retrofitted into existing DataMan 100/200 applications without the need for adapter plates, mounting holes, and wiring.

Since the standoff distance from the front of the reader to the code being read is exactly the same, the FOV achieved is the same without changing the machine layout, hardware, or applications.

2D barcode reading 2D and 1D barcode reading 1D barcode reading
Direct Part Marking (DPM) high speed low speed Multiple codes Hybrid code Difficult to read code high speed low speed Multiple codes omnidirectional directional
DataMan
150/152 QL
260/262 QL		 ■ ■ ■ ■ ■
DataMan
150/152 S
260/262 S		 ■ ■ ■ ■ ■ ■ ■ ■
DataMan
150/152 Q
260/262 Q		 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
DataMan
150/152 X
260/262 X		 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

QL model S model Q Model X model
Model QL with 1DMax and Hotbars Best-in-class 1D barcode reading technology is optimized for omnidirectional barcode reading. For reading high-quality 1D/2D codes on low-speed moving or pointer moving parts. High-performance reading of 1D/2D codes on high-speed moving parts. Includes 1DMax and ID Quick algorithms, with 2DMax available on select models. High-performance reading of challenging 1D and 2D barcodes, including DPM codes. Some X models also include PowerGrid technology.

DataMan 260 Ethernet barcode reader specifications
260 S 260 QL 260 Q 260 X 262 S 262 QL 262 Q 262 X
1D code and stacked code ■ ■ ■ ■ ■ ■ ■ ■
Omnidirectional 1D barcode ■ ■ ■ ■ ■ ■ ■ ■
2D code ■ ■ ■ ■ ■ ■
algorithm 1DMax, 2DCode 1DMax, Hotbars 1DMax, 2DMax 1DMax, 2DMax, PowerGrid 1DMax, 2DCode 1DMax, Hotbars 1DMax, 2DMax, Hotbars 1DMax, 2DMax, PowerGrid
Image resolution 752 x 480 global shutter 1280 x 960 global shutter
gather 2 fps 60 fps 2 fps 45 fps
Decode rate 2/s 45 decoding/sec 2/s 45 decoding/sec
Lens selection 6.2 mm (3-position or liquid lens, 40..200 mm), 16 mm (manual focus or liquid lens, 80 mm…). 1 m）
illuminating Modular Illumination/Field Configurable Illumination: Four independent controls, high-power LEDs (red, white, blue, IR) with bandpass filter and polarizing filter
correspondence RS-232 and Ethernet interfaces
size Straight line: 42.5 mm x 22 mm x 76.1 mm
Right angle: 42.5 mm x 48.5 mm x 49.6 mm
protection IP-65

DataMan 150 Series and USB Reader Specifications
150 S 150 QL 150 Q 150 X 152 S 152 QL 152 Q 152 X
1D code and stacked code ■ ■ ■ ■ ■ ■ ■ ■
Omnidirectional 1D barcode ■ ■ ■ ■ ■ ■ ■ ■
2D code ■ ■ ■ ■ ■ ■
algorithm 1DMax, 2DCode 1DMax, Hotbars 1DMax, 2DMax 1DMax, 2DMax, PowerGrid 1DMax, 2DCode 1DMax, Hotbars 1DMax, 2DMax 1DMax, 2DMax, PowerGrid
Image resolution 752 x 480 global shutter 1280 x 960 global shutter
gather 2 fps 60 fps 2 fps 45 fps
Decode rate 2/s 45 decoding/sec 2/s 45 decoding/sec
Lens selection 6.2 mm (3-position or liquid lens, 40..200 mm), 16 mm (manual focus or liquid lens, 80 mm…). 1 m）
illuminating Modular Illumination/Field Configurable Illumination: Four independent controls, high-power LEDs (red, white, blue, IR) with bandpass filter and polarizing filter
correspondence RS-232 and USB interfaces
size Straight line: 42.5 mm x 22 mm x 55(63) mm
Right angle: 42.5 mm x 28(36) mm x 49.6 mm
protection IP-65
