DATAMAN 8070 SERIES BARCODE VERIFIERS
High-performance code quality verification
DataMan 8070V Series features
Barcode verification is the process of scoring the quality of a barcode, and a barcode verifier captures images and generates a report to prove that the barcode meets the parameters in the industry-standardized guidelines.
DataMan 8070 Series barcode verifiers are equipped with powerful illumination options, robust grading algorithms, high-speed processing engines, and high-resolution cameras to capture and score the most difficult Direct Part Identification (DPM) codes. Combined with the simple DataMan Setup Tool software, the DataMan 8070 Series Verifier delivers detailed, repeatable results.
Multiple options for verifying the code on each surface

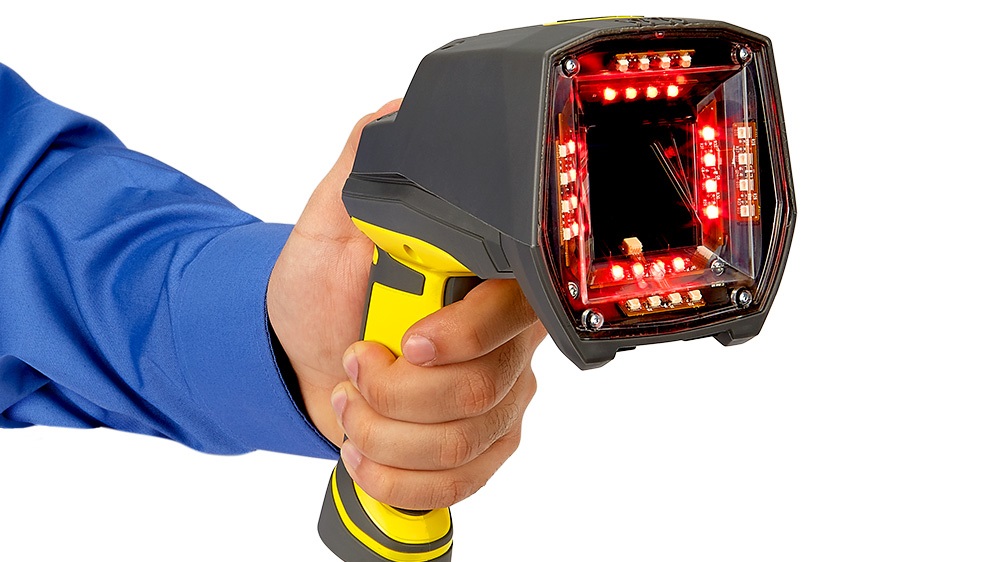

The DataMan 8070 verifier is the only one selected in accordance with the International Organization for Standardization (ISO) AIM DPM Quality Guidelines (ISO/IEC TR, 29158) 30/45/90 Degree verifier with three lighting angles. It makes it easy to illuminate code with textures, surfaces, and even highly reflective surfaces, and reliably captures and scores code images to demonstrate code quality compliance.
Fast and precise algorithms deliver reliable and repeatable results
High-speed positioning and decoding capabilities combined with robust grading algorithms provide fast, accurate, and repeatable results. Detailed reports show code compliance with industry standards and can be used to demonstrate compliance and pinpoint printing and process control issues.
Compact design for easy movement and rugged housing for better mobility
The DataMan 8070 Series Verifiers feature an ergonomic and handheld scanner-like design that makes them easy to move. The small image header gives the user better access to the code in the recesses or hard-to-reach locations. The DataMan 8070 verifier is the only verifier on the market with an IP65 rating and a rugged enclosure to withstand the harshest factory environments.
DataMan 8070 Series Specifications
Compared to other industry verifiers, the DataMan8070 series verifiers offer greater versatility and speed to verify code on every surface.
- 30-, 45-, and 90-degree lighting options
- 27 x 20 mm field of view (FOV).
- 6.0 mil minimum x-dimension
- High-speed processing engine
- 1.2 megapixel sensor
| symbol | Data Matrix |
| Field of view | 27 x 20 mm |
| Minimum X-dimension | 6.0 mil |
| Image sensors | 1.2 MP |
| illuminating | 30-, 45-, and 90-degree options |
| Type of lighting | 660 nm red LED |
| communication | USB and Ethernet |
| weight | 572 g without cable |
| size | 106 mm x 189 mm x 189 mm |
| protection | IP65 |
| Accredited (CE, UL, FCC). | CE certified |
| Comply with industry standards | ISO/IEC 15415, 15426-2, TR-29158 (AIM DPM) Calibration cards are included. * |
| Apply standards | GS1、MIL-STD 130 UID、UDI、HIBCC、ISO 15434 |
| operating system | Windows |
| Software interface | DataMan Setup Tool |
*The DataMan 8070 Verifier includes a basic calibration card with a Data Matrix symbol. Calibration cards with the conformance symbol can be purchased separately. The industry will decide what type of calibration card is required. The calibration card is valid for two years from the date of issue.
DataMan 8070 series symbols
DataMan 8070 Series Verifiers make it easy to inspect and score Direct Partial Identification (DPM) Data Matrix codes on textured, curved, and even highly reflective surfaces.
2D matrix code for encoding large amounts of data in a confined space. Dataman 8070 Series SoftwareDataMan 8070 Series Verifiers are equipped with the latest technology and software to score even the toughest codes quickly and reliably. High-speed positioning and decoding capabilities combined with robust grading algorithms provide fast, accurate, and repeatable results.
The DataMan setup tool calculates an overall level based on multiple quality parameters such as symbol contrast, modulation, pattern corruption, decodingability, and more. Detailed results show code compliance with industry standards, and auto-generated reports can be used to demonstrate compliance and pinpoint printing and process control issues.
Dataman 8070 Series Accessories

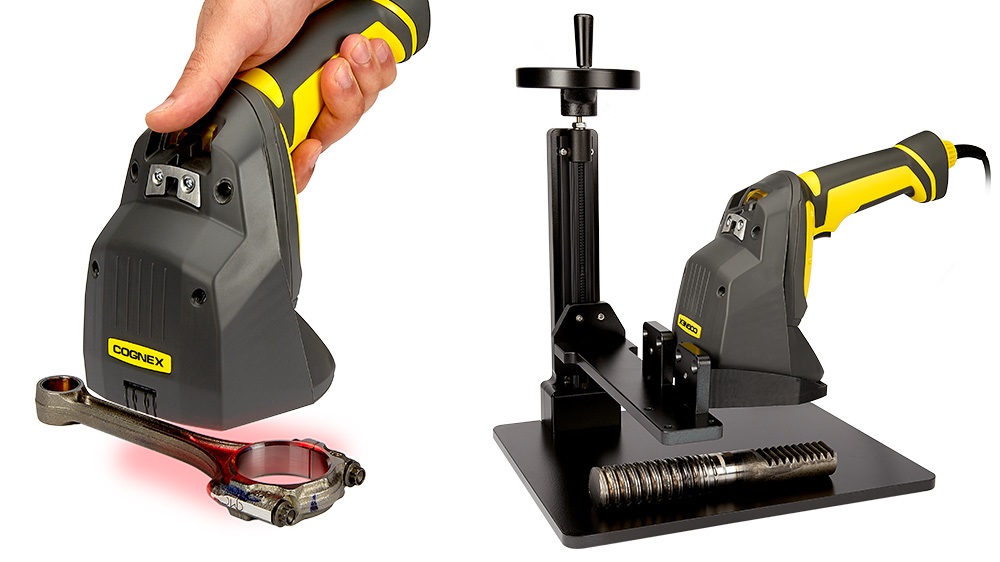

Standoff
A removable standoffaccessory ensures a fixed working distance so the verifier remains in focus.
Verifier Stand
An optional standaccessory with adjustable height provides added flexibility when working withoddly shaped parts.
CalibrationCard
A basic calibration cardwith a Data Matrix symbol is included with the DataMan 8072 verifier. Acalibration card with conformance symbols is available to purchase separately. The industry will dictate the type of calibration card needed. Cards expire twoyears from the issue date.
DataMan 8070 Series Applications
In the barcode data chain, there are many possibilities for interruption – whether it’s due to malformed data, print quality issues, or poorly performing barcode readers. Many industries are facing a surge in demand for code quality control. Here are some examples of validation applications.
Pharmaceuticals and medical devices
The Unique Device Identification (UDI) initiative by 2020 requires every manufacturer that produces reusable or reprocessed devices (surgical instruments, operating room accessories, implants) to place a DPM code on the device.
Food and beverages
The increased focus on quality, health and disease means that products are tracked more frequently from farm to fork. While barcode legislation is not imminent, it is expected that regulations will be imminent.
Consumer electronics
Miniaturization of electronic parts, global supply chains, and component failure risks requires the use of DPM codes that are clearly marked at the supplier and can be read on the final assembly.
Retail distribution
Retailer requirements, potential chargebacks, and consumer satisfaction make label-based barcode quality assurance a necessity for sorting and shipping.
