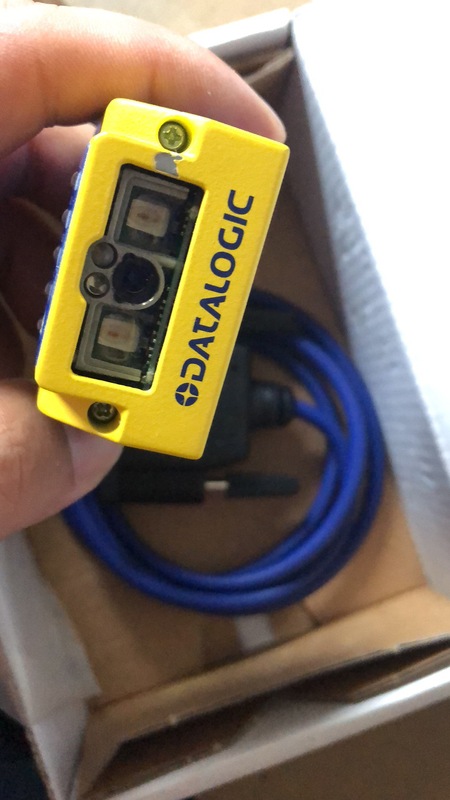

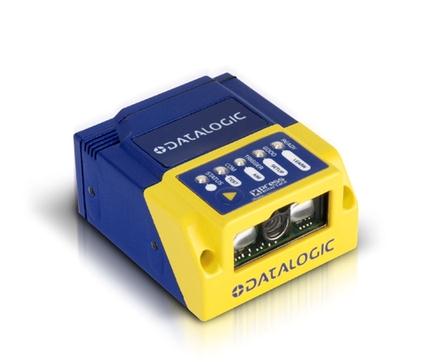

Datalogic matrix210 series 210-213-110 fixed 2D barcode reader

Matrix 210N™ Datalogic is Datalogic’s latest barcode reader with excellent reading performance in a compact housing and integrated Ethernet and PROFINET.
Matrix 210N™ In addition to the WVGA image sensor, which can capture up to 60 frames per second, and the built-in flexible and powerful illuminator, it achieves excellent DPM code (Direct Part Marking) reading ability.
Equipped with an unrivaled decoding library running on a high-speed hardware platform, the reader delivers superior reading reliability and amazing decoding speeds, supporting high system throughput for a significant increase in productivity.
In addition, the reader is equipped with an on-board Ethernet port for efficient transmission of reading data and image capture. Captures can be stored on the device or easily uploaded to an external computer or server for archiving and offline analysis.
The reader’s compact size, with a straight or right-angle reading window and an electronic zoom option, not only provides perfect contact reading, but also easily integrates into tight spaces.
Equipped with X-PRESS &trade with 5 LED bar charts; The interface, as well as a multi-function key that provides quick access to aiming, setup, auto-learning, and test mode, make installation and maintenance extremely simple.
Employing a patented ” Green dot” Technology (which projects a green dot on the reading target) provides intuitive real-time read feedback without the need for any additional monitoring software.

Features/Benefits:

• Integrated Ethernet, PROFINET, EtherNet/IP and interfaces
• Dynamically focused liquid lenses
• Excellent DPM code reading performance
• On-board image storage
• Outstanding DPM code, 1D code, 2D code decoding ability
• Straight and right-angle reading windows for smart installation
• ID-NET™ Reader clusters/network connections
• Ultra-fast image acquisition to meet the application needs of high-speed production lines
• Industrial protection class: ESD-safe, YAG and IP65

apply

electron

• PCB board tracking
• Electronic product tracking

Pharmaceutical and chemical industry

• Pharmaceutical production and packaging
• Traceability of the supply chain

OEM

• Chemical & Biomedical Analysis Machines
• Access control system

Self-Service Systems (AT M, Kiosks)

• Printing and application systems
• Document processing
