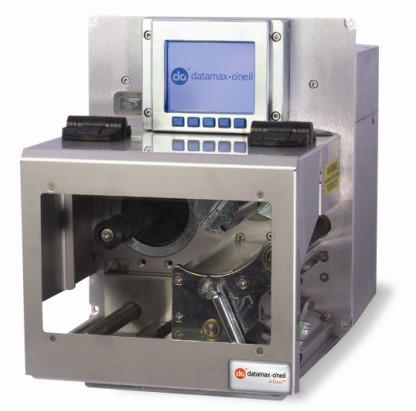

Datamax A-4212/A-4310 Labeler Print Engine

Product Name: DataMax A-4310
Print Engine
Details:
Reliable, high-performance, rugged
The A-Class Mark II is a best-in-class print engine for demanding print and paste applications with the highest levels of performance and reliability. A-Class is known in the industry for its unique stainless steel covers, which are ideal for the specialized needs of harsh or corrosive environments. The latest modular design facilitates on-demand maintenance, significantly reducing downtime for critical, mission-critical applications in stringent multi-shifts. With industry-standard installation and intuitive menu navigation, the A-Class is the print engine of choice for automated print and paste applications.
Specifications at a glance:
Direct Thermal, Thermal Transfer (optional)
Left- or right-handed models
Maximum print width 6.614″ [168 mm] Maximum
print speed 12 ips [304 mm/s].
203 dpi [8 dots/mm], 300 dpi [12 dots/mm], 406 dpi [16 dots/mm], or 600 dpi [24 dots/mm] resolution
RS232 serial, parallel bidirectional, wired Ethernet LAN 10/100, USB 2.0 compatible, GPIO labeler card
The A-Class has a number of outstanding features that will benefit you in many ways. Here’s a quick summary of the features and benefits of the A-Class print engine.
Stainless steel enclosure protects your printer for continuous use
in harsh and extreme environments Printer language emulation enables you to smoothly integrate A-Class into your existing competitive environment
Large image display for easy navigation, advanced setup, and simplified operator use
Optional remote display with 6′ Cables to add
IntelliSEAQ if there’s an issue with location? Automatic printhead diagnostics tool makes it easy for users to understand printhead performance and history
Optional pulley expands tension for improved print accuracy and quality
USB/SDIO provides flexibility for expanded memory and USB accessories (keyboard and flash drives)
Modular design for easy field repair or upgrade; Most operations can be done on-site, minimizing downtime or loss of productivity.
Deliver a fully integrated UHF/HF RFID solution
to expand your printing capabilities

Product Name: DataMax A-4212
Print Engine
Details:
Reliable, high-performance, rugged
The A-Class Mark II is a best-in-class print engine for demanding print and paste applications with the highest levels of performance and reliability. A-Class is known in the industry for its unique stainless steel covers, which are ideal for the specialized needs of harsh or corrosive environments. The latest modular design facilitates on-demand maintenance, significantly reducing downtime for critical, mission-critical applications in stringent multi-shifts. With industry-standard installation and intuitive menu navigation, the A-Class is the print engine of choice for automated print and paste applications.

Specifications at a glance:
Direct Thermal, Thermal Transfer (optional)
Left- or right-handed models
Maximum print width 6.614″ [168 mm] Maximum
print speed 12 ips [304 mm/s].
203 dpi [8 dots/mm], 300 dpi [12 dots/mm], 406 dpi [16 dots/mm], or 600 dpi [24 dots/mm] resolution
RS232 serial, parallel bidirectional, wired Ethernet LAN 10/100, USB 2.0 compatible, GPIO labeler card
The A-Class has a number of outstanding features that will benefit you in many ways. Here’s a quick summary of the features and benefits of the A-Class print engine.
Stainless steel enclosure protects your printer for continuous use
in harsh and extreme environments Printer language emulation enables you to smoothly integrate A-Class into your existing competitive environment
Large image display for easy navigation, advanced setup, and simplified operator use
Optional remote display with 6′ Cables to add
IntelliSEAQ if there’s an issue with location? Automatic printhead diagnostics tool makes it easy for users to understand printhead performance and history
Optional pulley expands tension for improved print accuracy and quality
USB/SDIO provides flexibility for expanded memory and USB accessories (keyboard and flash drives)
Modular design for easy field repair or upgrade; Most operations can be done on-site, minimizing downtime or loss of productivity.
Offering a fully integrated UHF/HF RFID solution

Expand your printing capabilities
and printer options extend the capabilities of standard products. Options can be factory-installed in the printer or ordered separately and installed as an upgrade in the field. The options available for A-Class products are described below:
The thermal transfer option supports either inner or outer carbon ribbons
for thermal imaging. This option is factory-installed.
Press pulleys
provide better control of large consumable rolls, resulting in improved print accuracy and quality. This option is factory-installed.
Remote display
assistive front panel display with 6′ cable to show hard-to-reach locations.
RFID:
With this option, A-Class can code a wide range of EPC Class 1/Gen 2 tags.
USB Host/SDIO expands
memory and adds support for a wide range of USB host devices, such as keyboards or flash memory cards.
Ribbon Saver saves ribbon usage and reduces ribbon costs
with this factory-installed option:
Built-in wireless LAN (DMXrfNET II),
high-performance 802.11 b/g communication interface, wireless LAN
cutter
The industry’s only knife cutter for print engines that automatically cuts consumables
to complete your printing solution
Datamax-O’ Neil printer solutions offer simple software setup, navigation, and customization for individual requirements. Datamax-O' Neil printers, combined with optional remote management and software tools, minimize human intervention and automate many of the tasks that would normally require operators and technicians.
DMXConfig
DMX Config is a Windows-based printer setup tool that runs locally on your personal computer and allows you to save settings and configurations for multiple printers.
DMX NetManagerA
network management tool that allows users to remotely view status, monitor, and manage printers The
Embedded Web Web Configurator
configures printers using the printer’s built-in web pages over a network connection via a web browser.
Emulation language allows
for easy replacement of old printers without having to redesign existing infrastructure
Printer DriverPrinter
driver can be used with Datamax-O’ Neil printers are transparently connected for optimal performance.
Extend Printer LifeDatamax-O
‘ for use with A-Class; Neil printing filaments offer high performance and durability for extreme environments in industries such as food processing, industrial, and chemical industries. Please click on the consumables section to learn more.
Datamax-O' Neil offers a wide range of world-class quality printing supplies for a variety of industries, including healthcare, retail, manufacturing, and transportation. Datamax-O' Neil certified consumables are designed and tested to work with your Datamax-O’ Neil printers achieve optimal performance and maximize throughput. For more information on consumables and custom services, please visit our Consumables section.
Industry solutions
built for youA-Class print engines are designed for high-volume, mission-critical applications across a wide range of industries and applications.
Industrial/manufacturing
manufacturers use A-Class printers with automated label printers and labelers for cartons, boxes, and pallets. Datamax-O’Neil offers stock labels, RFID smart labels (UHF and HF) and thermal transfer ribbons that are reliable solutions for demanding and extreme environments in industrial manufacturing.
Food processing
, regardless of the environment, Datamax-O’ Neil’s certified consumables work with world-class A-Class print engines to withstand the temperatures and materials used in the food processing industry.
