Features

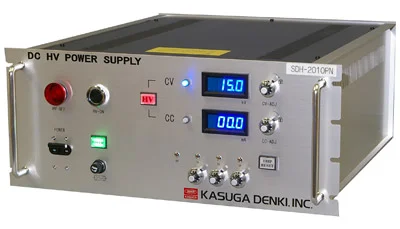

This is a DC high voltage stabilized power supply specially developed for electrostatic application equipment. It is designed to be resistant to load fluctuations and to provide stable output in order to be used as a high voltage power supply for pinning devices , electret devices (charge injection devices ), charging devices , etc. There are unipolar types (positive or negative) and bipolar types (positive and negative switchable) that can be selected according to the application.
The high-voltage transformer is a dry type, so there is no need to manage high-voltage insulating oil.
Pinning Device
Electret Device
Charging Device
Specifications
SDH Series Specifications
Model Maximum rating Ripple content
(%) Power supply voltage fluctuation rate
(% or less) External dimensions
Output voltage
(kV) Output current
(mA) W×D×H
(mm) Mass
(kg)
SDH-1010PN 10 10 0.03 0.1 480×500×199 20
SDH-1015PN 10 15 0.03 0.1 480×500×199 20
SDH-1505PN 15 5 0.03 0.1 480×500×199 20
SDH-1510PN 15 10 0.03 0.1 480×500×199 20
SDH-1520PN 15 20 0.03 0.1 480×500×199 20
SDH-2005PN 20 5 0.03 0.1 480×500×199 20
SDH-2010PN 20 10 0.03 0.1 480×500×199 20
SDH-2015PN 20 15 0.03 0.1 480×500×199 20
SDH-2020PN 20 20 0.05 0.1 480×500×199 20
SDH-2030PN 20 30 0.05 0.1 480×500×249 twenty five
SDH-20200PN 20 200 0.5 0.1 Specifications to be discussed –
SDH-20300PN 20 300 0.5 0.1 Specifications to be discussed –
SDH-3010PN 30 10 0.03 0.1 480×500×249 twenty five
SDH-3020PN 30 20 0.05 0.1 480×500×249 twenty five
SDH-3030PN 30 30 0.05 0.1 480×500×249 twenty five
SDH-3050PN 30 50 0.1 0.1 Specifications to be discussed –
SDH-4050PN 40 50 0.1 0.1 480×500×249 twenty five
SDH-5005PN 50 5 0.03 0.1 Specifications to be discussed –
SDH-5020PN 50 20 0.1 0.1 Specifications to be discussed –
SDH-5030PN 50 30 0.1 0.1 Specifications to be discussed –
SDH Series Common Specifications
Input power: 1φ 50/60Hz 200V
Control method: Constant voltage/constant current switching method
Alarm circuit: Overvoltage, overcurrent, spark detection
DH Series Specifications
Model Maximum rating Ripple content
(%) Power supply voltage fluctuation rate
(% or less) External dimensions
Rack Type Wall-mounted type
Output voltage
(kV) Output current
(mA) W×D×H
(mm) Mass
(kg) W×D×H
(mm) Mass
(kg)
DH-1010PN 10 10 1 0.1 480×500×199 20 560×250×600 40
DH-1020PN 10 20 1 0.1 480×500×199 20 560×250×600 40
DH-2010PN 20 10 1 0.1 480×500×199 20 560×250×600 40
DH-2020PN 20 20 1 0.1 480×500×199 20 560×250×600 40
DH-3005PN 30 5 1 0.1 480×500×249 twenty five 560×250×600 40
DH-3010PN 30 10 1 0.1 480×500×249 twenty five 560×250×600 40
DH-3020PN 30 20 1 0.1 480×500×249 twenty five 560×250×600 40
DH-5005PN 50 5 1 0.1 480×500×249 twenty five 560×250×600 40
DH-5010PN 50 10 1 0.1 480×500×249 twenty five 560×250×600 40
DH series common specifications
Input power: 1φ 50/60Hz 200V
Control method: Constant voltage method
Alarm circuit: Overcurrent
