1

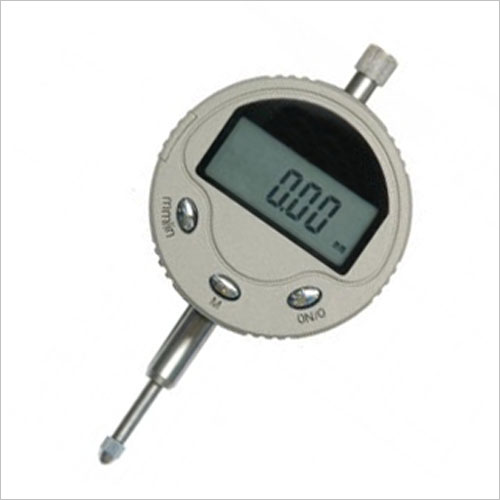

Model: 0-50mm series
Name: Digital Dial Indicator: 0-50mm, Accuracy 0.02mm, Can be automatically adjusted to zero. Digital Dial Indicator, Digital Indicator Table
Digital display percentage table. It can be automatically adjusted to zero.
Measuring range: 0-50mm
Measuring force: 2.2N
Error: 0.02mm
Clearing at any position (ON/O) Metric
and imperial conversion (mm/in) Record
the large and small values during the continuous measurement process.
2
Model: 0-50mm
Name: Digital Dial Indicator (6.5mm): 0-50mm, Accuracy 0.003-0.01 Digital Dial Indicator, Digital Indicator Table
Dial indicator.
Measuring range: 0-50mm
Measuring force: 2.2N
Error: 0.003-0.01mm, depending on the range.
Zeroing at any position
Metric imperial conversion (mm/in) Records
large and small values during continuous measurement.
3
Model: 0-20mm
Name: Vertical digital dial indicator: (angle vertical, degree of convenience), 0-20mm, accuracy 0.03. Digital display dial indicator, digital display indicator table
This
one is a vertical angle probe, the purpose is to facilitate your reading, and some industries will be suitable for this one.
Zeroing: Clearing at any position
Unit: Metric Metric Conversion (mm/in)
Recording: Recording large and small values during continuous measurement.
Measuring Range: 0-20mm
Measuring Force: ≤2.2N
Error: ±0.03mm
B: 73mm
C: 115mm
It is widely used for automotive safety glass production inspection
4
Model: 0-100mm
Name: Digital Dial Indicator: 0-100mm, Accuracy 0.02mm, Square Shell. Digital Dial Indicator, Digital Indicator Table
This one is a rectangular case because there are industries that are more suitable for this shape of watch, so if you need it, you can buy this series.
Measuring Range: 0-100mm
Measuring Force: ≤3.2N
Error: ±0.02mm
Zeroing: Clearing at any position
Unit: Metric and Imperial Conversion (mm/in) Recording
: Recording large and small values during continuous measurement.
5
Model: 100-150mm
Name: Digital Dial Indicator: Large Range, 0-150mm, Accuracy 6-20um
A large number of courses. Digital Dial Indicator
Measuring Range: 0-150mm
Resolution: 0.01mm, 0.001mm
Accuracy: 6-20um
Aluminum shell, dial can be rotated more than 270 degrees Zero in
any position
Small value, large value, difference is stored
6
Model: Resolution 0.5um
Name: Digital Dial Table: Digital Dial Table, 10,000 Table
Resolution 0.5um. Digital display 10,000 point indicator:
1.This is a high-precision dial indicator, commonly known as 10,000 tables.
2. The resolution is 0.5um. It is not 0.5 accuracy, but 0.0015mm.
Range: 0-60.9mm
Resolution: 0.0005mm
Accuracy: 0.0015mm
7
Model: 0-50mm
Name: Mechanical Dial Indicator: 0-50mm, Accuracy 14-35um.( Six drills, shockproof) mechanical dial indicator, mechanical dial indicator
Mechanical dial indicator.
1. Ordinary model, 0-50mm specifications are available.
2. Shockproof, 0-10mm specification is available. (Drill bit six drills, bidirectional)
Measuring range: 0-50mm
Indexing value: 0.01mm
Accuracy: 14-35um
8
Model: 0-3mm end face mechanical dial gauge
Name: Accuracy 14um mechanical dial gauge, mechanical dial gauge
This is the dial gauge of the end face, mechanical.
It is also to make it easier for you to read the data.
Measuring range: 0-3mm
Indexing value: 0.01mm
Accuracy: 14um
9
Model: 0-5mm (commonly used 1mm) mechanical dial gauge
Name: 0-5mm, resolution 0.001mm, accuracy 5um mechanical dial gauge, mechanical dial gauge
This is a classic mechanical dial indicator.
Measuring range: 0-5mm
Indexing value: 0.001mm
Accuracy: 5-9um
10
Model: 0-0.8mm, 0-0.2mm mechanical lever dial gauge, lever dial gauge
Name: Leverage dial gauge, leverage dial gauge
These 2 models are mechanical leverage tables.
The specifications are unified in China,
Range: 0-0.8mm, 0-0.2mm (1000 minutes)
Resolution: 0.01, 0.002mm
Accuracy: 5-10um
11
Model: 0-0.5mm Leverage Dial Indicator
Name: (Digital Display) 0-0.5mm, Accuracy 0.03mm. Lever Dial Indicator, Leverage Dial Indicator
Leverage percentage table displayed by numbers.
Measuring range: 0-0.5mm
Error: ±0.03mm
Zeroing: Clearing at any position
Unit: Metric and imperial conversion (mm/in)
Recording: Recording large and small values during continuous measurement.
The display section can be rotated 350 degrees for easy reading.
12
Model: 50-160mm (mechanical) inner diameter dial indicator, inner diameter dial indicator
Name: 6-450mm, Accuracy 5-18um Inner Dial Indicator, Internal Dial Indicator
This is a dial indicator that specializes in detecting the inner diameter, dial indicator.
Our company can customize non-standard inner diameter tables for users with a measurement range of less than 1.2m and a depth of less than 3m, as well as for special occasions such as shallow holes.
Measuring range:
50-160mm
18-35mm
35-50mm
50-100mm
100-250mm
250-450mm
6-10mm
10-18mm
Resolution: 0.01, 0.001mm
Accuracy: 5-18um
13
Model: 50-100mm (digital display) inner diameter dial indicator, dial indicator
Name: 10-450mm, Accuracy 5-18um Inner Dial Indicator, Inner Dial Indicator
This inner diameter gauge is digitally displayed.
More sizes, can be customized according to users.
Measuring Range:
50-100mm
50-160mm
10-18mm
100-250mm
18-35mm
250-450mm
35-50mm
Resolution: 0.01, 0.001mm
Accuracy: 5-18um
