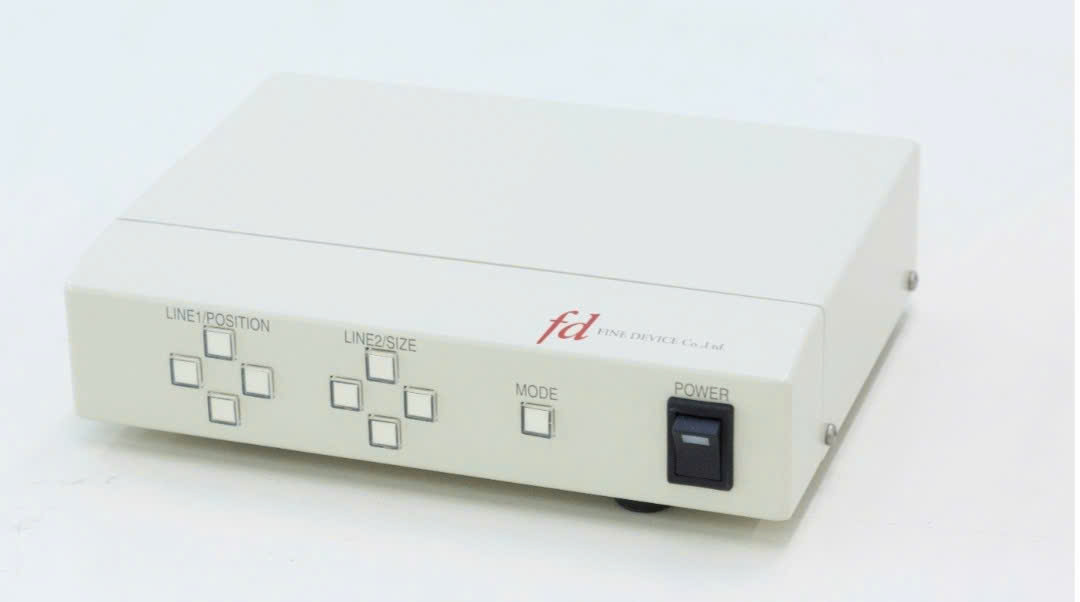

Horizontal and vertical lines (up to two lines each) are superimposed on images from TV cameras, CCD cameras, etc., to facilitate positioning. The line type can be switched between straight, dotted, and circular displays. By adjusting the round diameter to match the laser diameter, the welding width and trajectory image are clearer.
We also support the sale of only the built-in board.
Main Specifications
Input Signal NTSC compliant standard video signal
Output signal NTSC compliant video signal with horizontal and vertical line insertion
Input/Output Connectors BNC Connector
Line Movement Horizontal from the top of the screen to the bottom of the screen
impedance 75Ω
Insertion Line Brightness White 100% semi-fixed (can be changed depending on the internal volume)
power DC5V 1.0A
Dimensions W175×H48×D130mm
