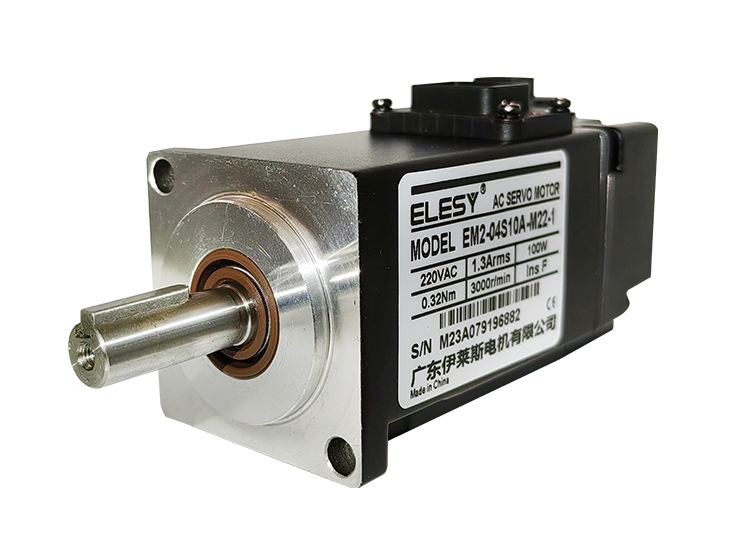

EM2-04 series servo motor Elesy

Sever Motor Model EM2-04S
10A
Power Supply Voltage V 220
Rated Output Power W 100
Rated Torque N.m 0.32
Maximum Torque N.m 0.96
Rated Current Arms 1.3
Maximum Current Arms 3.9
Rated Speed r/min 3000
Maximum Speed r/min 4500
Moment of Inertia ×10-4kg.㎡ 0.046（0.048）
Maxinum radial load N 54
Maxinum radial load N 78
Brake Rated Voltage V 24
Brake Rated Power W 6.4
Brake Holding Torque N.m 0.32
Encoder Standard Magnetic Encoder
Insulation Class F
Ambient Temperature 0～+40℃(No Freezing)
Ambient Humidity 20~80%RH（Non-condensing)
Enclosure IP65(Except for Shaft Opening and Connectors）
