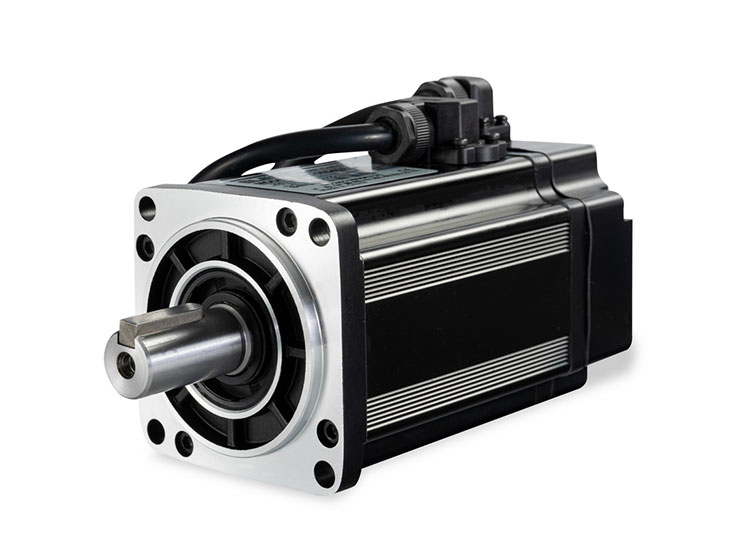

EM2-06 series servo motor Elesy

Sever Motor Model EM2-06S
40A
Rated Voltage V 220
Rated Output Power W 400
Rated Torque N.m 1.27
Maximum torque N.m 3.81
Rated Current Arms 2.9
Maximum Current Arms 8.7
Torque Constant r/min 3000
Rated Speed r/min 4500
Maximum Speed ×10-4kg.㎡ 0.33（0.40）
Maxinum radial load N 45
Maxinum radial load N 209
Brake Rated Voltage V 24
Brake Rated Power W 7.2
Brake Holding Toraue N.m 1.3
Encoder Opitions 5120000 Incremental Encoder
Wire-saving Encoder
Absolute Encoder
Rotary Transformer
Insulation Class F
Ambient temperature 0 to+40℃（NO Freezing）
Ambient Humidity 20 to 80%RH(Non-condensing)
Enclosure IP65(Except for Shaft Opening and Connectors)
