Features
A cleaning lamp is now installed to notify you when it is time for cleaning, making it easy to know when maintenance is required.
The front panel can be removed with one touch, making maintenance easy.
The discharge electrode needle is made of a special alloy that generates little dust, allowing it to be used safely in clean environments.
The wide nozzle allows for static elimination over a wide area.
The uniquely designed air deflector enables high-speed static elimination over long distances.
specification
Model LFA-03B2 LFA-05B
Ion generation method AC corona discharge type
discharge electrode needle Low dust-emission special alloy
Ion balance * Within ±10V (factory default)
Fan Speed Stepless variable
Maximum air volume 2.5 (50Hz) /
2.9 (60Hz) m³/min 2.5 (50Hz) /
2.9 (60Hz) m³/min×2FAN
Maximum wind speed * 3.1 (50Hz) /
3.6 (60Hz) m/sec 2.0 (50Hz) /
2.5 (60Hz) m/sec
Alarms and Safety Devices Cleaning warning, high voltage abnormality warning LED turns red,
power off when front panel is removed
Amount of ozone generated * 0.02ppm or less
environment Temperature: 0 to 40°C, humidity: 80% or less (no condensation)
Power Input AC100V 50 or 60Hz (switchable)
power cable Approx. 2.5m (power cable with ground terminal)
Power consumption Approximately 35VA Approximately 60VA
mass Approximately 7kg Approximately 9.5kg
*Measurement distance 300mm
Static electricity removal characteristics
Dimensions and names of each part (dimension unit [mm])

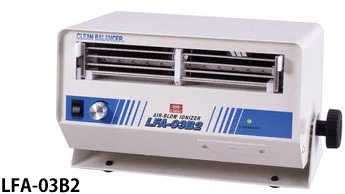

LFA-03B2
LFA-05B
