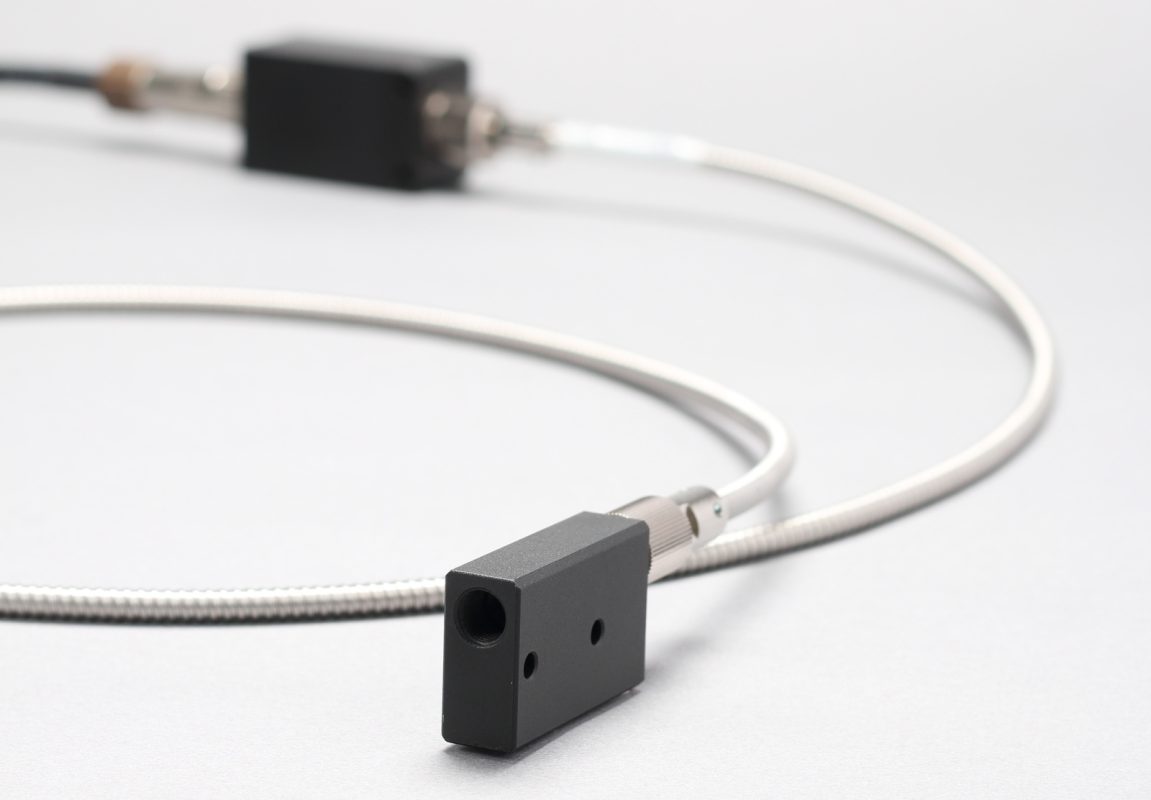

Fiber type infrared thermometers FTKX Series
Fiber type infrared thermometers FTKX Series image
Measuring range 100 °C to 2000°C
You can customize and select from more than 140 patterns.
Measurrable
The world’s fastest response time
Easy adjustment
Usable with small targets
Heat resistance up to 150℃
Catalog downloadManual download
Type Measuring range Wave length Measuring distance Target-size Response time
FTKX-T 100～2000℃ 1.95～2.5μm 25～1000mm φ0.15～φ18mm 0.001s～
FTKX-P 220～2000℃ 0.8～1.6μm 25～1000mm φ0.15～φ18mm 0.001s～
FTKX-A 500～2000℃ 0.8～1.0μm 25～1000mm φ0.15～φ18mm 0.001s～
eatures
You can customize and select from more than 140 patterns.
You can choice a sensor head, a fiber cable and a temperature converter to meet your requirements.
Measurrable
Using the quartz permeable wavelength, it allows measurement through glass.
The world’s fastest response time
The world’s fastest response time of 1ms(0.001sec) allows detection of rapid temperature changes. The sensor head never misses sudden temperature changes.
Easy adjustment
The FTK series is easy to position. This series of products uses the optical coaxial LED sights. It can measure the target precisely.
Usable with small targets
Spot size;φ0.15 mm ～
Heat resistance up to 150℃
The sensor head and the fiber cable are heat resistance up to 150℃ without being affected by noise.
