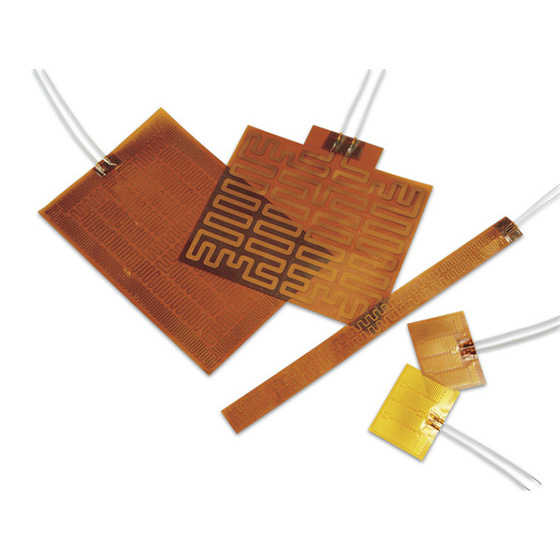

Film heater Kawai

Thickness thinner than .02″　/　0.4mm
Dimensions (mm) 10 x 20 to 300 x 400
(inch) 2/5 x 4/5 to 12 x 15
Operating Temp.* -150 to 570ºF / -100 to 300ºC
Max. Watt Density* 19 W/in2　/　3.0 W/cm2
Max. Voltage (V) 240
Max. Resistance Density –
Wattage Tolerance +/-10%
Outer Dimension Tolerance –
Insulation Resistance (MΩ/DC V)** More than 1000/500
High Pot Test (V/min.) / (V/sec.) 1500 / 1800 (5 mA)
* Depending on heater specifications.
