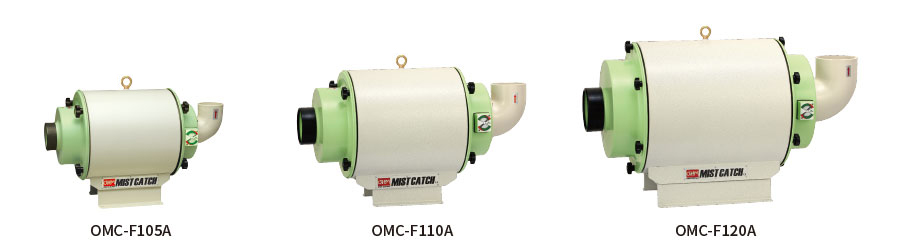

Filter Expression OMC-F105A /OMC-F110A /OMC-F120A OHM

Model
OMC-F105A
OMC-F110A
OMC-F120A
Maximum airflow
4.2/5m3/min
8/10m3/min
18/20m3/min
Collection efficiency
99.8% or more (gravimetric method)
Rated voltage (50/60Hz)
Three-phase AC200V
Motor Rated Output
0.3kW（2P）
0.4kW（2P）
1.12kW（2P）
Rated current consumption *1
1.6/1.6A or less
2.0/2.0A or less
4.7/4.5A or less
Ambient temperature
0～＋40℃
Ambient humidity
85% RH or less, no condensation
Noise (1m on the aircraft side)
Approx. 57dB(A)
Approx. 63dB(A)
Approx. 66dB(A)
Maximum suction temperature
＋50℃
suitability
Machinery Directive
EN ISO/12100 EN60204-1
Environmentally friendly
RoHS2
Inlet diameter
Ø100mm
Ø125mm
Ø150mm
Body weight
25kg
30kg
50kg
Drain outlet
Ø19 pipe
