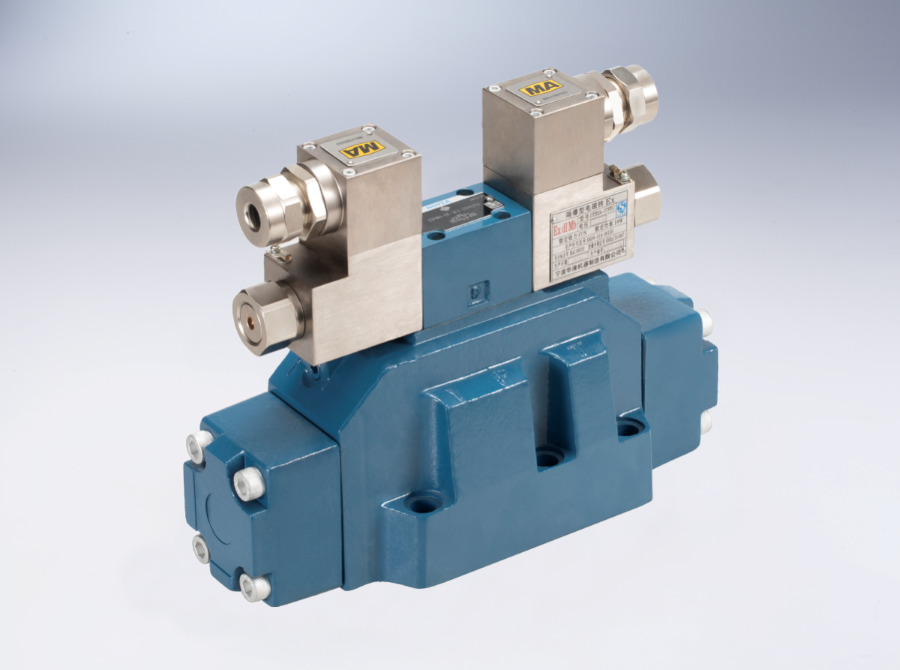

| specification | 03 | 04 | 06 | 10 | ||||||
| GDFWH | HGDFWH | GDFWH | HGDFWH | GDFWH | HGDFWH | GDFWH | HGDFWH | |||
| Maximum working pressure (MPa) | Port P, A, B | 28 | 35 | 28 | 35 | 28 | 35 | 28 | 35 | |
| Port T | Control oil leakage | 10 | ||||||||
| Control oil spills | 25 | |||||||||
| Port Y | 10 | |||||||||
| Maximum flow rate (L/min) | 160 | 300 | 650 | 1100 | ||||||
| Minimum Control Pressure (MPa) | Spring return | 1.0 | 1.2 | 1.3 | 0.8 | |||||
| Hydraulic alignment | – | 1.2 | 1.8 | 0.8 | ||||||
| Maximum Control Pressure (MPa) | 25 | |||||||||
| Working medium | mineral hydraulic fluids; Phosphate ester hydraulic fluid | |||||||||
| Medium oil temperature range (°C) | -20~70 | |||||||||
| Media viscosity range (mm²/s) | 2.8~380 | |||||||||
| Operating Voltage1) ( V ) | direct current | 24 | ||||||||
| Exchange 2) | 127/50Hz, 220/50Hz | |||||||||
| Solenoid power3) (W) | 18 | |||||||||
| Ingress protection | IP65 | |||||||||
| Degree of contamination | The maximum allowable contamination degree of the oil is according to the NAS1638 level 9, and the minimum filtration accuracy of the recommended filter is β10 ≥75. | |||||||||
1) There is a corresponding relationship between the working voltage and the flameproof category, see E.2.1 “Product Introduction” for details.
2) When AC power supply, the electromagnet is embedded with a rectifier circuit, and no external rectifier device is required.
3) The power supply is capable of providing instantaneous power of 18W.
