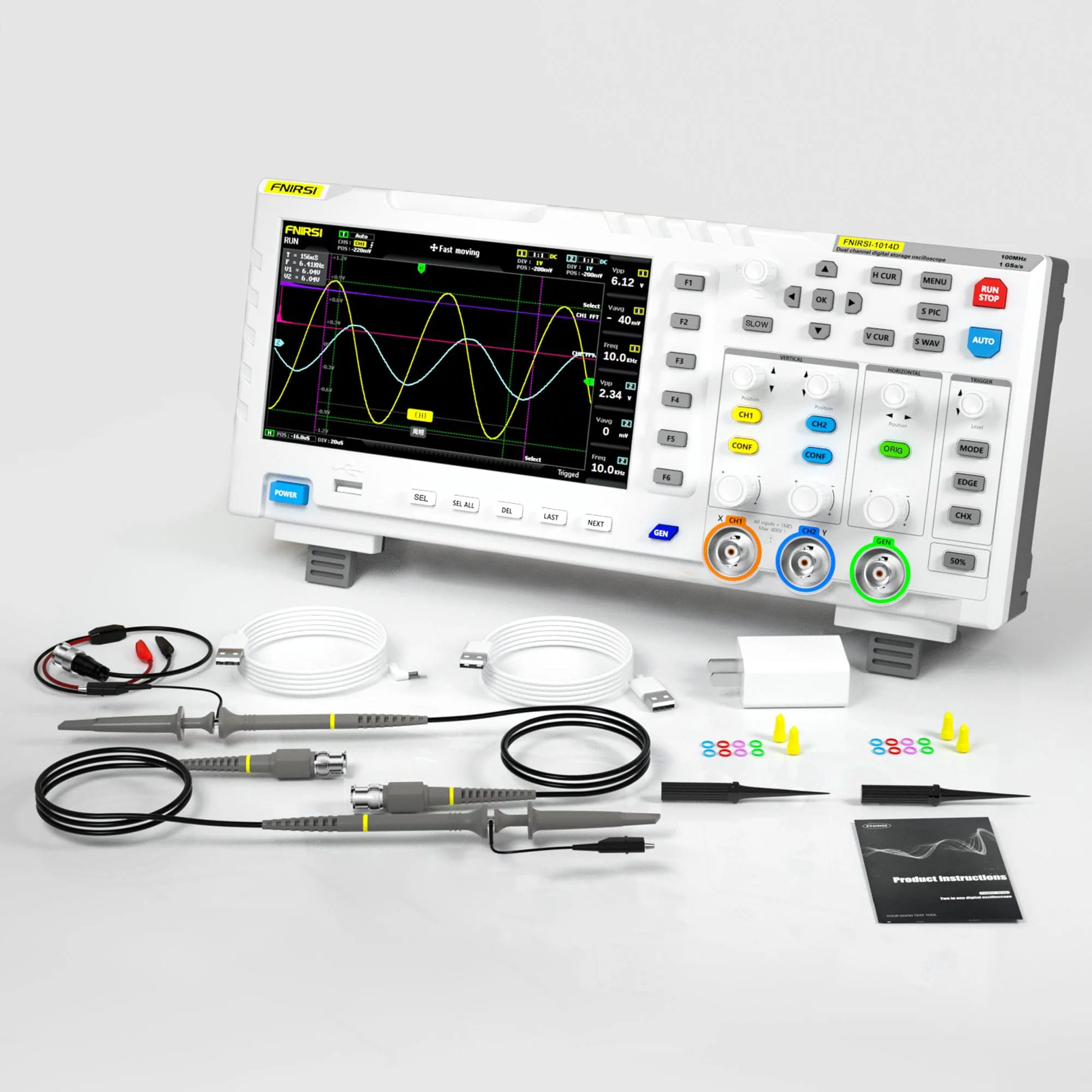

Features:
- Dual Channel
- 2 in 1: Digital Oscilloscope + DDS Function Signal Generator
- 1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
- Complete trigger function (single/normal/automatic).
- Capable of storing up to 1000 customized chopping signals.
- high-voltage protection module.
- One-button AUTO and adaptive trigger (25%, 50%, 75%).
- 7-inch 800*480 resolution high-definition LCD screen.
- Powerful Waveform Picture Manager.
- One-key Screenshot and Saving.
- Cursor measurement function.
- USB Picture Export
- Lissajous Graphic Display & FFT Viewing.
- Ideal for both periodic analog and aperiodic digital signals.
Digital Oscilloscope Specification:
Brand
FNIRSI
Model
1014D
Channels
2
Material
High-quality ABS
Analog Bandwidth
100MHz * 2
Sampling Rate
1GSa/s
Vertical Sensitivity
50mV/div ~ 500V/div
Horizontal Timebase
5OS/div ~ 10nS/div
Storage Depth
240Kbit
Input Resistance
1MΩ
ADC Precision
8bits
Rise Time
< 3nS
Coupling
AC/DC
Trigger Modes
Auto / Normal / Single
Trigger Edge
Rising edge / Falling edge
External Trigger Voltage
0~40 V
Maximum Test Voltage:
40V (lX probe), 400V (10X probe)
Waveform Manager
Support (1000 pic + 1000 waveform)
USB Export
Support
Capture Output
Support
Power Supply
5V 2A/3A/4A
Frequency Precision
±0.01%
Roll Mode
Support
One-button AUTO
Support
Display
7-inch 800*480 resolution color TFT LCD
Dimensions
310mm * 145mm * 70mm
Parameter
12 kinds in total
Generator
14 kinds in total
Signal Generator Specification:
Channels
1
Waveform Type
14 standard signals (@ 2.5vpp) + 1 customizable signal (Only the Frequency is adjustable)
Capture Output
Supprot
Sine Wave Max Frequency
10MHz
Other Wave Max Frequency
2MHz
Customize Signal Max Frequency
1MHz
Frequency Resolution
1Hz
