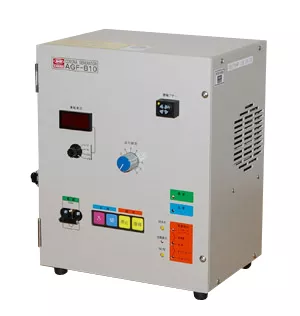

The high frequency power supply consists of an oscillator that generates high frequency waves and a high voltage transformer that generates high voltage, and the output of this is connected to the processing station for use.
Specifications
Model option Maximum power output
(kW) Frequency
(kHz) Power capacity
(kVA) Oscillator dimensions
W×D×H (mm) Mass of oscillator
(kg) High voltage transformer dimensions
W×D×H (mm) High voltage transformer mass
(kg)
AGF-B10 S,PT 1.0 15–30 1.7 250 x 180 x 300 11.0 256 x 186 x 460 13.0
AGF-B20 PT 2.0 12 to 30 3.2 250 x 180 x 300 11.0 311 × 265 × 529 24.0
AGF-B30 PT 3.0 15–35 4.3 250 x 180 x 300 11.0 311 × 265 × 529 24.0
*The dimensions of the high-voltage transformer vary depending on the high-voltage output cable outlet.
*If options are added, the frequency and high voltage transformer dimensions may differ from those in the above specification table.
PT: For high speed timing
S: For molded products
