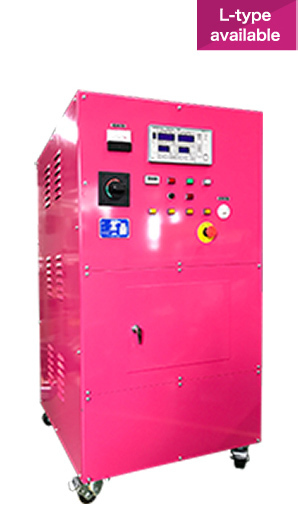

High voltage oil filled capacitor type magnetizer (standard) SR Nihon denji Sokki

Model High spec model Standard model
Aimed at mass production or rapid prototyping Suitable model for mass production
Power input Single phase AC 200V Tap Changer 180-200-220V 50A 50/60Hz
Power supply connection method Terminal block
Charge voltage DC100V～2500V
Capacitance 2000µＦ(With capacity changing adaptor) 2000µＦ
Maximum allowance current 30kA
Magnetizing time About 400µSec or more (※When the attached cable is short circuited)
Charging time 4 seconds or more
Rectifier SCR・ＳＲ
Charging energy 6250J or more
Charge and discharge control Controlled by CU-1
Control Panel & Display Power indicator lamp
Emergency button
Discharging counters
Control circuit fuse
Residual voltmeter ー
BNC connector for current waveform ー
Capacitor toggle switch ー
External connections Power input terminal block
External input and output terminal block
Discharge commanding terminal block
Others Swivel caster (Brakes on two front wheels)
Dimensions 705mm W x 835mm D x 1356mm H
Accessories Power input cable (8sq-3 core) 5m
Output cable (76sq) 3m x 2
Spare fuse
