Torque Control
Angle Control
Thread Control
Built-in torque sensor and angle encoding for precise torque control

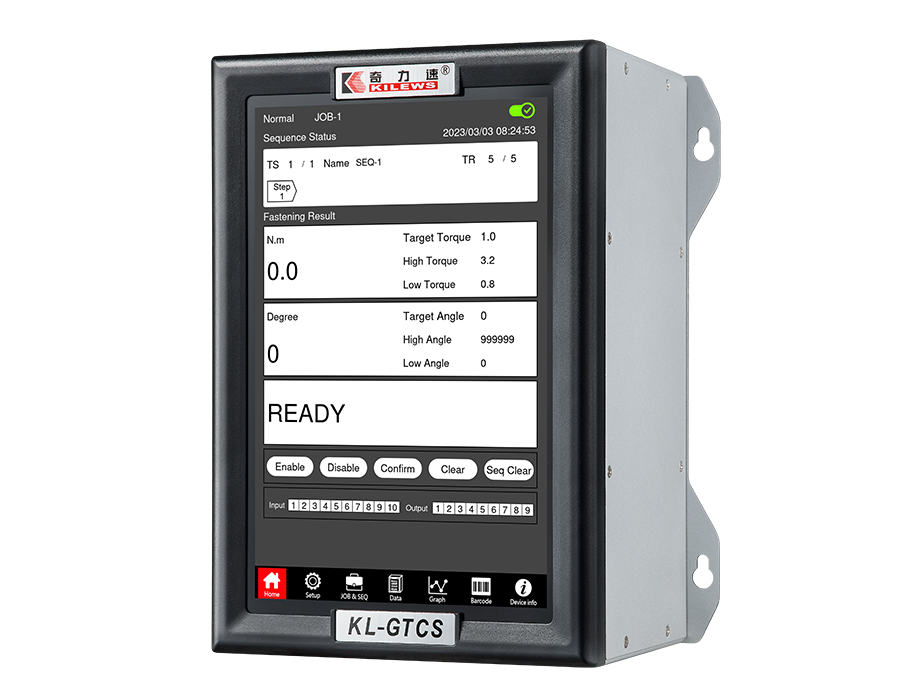

10-inch touch screen with a clear display for convenient operation
High-quality materials to enhance durability in industrial environments
Sleek high-tech design with ergonomic features for effortless operation
Standard data transmission port, compatible with industry 4.0 requirements
Real-time fastening graphics for analysis and monitoring
Built-in data storage for recording and tracking data
High-precision torque sensor to ensure the best accuracy
Multiple start modes: lever trigger, push-down screwdriver, or a combination of both
LED illumination options: constant on, off, or activated only during use
USB data storage for easy data transfer
Screw counting feature
Adjustable parameters to accommodate various material hardness levels
Two available modes: Normal and Advance for different settings and customization
Modbus protocol support via RS232 port
I/O ports for seamless connectivity
Graphical representation of fastening status, angle, torque, power, and time
Specifications
Model
KL-GTCS
Input Voltage
AC 115V / 230V
Input Frequence
50 – 60Hz
Input Current
6.3A
Output Voltage
DC 40V
Output Current
Max 9A
power consumption
360W
External dimensions(mm)
266*180*145
Weight(g)
4080
Applicable Model
SGT-CS Series
SGT-LCS Series
External Dimension
External Dimension
