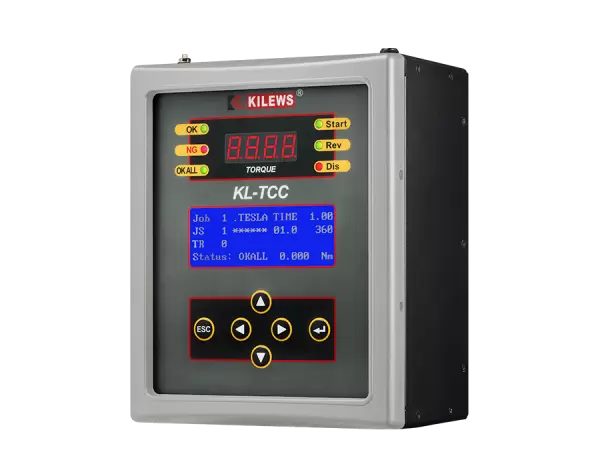

ILEWS current control tightening system offers high torque accuracy and repeatability. It allows users to fully control and monitor the entire screw rundown process. Many costly tightening errors such as floating screw, stripped screw, over torquing…etc. can be eliminated. Users can adjust current level to achieve tightening goals with consistent tightening results. Parameters are saved in controller and can be adjusted to optimize tightening process for all kinds of joints. It’s compact light weight design makes it easy for long time operation.
Specifications
Model
KL-TCC
Input Voltage
AC 115V / 230V
Input Frequence
50 – 60Hz
Input Current
6.3A
Output Voltage
DC 40V
Output Current
Max 9A
power consumption
360W
External dimensions
241 x 185 x 127(mm)
Weight
3.46Kg
Applicable Model
SGT-CC Series
External Dimension
External Dimension
