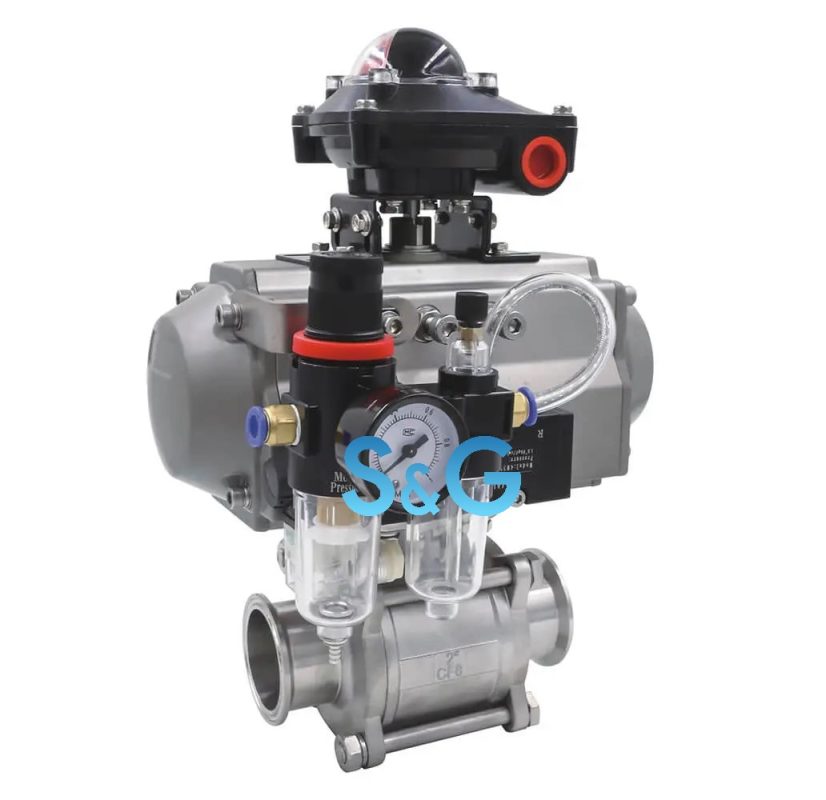

KST 3PC Ball Valve

Product Details
3-Piece Ball Valve
Nominal Size: 1/2″~4″, DN15-DN100 (Indicates the standard dimension used to identify a pipe or fitting)
Nominal Pressure: PN16-PN63, CL150-CL400 (Represents the maximum allowable working pressure that the valve can withstand)
Product Model: QC41F
Connection End: Threaded, flanged, butt-welded, socket-welded, etc. (The different ways the valve can be connected to a pipeline)
Actuation: Manual, pneumatic, electric (Indicates the methods to operate the valve)
Temperature Range:
Normal temperature: -29°C to 120°C
High temperature: -29°C to 180°C
Valve Body: Cast steel, austenitic stainless steel CF8, CF8M, CF3, CF3M, etc. (The materials used for the valve body)
Application: Used in fine chemical, food, medical, pharmaceutical and other industries
Implementation Standards:
Design and manufacturing standards: GB/T 12237, API 608
Face-to-face dimension standard: Company standard
Thread type: NPT, BSPT, BSP, G thread, etc.
Inspection and test standards: GB/T 26480, API 598
