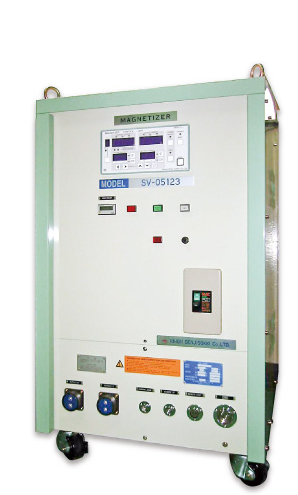

V : CU-1 digital control unit
SBV : analog control
Strength
Magnetizer using long-lifespan, large-capacity capacitor to replace conventional chemical capacitors
Application
Post assembly magnetization for speakers (2-pole magnetization) , magnetrons, dot matrix printer heads, HB-type stepping motors, 2-pole coreless spindle motors, electrical components (washer pumps, windshield wipers, power windows, power seats, etc.) using air-core coil or electromagnet (Weiss type and cyclotron type).
Post assembly external magnetization of 2 to 4 poles, electrical components of stator magnet type (magnetization after assembly of 4-pole motors such as blowers, ABS, etc., and external circumference magnetization of rotor magnets)
Instruments, meters (speedometers for motorcycles), various instruments for aircraft
Rated Value
Charge voltage: 500 (V) to 1500 (V)…in 500 (V) increments
Capacitance: 5000 (µF) to 20000 (µF)…in 1000 (µF) increments
Maximum allowance current: 20 (kA)
Standard specifications
Model SV/SBV-05502 SV／SBV-10103 SV／SBV-10153 SV／SBV-15502 SV／SBV-15203
Maximum charge voltage (V) 500 1000 1500
Capacitance (µF) 5000 10000 15000 5000 20000
Power input (V)*1 Single phase
AC200V, 15A Single phase
AC200V, 30A Single phase
AC200V, 50A
Maximum allowance current (kA) 10 20
Charge time (seconds)*2 3 4 6 4 8
Reference for external dimensions (mm)*3 605×785×1035 605×785×1145 605×870×1160 605×785×1145 1005×1285×1232
Reference for mass (kg) 150 300 400 200 600
*1 Options are available for customized specifications of local factory voltages.
*2 Charging time can be adjusted in line with production volumes.
*3 Dimensions: W x D x H. Can be modified to fit installation space (please contact us).
Controller
Mounted on model SR and SV magnetizers
Digital control unitCU-1 for magnetizer
CU-1
Features
Preset memory of digital magnetizing condition up to 10 sets
Digital display of charge voltage and magnetizing current
Comparator for charge voltage and magnetizing current
Charge-up indicator light with signal output
Peak value display by detection of magnetizing current and Rogowski coil
Functions for holding peak values and magnetizing currents
Real-time charge level display
● Digital control unit CU-1 can be mounted on both magnetizer and demagnetizer.
