iquid CO2 pump for Supercritical extraction

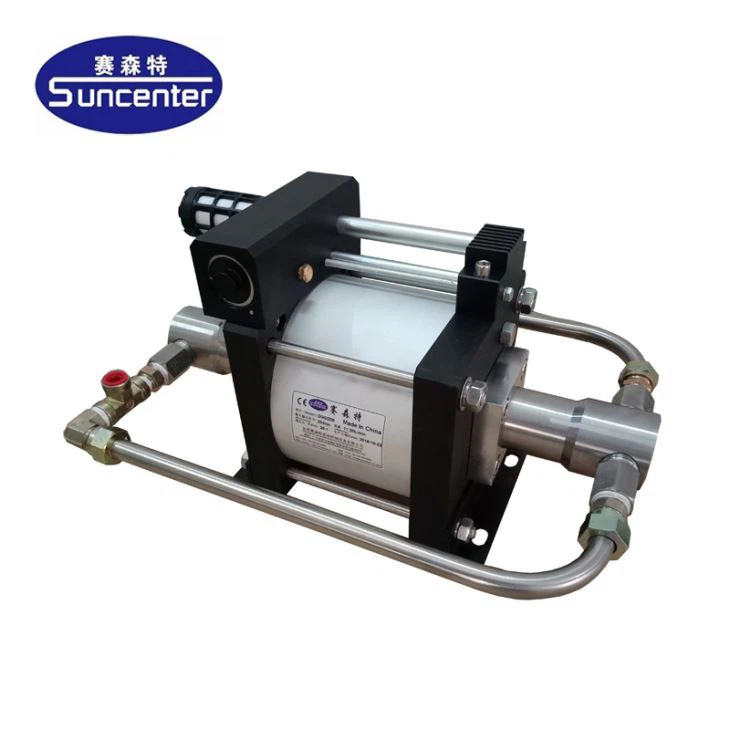

Air Driven Liquid CO2 Booster Pump-DGG/DGGD Series.
SUN CENTER pumps are air driven at a drive air pressure of 2bar to 8bar by the normal air compressor. Basically, the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is regulated by a pilot operated 4/2 way valve.
Suncenter pumps feature a large air piston joint to a smaller diameter plunger. The pressure ratio is the difference between these two areas and is the method of determining maximum outlet pressure. Higher pressures obtained by using higher pressure ratios. Suncenter model numbers reflect the pumps nominal pressure ratios， while the technical data indicates exact ratios. The outlet pressure is easy to set through a simple air regulator. By multiplying the pressure ratio by the available shop air pressure, the nominal outlet pressure can be calculated.
Key features include:
Compressed Air is driven – no electricity required (connect to normal air compressor)
In order to extend the lifetime of the pump, the driving air pressure should
not be higher than 8 bar
No airline lubricator required
Wide range of models with different ratios
Built-in-cooling on most models
Easy to install, operate and maintain
Best price/performance ratio
No heat, flame or spark risk and explosion proof
Automatic pressure holding, whatever the cause of the pressure drop, the Suncenter pump will automatically start, keep the loop pressure constant
Applicable for liquid CO2/liquid+gas mixed CO2/Supercritical CO2
For liquid CO2 cylinder transfer/filling
For CO2 Fire Extinguisher filling
For Supercritical CO2 extraction
DGG Series Liquid CO2 Booster Pumps(Single acting)
Technical specification
Model
Pressure Boost Ratio
Driven air pressure PL
Formula to calculate outlet pressure
MAX Outlet
Pressure(bar)*
Liquid inlet Connection
Liquid outlet Connection
MAX Flow (L/min)
DGG6
6:1
2-8 bar
6XPL
48
NPT1/2
NPT1/2
29.91
DGG10
10:1
2-8 bar
10XPL
80
NPT1/2
NPT1/2
18.84
DGG16
16:1
2-8 bar
16XPL
128
NPT1/2
NPT1/2
12.42
DGG28
28:1
2-8 bar
28XPL
224
NPT1/2
NPT1/2
7.11
DGG40
40:1
2-8 bar
40XPL
320
NPT1/2
NPT1/2
4.89
DGG64
64:1
2-8 bar
64XPL
512
NPT1/2
NPT3/8
3.08
DGG80
80:1
2-8 bar
80XPL
640
NPT1/2
NPT3/8
2.44
DGG100
100:1
2-8 bar
100XPL
800
NPT1/2
NPT3/8
1.92
DGG130
130:1
2-8 bar
130XPL
1040
NPT1/2
M14X1.5
1.47
DGG175
175:1
2-8 bar
175XPL
1400
NPT3/8
M14X1.5
1.14
DGGD Series Liquid CO2 Pumps(Double acting)
Technical specification
Model
Pressure Boost Ratio
Driven air pressure PL
Formula to calculate outlet pressure
MAX Outlet
Pressure(bar)*
Liquid inlet Connection
Liquid outlet Connection
MAX Flow (L/min)**
DGGD4
4:1
2-8 bar
4XPL
32
NPT1/2
NPT1/2
70.00
DGGD6
6:1
2-8 bar
6XPL
48
NPT1/2
NPT1/2
48.60
DGGD10
10:1
2-8 bar
10XPL
80
NPT1/2
NPT1/2
30.61
DGGD16
16:1
2-8 bar
16XPL
128
NPT1/2
NPT1/2
19.73
DGGD28
28:1
2-8 bar
28XPL
224
NPT1/2
NPT1/2
11.30
DGGD40
40:1
2-8 bar
40XPL
320
NPT1/2
NPT3/8
7.69
DGGD64
64:1
2-8 bar
64XPL
512
NPT1/2
NPT3/8
4.94
DGGD80
80:1
2-8 bar
80XPL
640
NPT1/2
NPT3/8
3.96
DGGD100
100:1
2-8 bar
100XPL
800
NPT1/2
NPT3/8
3.13
DGGD130
130:1
2-8 bar
130XPL
1040
NPT1/2
M14*1.5
2.40
DGGD175
175:1
2-8 bar
175XPL
1400
NPT3/8
M14*1.5
1.81
