■ Features

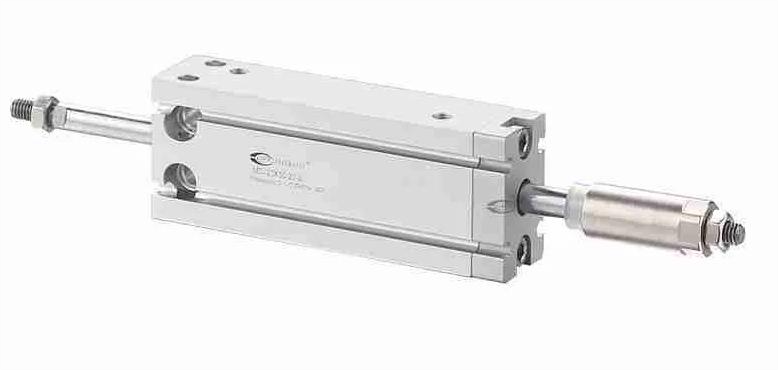

1. Mini Free assembly cylinder MDJ Series Adopted Sealing material with high temperatures resistance to guarantee the normal operation of the cylinder to 150 ℃ (option).
2. Several cylinders can be assembled to effectively save the installation space.
3. The slim cylinder design makes it an excellent choice for applications with limited space.
4. There are slots for magnetic switches around the compact body of the cylinder, which is convenient to install sensor switches.
5. Custom race, stamps, interior diameter, cylinder accessories and repair kits are available.
6. The guide’s accuracy of the piston rod is high and additional lubricant is not needed.
7. Mini Free assembly cylinder MDJ series of several specifications are optional.
■ Specs
| Diameter (mm) | 6 | 10 | 16 | 20 | 25 | 32 | |
|---|---|---|---|---|---|---|---|
| Action type | MD / MDD / MDJ | Double effect | |||||
| MSD / MTD | Simple effect | ||||||
| Working medium | AIRE (filtering by filter element of 40 one) | ||||||
| Working pressure | Double effect | 0.15 to 1.0 Mpa | |||||
| Simple effect | 0.2 to 1.0 Mpa | ||||||
| Test pressure | 1,5 Mpa | ||||||
| Working temperature | -20 a 70℃ | ||||||
| Speed margin | EFFECT DOBLE 30 to 500mm /s; Simple Effect 50 to 500mm /s | ||||||
| Stroke tolerance | 0 | ||||||
| Shock absorber type | Bumper | ||||||
| Port size | M5x0,8 | 1/8 | |||||
