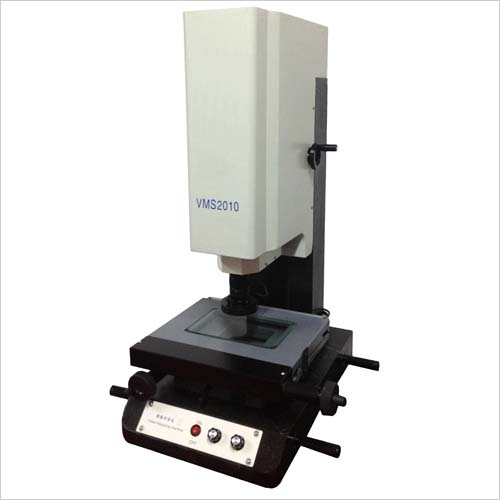

Model Number: VMS-2010-5040
Name: (Measurement range: 500-400mm, accuracy, 3um, manual) imager, image measuring instrument, manual standard type
This is manual, standard type, very cost-effective, our imager, X, Y axis table top are all high-quality marble platform, good stability. The main equipment and camera equipment are used with higher configuration or imported products.
Effective measurement stroke: 200*100,300*200,400*300,500*400mm
Z-axis focus lifting range: ≤200-250mm
Glass table size: 223mm×143mm – 555mm×445mm
stage size: 345mm*250mm – 720mm×610mm
Loading Weight: ≤25 kg
Linear Accuracy: U≤( 3+L/200 )μm
Resolution: 0.001mm
CCD: High Resolution 1/3″ Color CCD 600TV Cable
Lens: Continuous Zoom HD Lens Optical Magnification 0.7×-4.5×
Image Magnification: 20-180x
Grating Rugher: High precision grating ruler, resolution 1um
Measurement software: Optical vision REICA precision measurement software
Host body: base, column, worktable are all high-precision granite The large height of the general sample is 150mm, if your product is higher, you need to customize it.
2
Model: CNC3020-6050
Name: (Fully automatic, three-axis, measurement range is 600*500, accuracy, 3um, resolution, 0.00 automatic image measuring instrument, CNC imager
This one is fully automatic.” Three Axes”.
Effective measurement stroke: 300*200*200, 400*300*200, 500*400*200, 600*500*200mm
Z-axis focus lifting range: ≤200mm
glass table size: 329mm×229mm – 529mm×429 mm
stage size: 640mm*410mm – 850mm*620mm
Loading Weight: ≤25 kg
Linear Accuracy: U≤( 3+L/200 )μm
Resolution: 0.0005mm
CCD: CCD Color Resolution Industrial Camera CCD
Lens: Automatic Zoom Lens Optical Magnification 0.7×-4.5×
Image magnification: 20-180x, with 2X objectives, the total video magnification can reach 360x.
Grating Ruler: High-precision precision grating ruler, resolution 1um
Measurement software: Optical vision REICA precision measurement software
Host body: base, column, worktable are all high-precision granite
3
Model: CNC3020-6050
Name: (Fully automatic, four-axis, measurement range is 600*500, accuracy, 3um, resolution, 0.00 Automatic image measuring instrument, CNC imager (four-axis).)
This is a 4-axis, compared to 3-axis, this series of devices, has an additional Z-axis autofocus function. Make the detection more convenient and accurate.
Effective measuring stroke: 300*200*200,400*300*200,500*400*200, 600*500*200mmmm
Z-axis focusing lifting range: ≤200mm
Table size: 329mm×229mm – 529mm×429 mm Stage
size: 640mm*410mm – 850mm*620mm
Load Weight: ≤25 kg
Linear accuracy: U≤( 3+L/200 )μm
Resolution: 0.0005mm
CCD: CCD Color Resolution Industrial Camera CCD
Lens: Automatic zoom lens Optical magnification 0.7×-4.5×
Image magnification: 20-180x, with 2X objective, the total video magnification can reach 360x.
Grating Ruler: High-precision precision grating ruler with a resolution of 1um
Measurement software: Optical Vision REICA Precision Measurement Software The
main machine body: The base, column, and workbench are all high-precision granite
4
Model: CPJ-3007, 3010, 3015
Name: (Focusing method: The workbench moves up and down) Desktop projector, measuring projector (inverse).
This is the basic classic series,
the reverse image type and the focal length adjustment is the up and down movement of the table.
Metal table size(mm): 340*152
Glass table size(mm): 196*96
X-coordinate travel(mm): 150
Y-coordinate travel(mm): 50
Z-coordinate travel(mm): 90(focus)
Instrument measurement accuracy: (μm) 3+L/50(L is the measured length, Unit: mm)
X and Y coordinate digital display resolution: 0.5μm
Projection screen size (mm): Ф 312, range of use> Ф300 (engraved with rice line)
Projection rotation range: 0~360°
Rotation angle digital display resolution: 1 ′ or 0.01°
objective lens
Magnification: 10X (optional) 20X (optional) 50X (optional) 100X (optional)
Field of view of object line (mm): Ф30 Ф15 Ф6 Ф3
Working distance (mm): 77.7, 44.3, 38.4, 25.3
Measuring height (mm) 80
Suggested Table: Load ≥250kg Dimensions (L*W*H) 800*550*650(mm)
Data processing: Multi-point sampling, coordinate rotation, point, line, distance, angle measurement
5
Model: CPJ-3007Z, 3010Z, 3015Z
Name: Positive image, X, Y axis range is different. The error of the coordinate indication can reach (3+L/75) Desktop projector, measuring projector (positive image).
Positive image type CPJ-3007Z, CPJ-3010Z, CPJ-3015Z, the size of the three devices is different.
Metal table size(mm): 340*152
Glass table size(mm): 196*96
X-coordinate travel(mm): 150
Y-coordinate travel(mm): 50
Z-coordinate travel(mm): 90(focus)
Instrument measurement accuracy(μm): 3+L/50(L is the measured length, Unit: mm)
X, Y coordinate digital display resolution: 0.5μm
Projection screen size (mm): Ф 312, range of use > Ф300 (engraved with meter line)
Projection rotation range: 0~360°
Rotation angle digital display resolution: 1′ or 0.01°
Objective magnification: 10X (optional), 20X (optional) , 50X (optional), 100X (optional)
Object Line Field of View (mm): Ф30 Ф15 Ф6 Ф3
Object Working Distance (mm) 77.7, 44.3, 38.4, 25.3
Measuring Height(mm): 80
Load ≥250kg
Data Processing System: Multi-point sampling can be done, Coordinate rotation, point, line, distance, angle measurement
6
Model: CPJ-3015A, 3040A
Name: (Focusing method: projector tube moves up and down, reverse image,) Vertical projector, measuring projector (reverse image).
The accuracy of this series is relatively high, reaching 2.5+L/50, there are 5 models of size to choose from, the image is inverted,
and the focusing method is to move the projection tube up and down
Metal table size (mm): Dada, 606*466
Glass table size (mm): large, 450*350
X coordinate travel (mm): large, 400
Y coordinate stroke (mm): large, 300
Z coordinate stroke (mm): large, 100 (focusing)
Instrument measurement accuracy: (μm) 2.5+L/50 (L is the measured length, unit: mm)
X and Y coordinate digital display resolution: 0.5μm
Projection screen size (mm): Ф 312, the range of use > Ф300 (engraved with a rice line
Projection rotation range: 0~360°
Rotation angle digital display resolution: 1 ′ or 0.01°
objective lens
Magnification: 10X(optional) 20X(optional) 50X(optional) 100X(optional)
Object square line field of view (mm): Ф30 Ф15 Ф6 Ф3
Working distance of object (mm): 77.7, 44.3, 38.4, 25.3
Measuring large height (mm) 90
Suggested Placement Table: Load ≥250kg Size (L*W*H) 800*550*650(mm)
Data processing: Multi-point sampling, coordinate rotation, point, line, distance, angle measurement
7
Model: CPJ-3015AZ, 3040AZ
Name: (Positive image series, X, Y axis range: 150-400mm, 100-300mm vertical projector, measuring projector (positive image)
Positive image type worktable: 354*228 – 606*466mm
Glass table size(mm): 210*1600 – 450*350
X coordinate travel(mm): 150 – 400
Y coordinate travel(mm): 100 – 300
Z coordinate travel(mm): 100(focus).
Instrument measurement accuracy (μm): 2.5+L/100 (L is the measured length, unit: mm)
X and Y coordinate digital display resolution: 0.5μm
Projection screen size (mm): Ф 312, range of use, Ф300 (engraved with rice line)
Projection rotation range: 0~360°
Rotation angle digital display resolution: 1 ′, or 0.01°
Objective lens
magnification: 10X (optional), 20X (optional)
Object line field of view (mm): Ф30,15,6,3
Object working distance (mm): 77.7 44.3 38.4 25.3
Measurement height (mm): 90
Recommended table load: ≥250kg, size (L*W*H) 800*550*650(mm)
Data processing system: multi-point sampling, coordinate rotation, point, line, distance, angle measurement
8
Model: CPJ-3015CZ, 3025CZ positive image
Name: (X coordinate: 150-250mm, Y coordinate: 100-150mm) Desktop projector, industrial projector (positive image).
Compared with CZ series and AZ, the size of the table is different, and there are 4 options for magnification.
Table: 354*228 – 450*280mm
Glass table size(mm): 210*160 – 306*196
X coordinate travel(mm): 150 – 250
Y coordinate travel(mm): 100 – 150
Z coordinate travel(mm): 100
Instrument measurement accuracy (μm): 2.5+L/100 (L is the measured length, unit: mm)
X and Y coordinate digital display resolution: 0.5μm
Projection screen size (mm): Ф 312, range of use, Ф300 (engraved with rice line)
Projection rotation range: 0~360°
Rotation angle digital display resolution: 1 ′, or 0.01°
Objective lens
magnification: 10X (optional), 20X (optional), 50X (optional), 100X (optional)
Object line field of view (mm): Ф30,15,6,3
Object working distance (mm): 77.7 44.3 38.4 25.3
Measuring height (mm): 90
Recommended table load: ≥250kg, size (L*W*H) 800*550*650(mm)
Data processing system: multi-point sampling, coordinate rotation, point, line, distance, angle measurement
9
Model: CPJ-3020W, 4025W
Name: Horizontal Machine (Reflector, X Coordinate: 200-250mm, Y Coordinate: 75-100mm) Horizontal Projector, Measuring Projector (Reflector).
W series is a horizontal device,
CPJ-W horizontal projector has a stable and reliable mechanical structure and high-precision magnification. It can accurately image the contour, section and surface shape of the measured workpiece to the projector screen, and is suitable for the observation and measurement of the contour shape of tools, gears, threads, springs, etc.
Table: 450*150-450*200mm
Glass table size(mm): 210*160 – 306*196
X coordinate stroke (mm): 200-250
Y coordinate travel (mm): 75-100 Focus
Z coordinate travel (mm): 100-150
Swing range: ±15° (can be specially ±25°)
Instrument measurement accuracy (μm): 4+L/50 (L is the measured length, unit: mm)
X and Y coordinate digital display resolution: 0.5μm
Projection screen size (mm): Ф400
Projection rotation range: 0~360°
Rotation angle digital display resolution: 1 ′, or 0.01°
Objective
Magnification: 5X (Selective) 10X (Selected) 20X (Selected) 50X (Selected) 100X (Selected)
Object Line Field of View (mm): Ф80 Ф40 Ф20 Ф8 Ф4
Object Square Working Distance (mm): 3.7 102.9 95.1 65.7 35
Measuring Large Height ( mm): 90
Recommended table load: ≥350kg, Dimensions (L*W*H) 800*550*650(mm)
Data processing system: multi-point sampling, coordinate rotation, point, line, distance, angle measurement
10
Model: 560
Name: Vertical projector
Watches, models dedicated to the rubber industry, reliable and stable performance. Favored by customers in these industries.
Projection screen size: 560×460mm Objective
magnification (transmitted illumination): 10×, 20×, 50×, 100×
Objective magnification (reflected illumination): 10×, 20×
Magnification error: ≤0.08%
Table size: 140×160mm
Worktable working stroke (longitudinal): 40mm
Worktable working stroke (transverse): 25mm
Worktable working stroke (vertical): 85mm
Workbench microcylinder dividing value: 0.01mm
Vernier dividing value: 0.001
Worktable load: 5kg
Dimensions: 1500 × 950×1900mm
11
Model: MMD-100A, B
Name: Maximum accuracy, 0.3um, measuring range 100*300mm profilometer (type A is the basic accuracy, type B is the high-precision model).
MMD-100 profilometer can measure the shape of the
line, straightness, angle, convexity, contour, inclination, parallelism, logarithmic curve, groove depth, groove width, groove curvature radius, groove edge distance, groove center distance and other parameters of various precision mechanical parts.
X-axis guide moving straightness: ≤0.3um/60mm
indication error: ±(1.5+1.5L/100)um
sensor resolution, range: 1/4096-65536
sensor range: 4-20mm
grating resolution: 0.6-1um
grating accuracy: ± 2-3um/100mm
X-axis range: ≤100mm
Z-axis range: ≤300mm
Accessories: deviation adjustment table, comprehensive adjustment table, precision V-shaped table, ball probe, oblique probe, cone probe
12
Model: MMD-220A, B
Name: Profilometer (Type A is the basic accuracy, Type B is the high precision model).
The MMD-220 has a larger measurement range, reaching 200mm
X-axis rail movement straightness: 0.25-0.4μm/60mm
Measurement accuracy (L=X-axis rail travel distance): ±(1.5+2L/100) μm, ±(1+L/100) μm
Measurement accuracy (H=Z1 axis direction measurement height): ±(2+15H/100) μm, ±(0.8+). 10H/100)μm
Z1 axis range: 15mm
Z1 axis resolution: 1/65536
Z1 axis climbing angle: 77 degrees up, 88 degrees down
Software:
Angle processing (coordinate angle, straight line angle)
Arc processing (arc radius, center distance, distance from the center of the circle to the line, The distance from the intersection point to the center of the circle, etc.)
Point line processing, straightness, groove depth, groove width, groove margin, groove center distance, horizontal distance and other parameters
Air floating horizontal guide rail X-axis, straight grating ruler resolution: 0.1μm
Bearing weight 60kg
X-axis direction measurement range: 200mm
Vertical measurement height of column: 400mm
Z-axis direction measurement range (large height of workpiece): 300mm with standard accessories (if the measurement part is inside the hole, the hole diameter is not less than 20mm); There are also measuring rods with different inner hole diameters
13
Model: MMD-320A, B
Name: (Measuring range is 300mm, accuracy is 0.25um/60mm) Profilometer (Type A is basic accuracy, Type B is high accuracy).
This model has a very large measurement range, reaching 300mm
X-axis guide rail movement straightness: 0.25-0.4um /60mm
L=X-axis guide rail movement distance: ±(1.5+2L/100) μm
H=Z1 axis direction measurement height: ±(2+15H/100) μm
measurement range: 25mm
Resolution: 1/65536
Climbing angle: 77 degrees up, 88 degrees down
Software: Contour shape parameters, angle processing (coordinate angle, straight line angle)
Arc processing (arc radius, center distance, distance from the center of the circle to the line, distance from the intersection point to the center of the circle, etc.)
Point line processing, straightness, groove depth, groove width, groove margin, groove center distance, horizontal distance and other parameters
Magnification: Can be reduced or enlarged at will
Straight scale resolution: 0.1μm
Bearing weight: 100kg
X-axis measurement range: 300mm
Column vertical measurement height: 550mm
Z-axis measurement range: Standard accessories: 300mm (If the measurement part is inside the hole, pore diameter not less than 20mm); There are also measuring rods with different inner hole diameters
14
型号:JB-5C,JB-6C
Name: (Precision measuring instrument that can detect roughness, contour, 2 functions) Roughness profilometer
JB-5C,6C Contour Roughness Tester is a two-in-one measuring instrument that can detect roughness, and 2D contour. Below are the technical specifications for roughness and profile measurement.
**Roughness measurement
Test parameters: Ra, Rz, Rt, RS, RSm, Rp, Rv, Rmax, Rq, D, Pt, Lr, Ln and Rmr (Tp) curves, etc.
Roughness profile graphic magnification: 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 2000, 5000, 10000, 20000, 50000, 100000, 200000, 500000 or automatic
Roughness Measurement Range: Ra 0.01 – 10 μm or more
Sample length: L: 0.08 ,0.25, 0.8, 2.5,8 mm or any setting
Rating Length: Ln: 1L, 2L, 3L, 4L, 5L
Resolution: 0.001 μm
Indication error: ± (5 %+4nm)
Measuring workpiece height: 370mm
The sensor can measure: Surface roughness of various parts such as plane, inclined plane, inner hole surface, outer cylindrical surface, deep groove surface, arc surface, spherical surface, etc.
Step & Pt Measuring Range: 1mm
Axial Measuring Range: 100mm, 120mm, 150mm (6CA)
X, Y magnification of the contour graph: 1-500x click to enlarge
Small hole measurement range: ≥ 5 mm
X-Y travel range: 15 mm
Bearing inner and outer ring size: inner ring large outer diameter 280mm, thickness 160mm, outer ring small hole diameter 15mm
**Contour Measurement Range
Measuring Range, X: 100mm, 120mm or 150mm (JB-6CA), Z: 10-20mm
Shape measurement functions: point, line, top, valley, intersection, contact, centerline. Analysis: coordinate difference, distance, angle, radius, profile, etc.
Sensor Range: 1mm (roughness), 10mm (profile) 1mm (roughness), 20mm (profile)
Shape graphic magnification: 1,2,3,4,5,10,20,50,100,120,150,200,250,300,350,400,450,500
Radius error: 0.1%-1.0
Axial Measuring Range: 100mm
Sampling Speed: 0.5mm/sec, 1mm/sec
Moving Range: X:100-120mm,Z:370mm
Optional measurement of large workpiece height: 500mm
15
Model: WKJ-300ZD
Name: Microcomputer controlled insulation thickness automatic measurement projector
Outer diameter test
can be carried out Insulation thickness test
can be carried out It can automatically calculate small values, large values, average values, average thickness, average outer diameter, and can be printed with a printer about the above data.
Model name Focus range
WKJ-300ZD Microcomputer controlled insulation thickness automatic measurement projector 70mm
16
Model: JTT-D
Name: Digital display desktop projector
Digital display desktop projector is a precision and efficient measuring instrument integrating optics, machinery and electricity, divided into two kinds of reverse image and positive image, widely used in machinery, instrumentation, electronics, light industry and other industries, universities, research institutes and metrology verification departments. This instrument can efficiently detect the contour size and surface shape of various complex shapes of workpieces, such as templates, stamping parts, cam threads, gears, forming milling cutters, etc. It is a projector for exclusive use of the wire and cable.
17
Model: JTT-D
Name: Desktop Measurement Projector (Mechanical).
JTT-D desktop measuring projector is a precision and efficient optical measuring instrument integrating optical, mechanical and electrical integration. It is widely used in machinery, instruments, clocks and watches, electronics, cables, rubber, spring hardware, building materials, light industry and other industries, as well as universities, research institutes, metrology verification departments of the measurement room, laboratory and production workshop. This instrument can efficiently detect the contour size and surface shape of various complex shapes of workpieces. It is a projector for exclusive use of the wire and cable.
