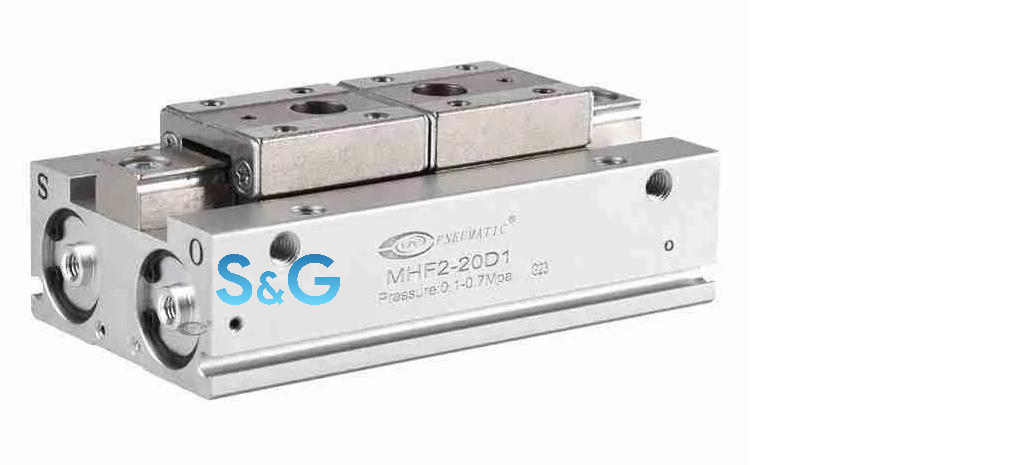

■ Features
1. MHF pneumatic tweezers, including the MHF2 series, have a compact design and a great grip force, thanks to a double piston mechanism.
2. Pneumatic cylinder clamp under MHF2 series are designed to reduce the height, some mode of the height of the standard tweezers, which helps the efficiency of the space.
3. These manipulators are designed to minimize the moments of flexion. Short, stockings and long races are available to meet a wide variety of application requirements.
4. The Design of Pneumatic Cylinder Profile cylinder MHF2 improves the use of space and reduces flexion moments. This helps improve precision with soft functioning.
5. In addition, the MHF2 series tweezers provide excellent levels of clamping force in various grip conditions. Appropriate for applications that require precision and reliability.
■ Specs
| Working medium | Aire | |
|---|---|---|
| Working pressure | F8: 0.15 A 0.7 MPA | |
| Ф12 to 20: 0.1 to 0.7 MPa | ||
| Working temperature | -10 to 60 ℃ (without freezing) | |
| Repeatability | ±0,05 mm*¹ | |
| Max frequency of work | Short races | 120 c.p.m. |
| Medium career | 120 c.p.m. | |
| Long race | 60 c.p.m. | |
| Lubrication | Without lubrication | |
| Action | Double effect | |
| Automatic switch (option)*² | Solid State Circuit Breaker (3-Wire, 2-Wire) | |
1) Value without load applied to the finger.
When a finger displacement load is applied, the maximum value is ± 0.15 mm due to the influence of the zip and pinion game.
2) Detailed plans and parameters of the ACQ series can be obtained by contacting VPC.
| Action | Model | Diameter [mm] |
Support force | Open/close stroke (both sides) [mm] |
Volumen interno [cm3] | |
|---|---|---|---|---|---|---|
| Effective grip force by finger [n] | ||||||
| Open side finger | Fingers | |||||
| Double effect | MHF2-8D | 8 | 19 | 8 | 0,7 | 0,6 |
| MHF2-8D1 | 16 | 1,1 | 1,0 | |||
| MHF2-8D2 | 32 | 2,0 | 1,9 | |||
| MHF2-12D | 12 | 48 | 12 | 1,9 | 1,6 | |
| MHF2-12D1 | 24 | 3,3 | 3,0 | |||
| MHF2-12D2 | 48 | 6,1 | 5,8 | |||
| MHF2-16D | 16 | 90 | 16 | 4,9 | 4,1 | |
| MHF2-16D1 | 32 | 8,2 | 7,4 | |||
| MHF2-16D2 | 64 | 14,9 | 14,0 | |||
| MHF2-20D | 20 | 141 | 20 | 8,7 | 7,3 | |
| MHF2-20D1 | 40 | 15,1 | 13,7 | |||
| MHF2-20D2 | 80 | 28,0 | 26,6 | |||
