LVS-7510 Print Quality Inspection System

• Zebra ZT610 is now supported
• Error alerts
• Accuracy and Data Integrity
• Proven system applications
• Database archiving and connectivity
• Barcode verification and trend charts

  The LVS-7510 now supports Zebra ZT600 Series printers, providing 100% print quality check and barcode verification.

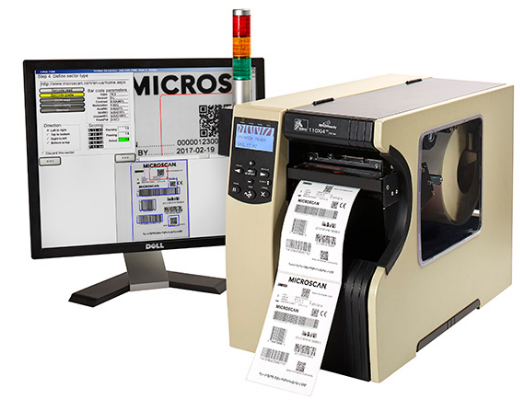

  A picture to understand the print quality inspection system

  The LVS-7510 inspection system is used for product label verification in medical device manufacturing, pharmaceutical manufacturing, consumer packaging, and specialty chemical manufacturing.

  With the LVS-7510, ensure the accuracy and data integrity of each label with print speeds of up to 254 mm per second:

  • Identify defects
  • Eliminate fines and disputes
  • Reduce rework
  • Waste control
  • Avoid liability
  • Provides operator notification of print quality degradation for proactive maintenance
  • Can be used with offline verifiers to create a seamless label design and production quality system

  Thermal Printer Visualization Technology: 100% label inspection, including 1D/2D barcode verification, OCR, serialization and defect detection.

  • Barcode Verification (1D/2D Code Grading): Check any combination of 1D/2D codes and grade them using internationally recognized standards. The software displays a real-time graph indicating the overall ISO rating, allowing the operator to see print quality trends for hundreds of previously inspected labels. When an error is detected, the graph changes color. There are also other error warning indicators, including printer stops, signal alarms for lights and sounds, and more.
  • Barcode Verification (1D/2D Code Reading): Check the codes to determine if they are “readable”. No attempt is made to score based on any criteria.
  • Master Label Comparison (Defect Detection): Identify print faults such as pattern or character deformation, skew, stains or defacements, ghosting or deviation from the intended position, die-cutting, and missing information. This feature includes a variable data feature that identifies expected variables within a pattern matching area, but does not report the data as a defect. Also included is a variable sensitivity setting for each label field examined.
  • Optical Character Recognition (OCR): “Reads” characters and reports the content of the data.
  • Optical Character Verification (OCV): Ensures that a string of consecutive characters is read and/or validated against a known field or database.
  • Numeric validation: Verify the expected order of any sequence of numbers, detect duplicates and sequence errors, and match variable numbers to external data files.
  • Data and code matching: Validates encoded data that contains readable information and ensures consistency across multiple data within the same label.
  • Printer Integration: The LVS-7510 is integrated into the Zebra xi4, Zebra ZT600 series and Printronix T8000 series printers. Contact Omron Microscan to learn most about other printer models

  Calibration Card (NIST Traceable) • Read Head • Sensor and Encoder (785 PPR) • USB Cable 2.0 Certified 6 feet (1.8 m) • Power Supply 5V • Power Cord (for United States customers only) • Stop Motion Interface Unit • 21-CFR Part 11 Compliant Ready • LVS-7510 Operations Manual, Installation Guide • 1 Year Workmanship Warranty • Height=330-394mm (13.0-15.5″), Width=262-402mm (10.3-15.8″), Depth=518-521mm (20.4-20.5″)*dimensions based on printer model selected
  	• 5.4” (138mm) Read Head • Light Tower with Interface
  peculiarity	• Read Head • Maximum readable label width: 8.5” (216 mm) • Maximum width of web: 8.7” (220 mm)
  Minimum system requirements	• Intel® Core™ 2 Duo Processor (or equivalent) • 2 GB RAM • 80 GB Hard Drive • 1280 x 1024 Screen Resolution • USB 2.0 • Microsoft Windows® XP Professional or Windows® 7.
  International standards	• ISO/IEC 15426 – 1 & 2 • ISO/IEC 15415 • ISO/IEC 15416 • All supported ISO/IEC symbology specifications

  ISO verification

  verify	Verify any linear, matrix, stacking, and various combinations according to the following ISO print quality standards: • ISO/IEC 15416:2000(E) – Linear Verifier Conformance • ISO/IEC 15415:2004(E) – 2-Dimensional Verifier Conformance
  Directions and numbers	Any orientation and numeric code on the label
  Read and analyze	1D and 2D to published international specifications, with an overall ISO (ANSI) grade
  Minimum 1D NBW	Read Only: 6.3 Mils (.0063″) (.160 mm) Verify: 8.8 Mils (.0088″) (.223 mm)
  Minimum 2D Cell Size	Read Only: 10.0 Mils (.0100″) (.254 mm) Verify: 12.5 Mils (.0125″) (.317 mm)
  report	Detailed data reports are available in .csv format for end users to extract. Summary reports can be viewed via LVS-7510 software

  LVS-7510
  Part Number	Description
  7510P-5-ZT610-300DPI	LVS-7510-5-ZT610-300DPI, INTEGRATED W/Zebra ZT610 300 DPI PRINTER
  7510P-5-ZT610-600DPI	LVS-7510-5-ZT610-600DPI, INTEGRATED W/Zebra ZT610 600 DPI PRINTER
  7510P-5-ZT610-300DPI-PP	LVS-7510-5-ZT610-300DPI, INTEGRATED W/Zebra ZT610 300 DPI PRINTER, with Rewinder
  7510P-5-ZT610-600DPI-PP	LVS-7510-5-ZT610-600DPI, INTEGRATED W/Zebra ZT610 600 DPI PRINTER, with Rewinder
  7510-5-110Xi4-300DPI	LVS-7510 5″ SYSTEM, ZEBRA 110 Xi4 KIT, 300DPI
  7510-5-110Xi4-600DPI	LVS-7510 5″ SYSTEM, ZEBRA 110 Xi4 KIT, 600 DPI
  7500-140Xi	LVS-7510 5″ SYSTEM, ZEBRA 140 Xi4 KIT
  7500-170Xi-5	LVS-7510 5″ SYSTEM, ZEBRA 170 Xi4 KIT
  7500-170Xi-8	LVS-7510 8″ SYSTEM, ZEBRA 170 Xi4 KIT
  7510-5-T8304	LVS-7510 5″ SYSTEM, PRINTRONIX 8304 KIT
  7510-8-T8308	LVS-7510 8″ SYSTEM, PRINTRONIX 8308 KIT
  7510P-5-110Xi4-300DPI	LVS-7510-5-110XI4-300DPI, INTEGRATED W/Zebra Xi110 300 DPI PRINTER
  7510P-5-110XI4-600DPI	LVS-7510-5-110XI4-600DPI, INTEGRATED W/Zebra Xi110 600 DPI PRINTER
  7510-8-220XI4-300DPI	LVS-7510 8″ SYSTEM W/LT,ZEBRA 220 Xi4 KIT, 300 DPI
  7510-8-220XI4-300DPI-PP	LVS-7510 8″ SYSTEM W/LT,ZEBRA 220 Xi4 KIT, 300 DPI, Peel & Present
  7510P-8-220XI4-300DPI	LVS-7510-8-220XI4-300DPI,  INTEGRATED W/Zebra Xi220 PRINTER
  7510P-8-220XI4-300DPI-PP	LVS-7510-8-220XI4-300DPI Peel & Present,  INTEGRATED W/Zebra Xi220 PRINTER
  7510P-5-T8304	LVS-7510 5″ SYSTEM W/LT, PRINTRONIX T8304, INT W/PRINTER
  7510P-8-T8308	LVS-7510 8″ W/LT, PRINTRONIX T8308,  INTEGRATED W/PR
