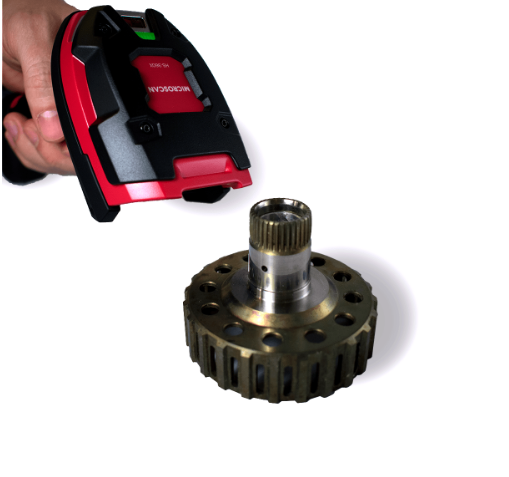

S-3608/HS3678 Handheld DPM Barcode Readers
The HS-360X Ultra-Rugged Handheld Barcode Reader is Omron’s latest generation of industrial direct part marking (DPM) barcode readers, setting a new standard for durability and performance. With the best performance out of the box, most applications can be supported with no additional setup required. The new user interface, WebLinkPC, makes it easy and intuitive to set up complex applications.
Ultra-durable: The HS-360X can withstand 5,000 8-foot (2.45-meter) drops
X-Mode Decoding Algorithm: The HS-360X features an industry-leading X-Mode decoding algorithm that continuously reads damaged, distorted, or otherwise challenging direct part marks at high decode rates.
Performance Indication: In addition to a beep, there is an indicator light and vibration indicator that provides silent confirmation of successful reads in noisy or sensitive environments.
Industrial Fluids and Chemicals Resistance: Resistant to many industrial liquids and chemicals.

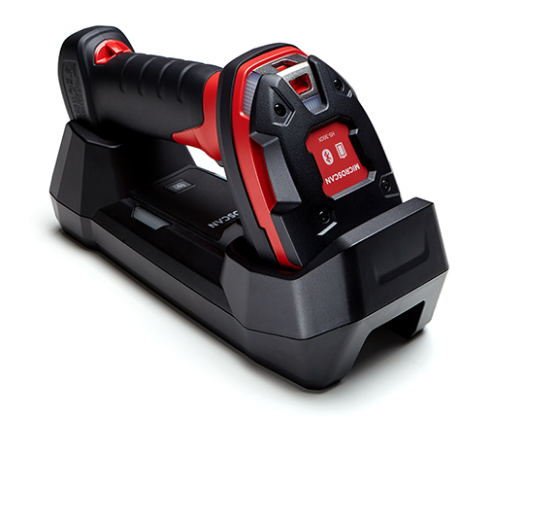

Charging Dock: The charging dock is IP65 rated, can send and receive data up to 300 feet via Bluetooth class 1 or 2, and features a Wi-Fi-friendly mode and a call button to locate the barcode reader.
Ease of use – WebLinkPC: The browser-based user interface makes it easy to configure, apply, and find devices for your barcode reader.
Dimensions
Wire:
Height: 7.3 in. / 18.5cm
Width: 3.0 in. / 7.7cm
Depth: 5.2 in. / 13.2cm
Weight: 10.72 oz./304g
Wireless:
Height: 7.3 in. / 18.5cm
Width: 3.0 in. / 7.7cm
Depth: 5.6 in. / 14.3cm
Weight: 14.18 oz./402 g (excluding batteries)
Symbology
1D – Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D – PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Protocol
Reader: Bluetooth® (Class 1, 4.0)
Charging Dock: USB 2.0
Light Source OptionSensor
: SXGA 1.2MP
Sensor Array: 1280 by 960
Battery
Capacity: 3100 mAH Li-ion
Scans: 50,000 scans on a full charge
Part No:
|
HS-360X Wired
|
|
|
Part Number
|
Description
|
|
HDS-3608-0001
|
HANDHELD DPM SCANNER, CORDED, HDS-3608
|
|
**** Wired Cordset Required ****
|
|
|
HS-360X Wired Cordsets
|
|
|
Part Number
|
Description
|
|
12-9000946-01
|
CABLE, USB, SHIELDED, 2M, HDS-3600 FAMILY
|
|
12-9000947-01
|
CABLE, USB, SHIELDED, 4.6M, HDS-3600 FAMILY
|
|
HS-360X Wireless
|
|
|
Part Number
|
Description
|
|
HDS-3678-0001
|
HANDHELD DPM SCANNER, CORDLESS, HDS-3678
|
|
**** Cradle and Cordset Required ****
|
|
|
HS-360X Wireless Accessories and Cordsets
|
|
|
Part Number
|
Description
|
|
12-9000937-01
|
CRADLE / CHARGER, HDS-3678
|
|
12-9000946-01
|
CABLE, USB, SHIELDED, 2M, HDS-3600 FAMILY
|
|
12-9000947-01
|
CABLE, USB, SHIELDED, 4.6M, HDS-3600 FAMILY
|
|
12-9000942-01
|
CABLE, USB, SHIELDED, 2M, EXT 12V, HDS-3600 FAMILY *** Power Supply Required ***
|
|
12-9000943-01
|
CABLE, USB, SHIELDED, 4.6M, EXT 12V, HDS-3600 FAMILY *** Power Supply Required ***
|
|
98-9000181-01
|
KIT, POWER SUPPLY FOR CRADLE / CHARGER, HDS-3678***A/C Power Cord Required ***
|
|
98-9000185-01
|
4 SLOT, BATTERY CHARGER, HDS-3678*** Power Supply Required ***
|
|
98-9000182-01
|
KIT, POWER SUPPLY FOR BATTERY CHARGER, 4SLOT, HDS-3678 ***A/C Power Cord Required***
|
|
12-9000939-01
|
BATTERY, SPARE, HDS-3678
|
|
Cordset Kits
|
|
|
Part Number
|
Description
|
|
98-9000181-01
|
KIT, POWER SUPPLY FOR CRADLE / CHARGER, HDS-3678***A/C Power Cord Required***
|
|
98-9000182-01
|
KIT, POWER SUPPLY FOR BATTERY CHARGER, 4 SLOT, HDS-3678 ***A/C Power Cord Required***
|
|
A/C Power Cord by Region
|
|
|
Part Number
|
Description
|
|
12-9000959-01
|
AC POWER CORD, 2.5M, US, C13 CONN.
|
|
12-9000960-01
|
AC POWER CORD, 2.5M, EU, C13 CONN.
|
|
12-9000961-01
|
AC POWER CORD, 2.5M, UK, C13 CONN.
|
|
12-9000962-01
|
AC POWER CORD, 2.5M, CHINA, C13 CONN.
|
|
Accessories
|
|
|
Part Number
|
Description
|
|
98-9000186-01
|
HS-360X STAND
|
