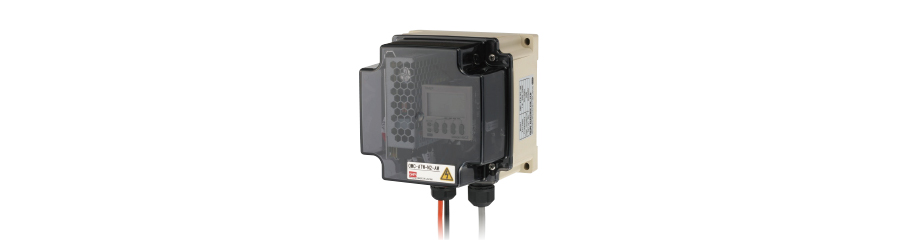

Optional automatic cleaning unit for OMC-N OHM

Model
OMC-ATW-N2-AW
Rated voltage (50/60Hz)
Single-phase AC100~240V
Rated power consumption
Approx. 60W (when the pump is operating)
Ambient temperature
0～+40℃
Ambient humidity
85% RH or less, no condensation
Injection amount (at head height 1 m)
Approx. 8 mL/sec
Injection time (fixed value)
0.5 sec
Standby time
10~199 minutes (20 minutes for default setting)
Maximum Lifting Height
3m
Liquid used
Water 0~+40°C (no freezing)
Water supply method
Tank (20L)
driving
Timer operation (default setting: water is sprayed for 0.5 seconds every 20 minutes)
suitability
Environmentally friendly
RoHS2
Power cable length
3m
Mist Catch Compatible Models
OMC-N***、OMC-N***H
Dimensions (mm)
Control unit *1
W135×H163×D120
tank
W360×H415×D206
Body weight
Control unit
2.5kg
tank
1.5kg
