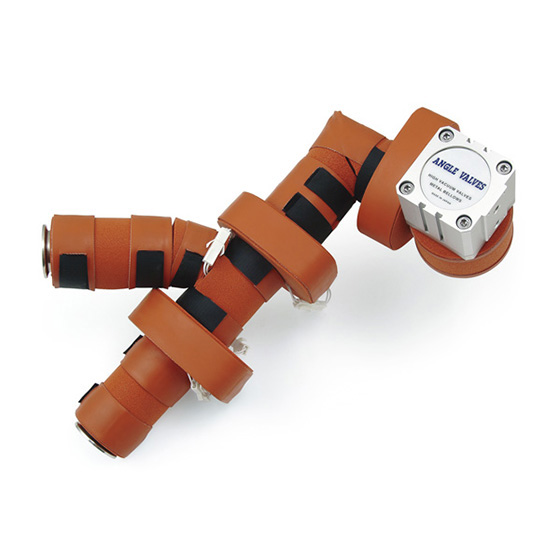

Pipe heater Specialized design for pipes valves and pumps Kawai

Length 1 to 23.5″　/　25 to 600 mm
Min. Diameter (φ) 1/5″　/　5mm
Operating Temp.* Up to 390ºF / 200ºC
Max. Watt Density* 13 W/in2　/　2.0 W/cm2
Max. Voltage (V) 240
Max. Resistance Density –
Wattage Tolerance +/-10%
Outer Dimension Tolerance –
Insulation Resistance (MΩ/DC V)** More than 1000/500
High Pot Test (V/min.) / (V/sec.) 1500 / 1800 (5 mA)
* Depending on heater specifications.
** Under no-heat conditions. This might be lowered to around 100 MΩ, depending on operating conditions.
