Customized Gearbox, High Loading Capacity

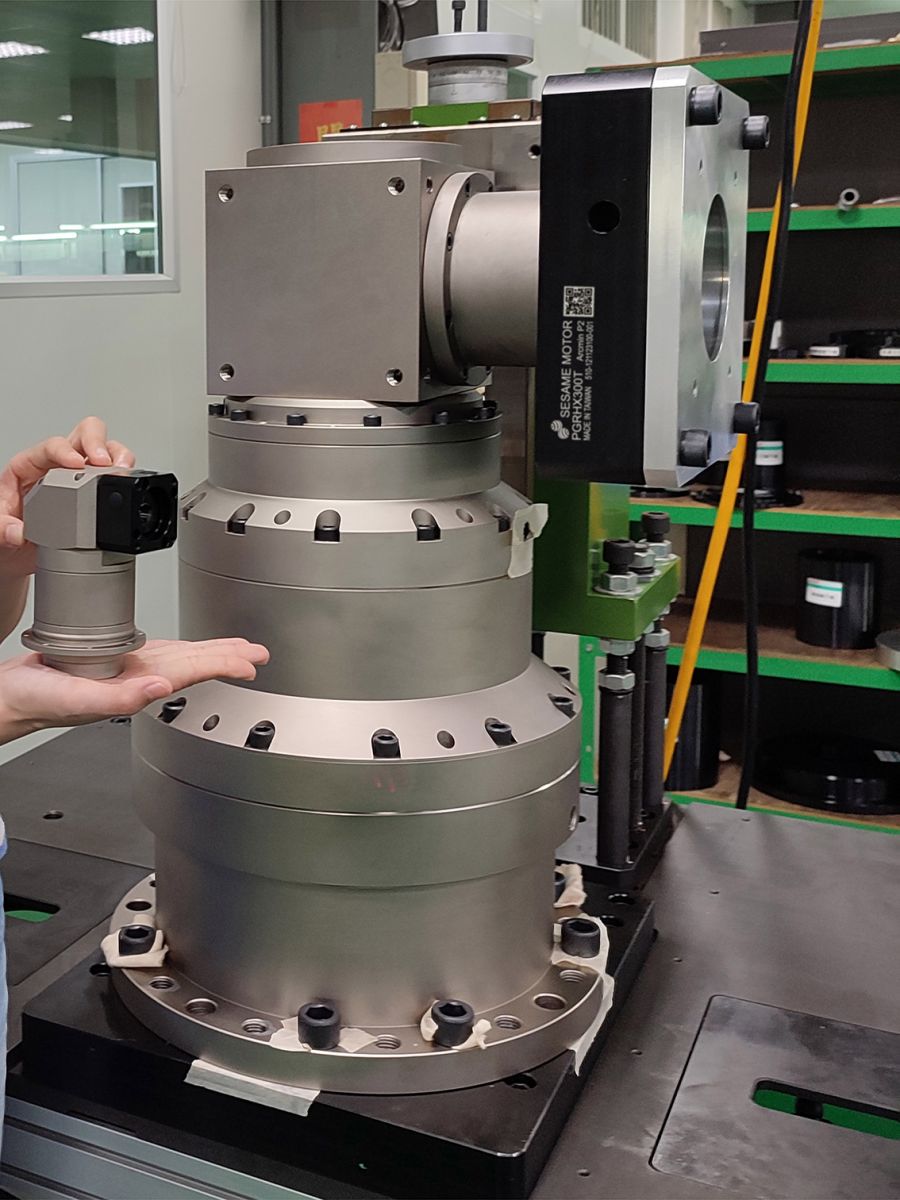

Rotary Shoe Injection Machinery Gearbox
A special designed gearbox for a specific application, the collaboration started with research and development much earlier than procurement. Sesame is working with a shoe making machinery manufacturer to optimum injection molding quality and efficiency. The success of this project relies on the planetary gearbox performance in precision positioning, high output torque, high stiffness and torsional rigidity.
Features
Special designed for plastic shoe injection molding machinery
One-piece planet carrier/output shaft, high rigidity and radial load capacity
One-piece ring gear/housing, high precision and torque output
Service life synthetic lubricant, maintenance-free
Specs
Frame size (mm): 300
Ratio: 100:1
Nominal input speed (rpm): 2000
Backlash (arcmin): 3-7
Nominal Output Torque (Nm): 11000
Torsional Rigidity (Nm/arcmin): 1800
Lubrication: service life synthetic lubricant
If you are working on a special project or application, where a standard product just does not cut it, contact Sesame to find out what we can deliver for your business.
