Plug gauge thread plug gauge Plug gauge Shjingmi

1
Models: plug gauge, thread plug gauge
Name: Plug gauge, thread plug gauge Plug gauge

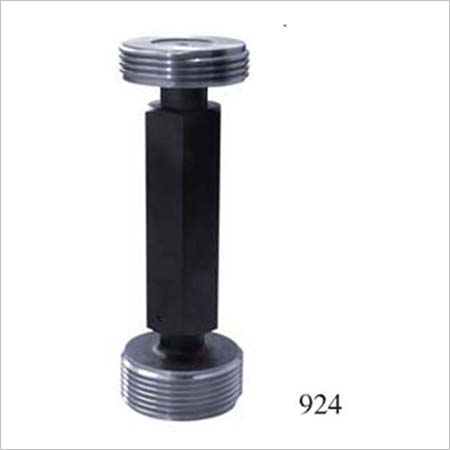

This is the threaded plug gauge.
1. The total specification is M1-M300
2.
All kinds of specifications, accuracy, see the details on the inside page.
2
Model: Proofread plug gauge
Name: Proofreading Plug Gauge Plug Gauge
This is a calibration of thread plug gauges,
please make sure the specifications and accuracy when purchasing.
3
Model: Smooth Plug Gauge, Smooth Limit Plug Gauge
Name:Smooth Plug Gauge, Smooth Limit Plug Gauge. Plug gauge
Smooth plug gauge,
the total specification is 1-100 The
subdivision specifications listed in the table are 1-50.
At the time of procurement, please confirm it, specifications, precision
4
Model: Needle gauge, needle plug gauge
Name: Needle gauge, needle plug gauge Plug gauge
This is the needle gauge, and the
gauge is: 0.1-13 diameter
5
Model Number: Ring Gauge, Threaded Ring Gauge
Name:Ring Gauge, Threaded Ring Gauge. Ring gauge
This is the threaded ring gauge.
1. The total specification is M1-M300
2.
All kinds of specifications, accuracy, see the details on the inside page
6
Model Number: Ring Gauge Ring Gauge Ring Gauge
Name: Ring gauge on the table Ring gauge
Gauge
specification: 10-200
7
Model Number: Smooth Ring Gauge, Smooth Ring Gauge
Name: Smooth Ring Gauge, Smooth Ring Gauge Ring Gauge
Smooth Ring Gauge, Smooth Ring Gauge
Specification, Φ3-Φ300
8
Models: trapezoidal plug gauge, trapezoidal ring gauge
Name: Trapezoidal Plug Gauge, Trapezoidal Ring Gauge Plug Gauge, Ring Gauge
The trapezoidal thread gauge is a thread gauge used to detect trapezoidal threaded connections of mechanical transmissions and fasteners with a tooth profile angle of 30°.
Specifications: 8-140
9
Model: Pipe thread plug gauge, pipe thread ring gauge
Name: Pipe Thread Plug Gauge, Pipe Thread Ring Gauge Plug Gauge, Ring Gauge
Pipe thread plug gauge, ring gauge
Specifications: G1/8-G4
10
Models: Cone Thread Plug Gauge, Spinal Thread Ring Gauge
Name: Cone Thread Plug Gauge, Spin Thread Ring Gauge Ring Gauge, Ring Gauge
Specification: NPT, R, a total of 36 specifications.
11
Model number: Morse gauge, Morse conical gauge
Name: Mohs Gauge, Mohs Cone Gauge Plug Gauge
The Morse taper gauge is used to check the correctness of the taper and dimensions of the tapered bore and tapered shank of machine tools and tools Type
A, without flat tail Type
B, 0 with flat tail
Accuracy classes are 1, 2, 3
12
Model: 7:24 taper, ring gauge, plug gauge
Name: 7:24 Taper, Ring Gauge, Plug Gauge, 7:24 Plug Gauge
7:24 Cone Gauge
Specifications: 30-80
13
Model: 3 pins, 3 pins for thread measurement
Name: Three-needle, three-pin for thread measurement Three-pin gauge
The three pins for thread measurement are three measuring needles with the same nominal diameter determined for each group
Diameter D(mm): 0.118-6.212
