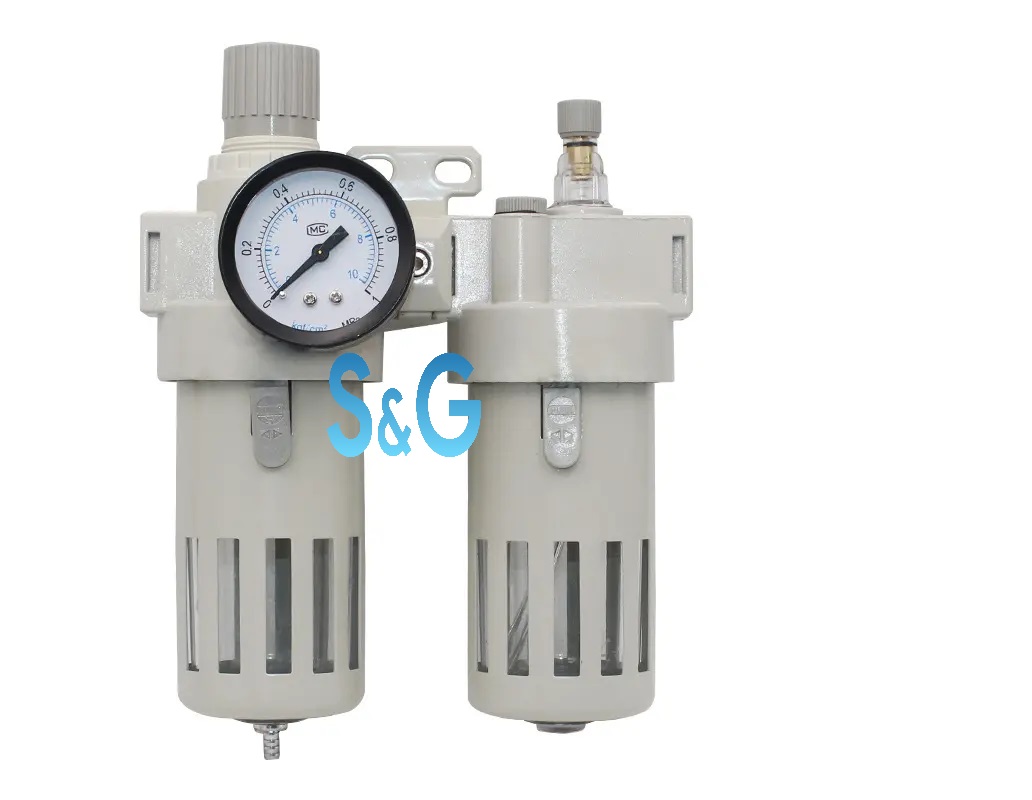

Pneumatic Frl Unit Air Pressure Filter Regulator AFR/BFR HOMI

Model AFR1500 AFR2000 BFR2000 BFR3000 BFR4000
Port size 1/8” 1/4” 1/4” 3/8” 1/2”
Working medium Air
Pressure regulating range 0.05~0.85Mpa（7~121Psi）
Max. working pressure 0.95Mpa(135Psi)
Proof pressure 1.5Mpa(213Psi)
Environment temperature 5~60℃
Filter spool precision 40μm
Water filter cup capacity 15CC 60CC
Weight 0.26 0.4
Main parts material Body material Aluminum alloy
Cup material PC
Cup hood AFR1500~AFR2000:without BFR2000~BL4000:Have(plastic)
