A wide variety of welding materials according to the application
Press punching mold
Resin/plastic mold
Height adjustment with shim plate
Temporary treatment of face with burr
Fixing a shim plate securely prevents mold shift!
Best suited for revision at place that is not weldable!
Fixing a shim plate securely prevents mold shift!
Nesting parts
Adjustment of R-shaped face
Adjustment of nest backlash
This model is best suited for fine adjustment with a shim plate at making a master model! This model is attachable according to R-shaped faces!
Best suited to fixing shim plate attached to side face!
Example of use
Welding material
Supported range
Application
Shim plate
Up to 0.5 ㎜ in thickness
For adjustment of bottom face, side face, and R-shaped drawing of nest
Welding material
Supported range
Application
Welding wire
0.1 to 0.4 ㎜ in diameter
For burr avoiding or selecting material suitable for steel material
Welding material
Supported range
Application
Porous material
0.7 ㎜ in thickness
For burr avoiding or welding by fixing the height and shape of the welding material
Welding material
Supported range
Application
Yarn
20 to 100μm in fiber diameter
For repair of scratch or pinhole
Making twisting it according to shape and weldable
Welding material
Supported range
Application
Powder
145 μm or less in particle diameter
For repair of pinhole
Use after making it into paste form by kneading it with oil
Comparison between SW-808 and SW-V02
SW-V02
200V
Not required
TIG & RES
x2
Advantages of using SW-808
At the place where even the laser heat is not permitted.
Almost zero machine preparation required.
Easy handling because of small machine.
Easy securing of power supply.
Mold repair available even at the place where gas cannot be brought.
No license required for handling the machine, and no special protective equipment required.
Introducible at low cost.
Unfavorable welding
Melting in required to increase in strength.
No melting is required and, accordingly, the actual material and color of repair welding material shown.
Pinhole in mirror-finished face of product
Strength-required PL or hard-facing
repair at three apexes
Burr avoiding repair in a short time
Time required for shim plate attachment
Matching of material and color at repair point
Power supply
Argon gas (shielding gas)
Welding method
Price (suggested retail price base)

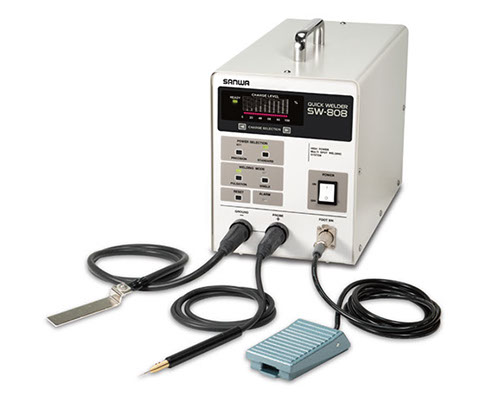

SW-808
100/200V
Not required
RES
Less than 1/2
Two Mode
Broad Application Range
「PRECISION」&「STANDARD」
■Plastic mold ■Die casting mold ■Press mold
■Glass mold ■Blow mold ■Rubber mold
■Copper alloy mold etc…
Option
Silver Tungsten
Electrode
Φ2 ×50㎜(round)
Φ3 ×50㎜(round)
Φ5 x50㎜(round)
t1.5×5×50㎜(flat)
Φ2 ×50㎜ Magnet type (round)
Φ3 ×50㎜ Magnet type (round)
Φ5 ×50㎜ Magnet type (round)
Φ13×130㎜ For Φ2 electrode
Φ13×130㎜ For Φ3 electrode
Φ18×150ｍｍ
※Electrode holder required
Φ18 Electrode holder for handpiece
FOR Φ2/Φ3/Φ5
The SW-808 has two types of outputs; one is PRECISION and the other is STANDARD, and you can make a selection. PRECISION is excellent in welding at precise points. STANDARD is suitable for welding at wide areas and thick materials.
The maximum output of PRECISION overlaps with the minimum output of STANDARD; therefore, the most suitable output can be surely found for any different welding materials.
※Please select a hand piece in accordance with the size of the resistant torch cord.
Accessories
Specifications
Method
Input
Power consumption
Output
Tact Time
Control
Others
Dimensions
Weight
Condenser Electrical Discharge
Single Pase 230V 50/60Hz
630VA
3000A MAX
0.27sec. MIN
CPU Controlled
Single/Continuous electricity switching function
180(W) ×240(H) ×390(D)
Approx 17kg
Tool box
Foot Switch
Ground Wire1.0 m
Ground Plate
Output Cord for φ13㎜（for domestic）
Handpiece for φ2 / φ3㎜
Output Cord for φ18㎜（for overseas）
Handpiece for φ5㎜
Silver Tungsten Electrode
Metal Cutter
Electrode Case
Power Cord
Please note that No. 5 or No. 6 is standard equipment as an output cord.
