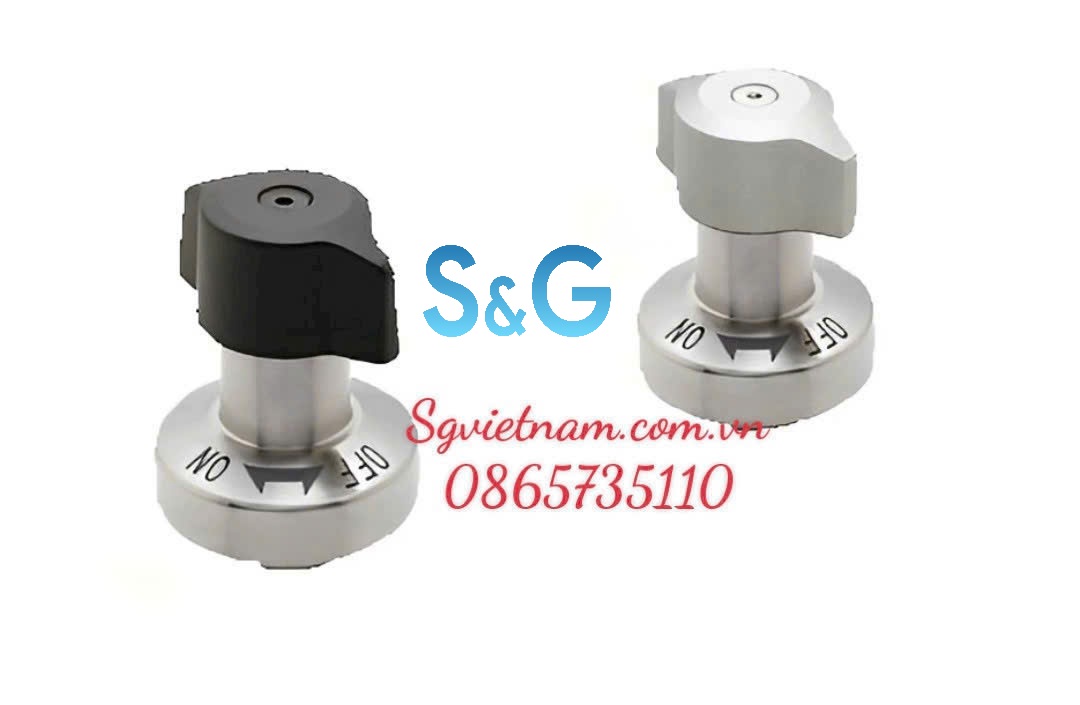

This part QCTH0525-10 is a quarter turn clamp. This clamp has a plastic knob head and bears indications showing if the clamp is open or closed. The clamp is furnished with 3 socket head cap installation screws of M2x0,4 – 5 mm. This is an old part number, we recommend to use the new SpanClamps part number:
SCQT0610-P ← 53 pieces in stock ㅤ
.jpg "buy QCTH0525-10 quarter-turn")
Material/ Technical InfoBody303 Stainless Steel
shankS45C steel Electroless nickel plated
KnobPolyamide black
SpringEquivalent SWOSC-V
PinSUS304 Stainless steel
Weight35 g
Heatresistant temperature130 degrees Celsius
Shear strength1800 N
Tensile strength1200 N
Clamping force60 N
Measurements
Plate thickness3-10 mmD (- 0,08 / – 0,04)5D1 (h9)14D225D320DP21L15,5H19H16,5MM2x0,4 – 3 mm deep
.jpg "info QCTH0525-10")
Anemo Engineering is offering Quarter Turn Clamp as factory new.
Shear and tensile strength is allowable load and the fastener could break when it receives bigger load.
