Space-saving: Embedded industrial computer + EMC controller, which can save 50% of the space of the electrical cabinet
High performance: It can support expansion of up to 64 axes and 128 slaves, and the bus jitter is less than 10us
Easy to expand: 100 gigabit high-speed backplane protocol, expand up to 32 blade modules to achieve US-level IO synchronous refresh
Easy to use: The debugging software integrates functions such as online simulation, driver debugging, one-click scanning configuration, and bus diagnosis, improving development efficiency by 30%
Anti-interference: The hardware platform design stability is improved by 20%, the anti-interference capability is significantly increased by 30%, and the overall EMC performance is increased by 20%.
Distributed: Support up to 254 controllers for networking Product
Overview

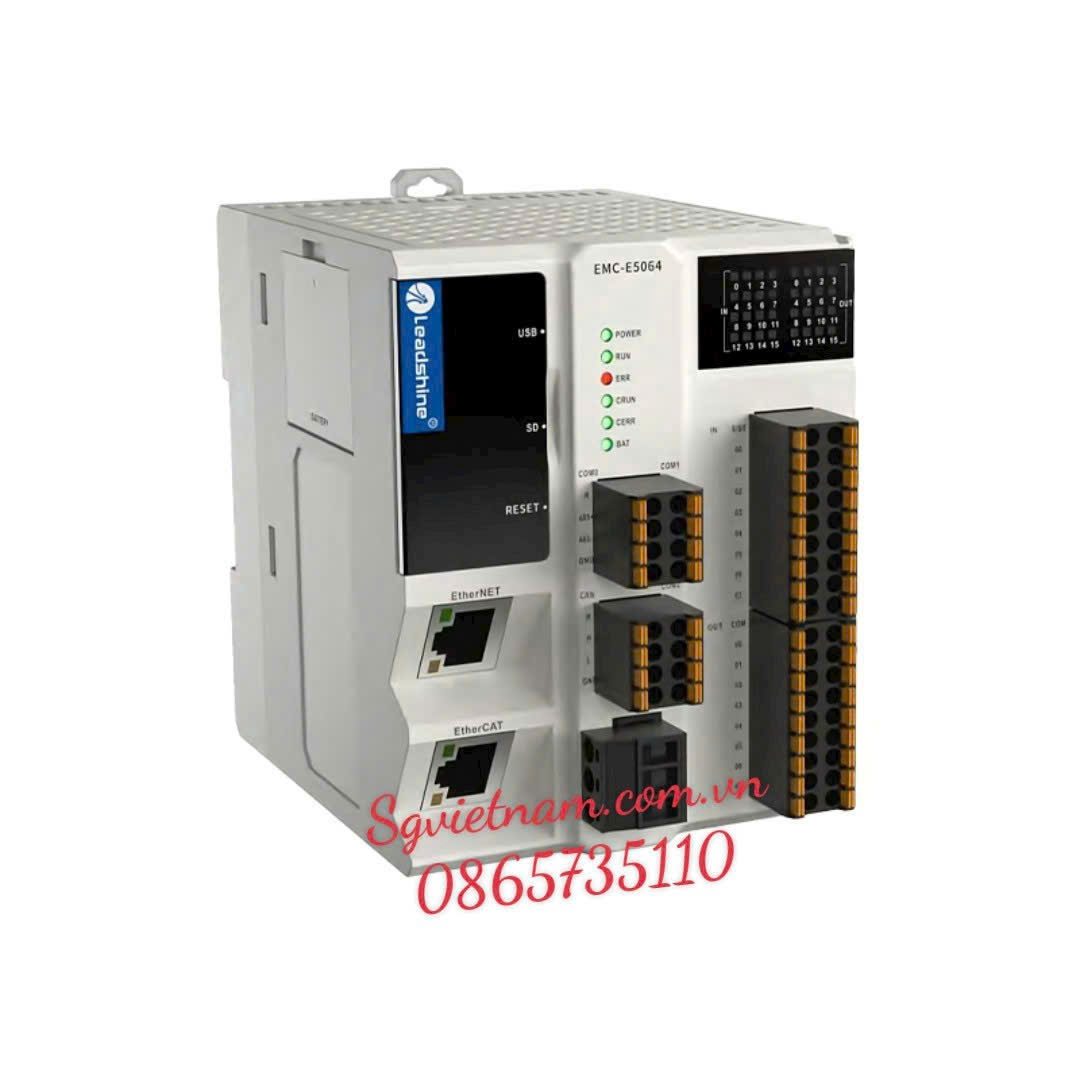

EMC series bus motion controller is an EtherCAT bus motion controller developed based on more than 20 years of motion control experience in the context of the new era of intelligent manufacturing.
The controller adopts distributed networking control and supports up to 254 controllers to network operation.
The EMC series bus motion controller has a powerful load capacity that supports expansion of up to 64 axes and 128 slaves, and the bus control synchronous jitter is less than 10μs. With small size, easy installation and integrated design, the embedded industrial computer + EMC controller can save about 50% of the installation space. The hardware platform as a whole adopts a strong anti-interference design, and the electrical interference is impeccable! The controller body supports RS232 and RS485 interfaces, and supports standard and customized extended Modbus communication protocols, which meets the needs of multi-sensor real-time monitoring of the production process of intelligent production lines. The 100M high-speed backplane bus protocol can expand up to 32 backplane modules, and the module types cover 17 models such as digital, analog, and encoder for selection. The EMC series bus motion controller inherits the original function interface of the control card, and is equipped with powerful debugging software: it supports simple and easy-to-use functions such as sampling tracking, online simulation, function printing, driver debugging, slave one-click scanning configuration, bus diagnosis, etc., and the development efficiency is improved by more than 30%.
EMC series bus type motion controllers can be widely used in the intelligent production line transformation of 3C electronics, semiconductors, photovoltaics, lithium batteries, logistics sorting, special machine tools and other industries.
Specifications:
|
Controller type Technical indicators |
EMC-E3000 series |
EMC-E5000 series |
|
Expandable motor axles |
64 |
64 |
|
Bus communication rate |
Up to 100Mbps |
Up to 100Mbps |
|
Supported bus cycles |
500us、1ms、2ms | 500us、1ms、2ms |
|
The number of supported imputation coordinate systems |
4 | 4 |
|
Number of common digital inputs |
16 (Expandable). |
16 (Expandable). |
|
Number of common digital outputs |
16 (Expandable). |
16 (Expandable). |
|
Universal digital input |
Optoelectronic isolation, RC filtering |
Optoelectronic isolation, RC filtering |
|
Universal digital input conducts current |
≥4.2 mA (15V) Typical 6.9mA (24V) |
≥4.2 mA (15V) Typical 6.9mA (24V) |
|
Universal digital input maximum response frequency |
4 kHz |
4 kHz |
|
Universal digital output |
Optoelectronic isolation, collector open circuit |
Optoelectronic isolation, collector open circuit |
|
Maximum current of the universal digital output |
5~500 mA (24Vdc, inhaled). |
5~500 mA (24Vdc, inhaled). |
|
Number of high-speed input ports |
12 |
12 |
|
Number of high-speed outputs |
12 |
12 |
|
Operating temperature |
0~50 ℃ |
0~50 ℃ |
|
Storage temperature |
-20~80 ℃ |
-20~80 ℃ |
|
humidity |
5~85 %, non-condensing |
5~85 %, non-condensing |
|
External Power Supply (Input) |
24VDC±5% ，1A |
24VDC±5% ，1A |
|
Motion control function library |
It supports multiple languages such as VC, VB6.0, C#, VB.NET, LabVIEW, and Delphi |
It supports multiple languages such as VC, VB6.0, C#, VB.NET, LabVIEW, and Delphi |
|
Debugging software |
Motion debugging software |
Motion debugging software |
