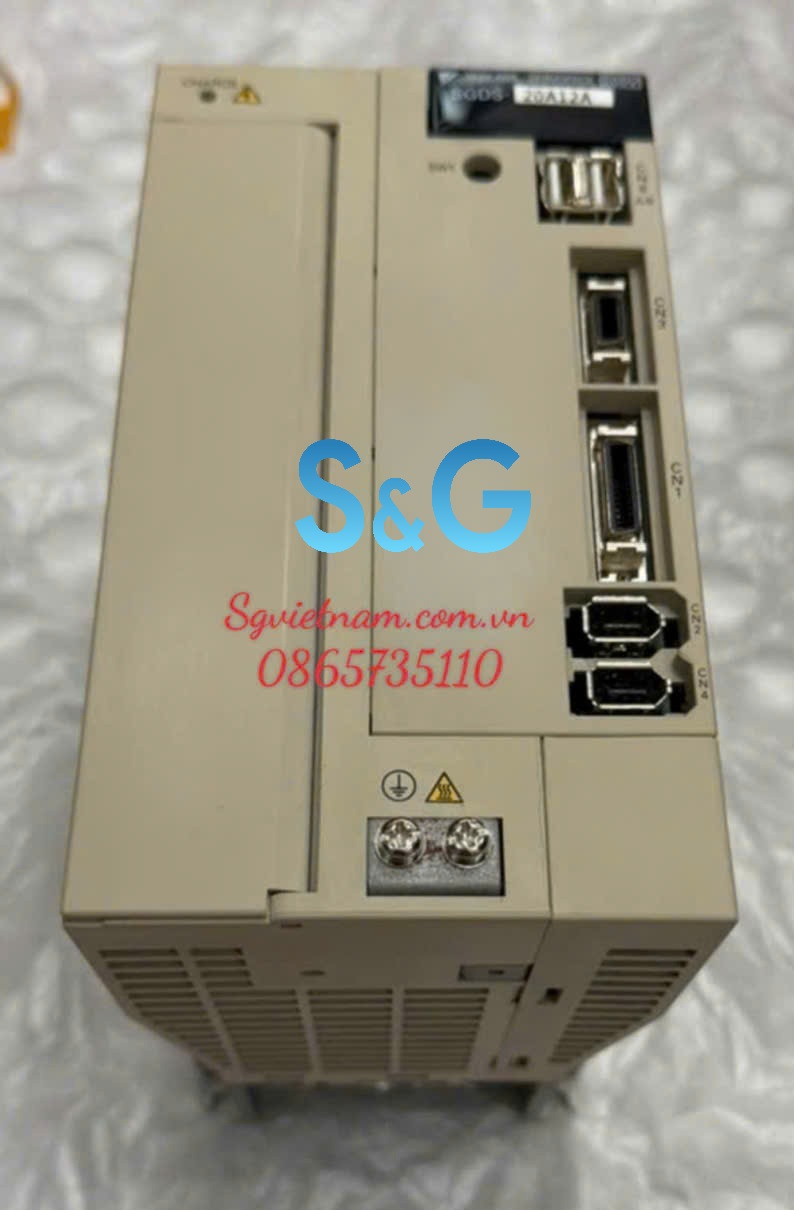

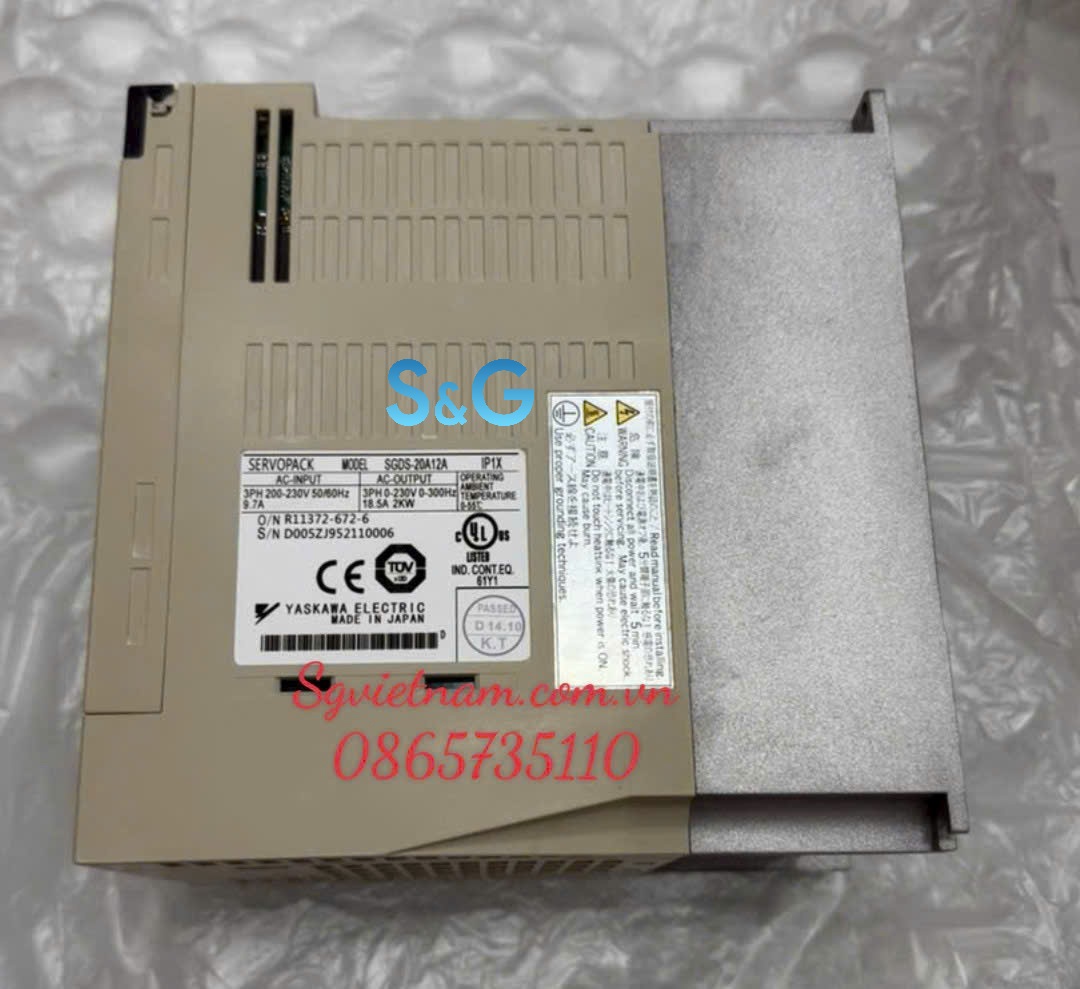

| Manufacturer Part Number | SGDS-20A12A |
|---|---|
| Manufacturer | Yaskawa |
| Family Series | Yaskawa Drives |
| Description | S3 AMP 200V 3PH 2KW W/ M2 |
| Power Rating | 2 kW |
| Voltage | 200-230 VAC |
| Continuous Current | 3PH: 16.7 A |
| Peak Current | 3PH: 42 A |
| Control Mode | Rotary Servo |
| Phase | 3 |
| CT Net CT Sync | No |
| Frequency | 600 Hz |
| Analog Output | 2 |
| Mechatrolink | Yes |
| Dynamic Braking | Yes |
| Line Regenerative | Yes |
| Operating Temperature | 0-55 °C |
| Approvals | CE, cULus, cURus |
| Net Weight | 7.64 lbs |
| Gross Weight | 7.64 lbs |
