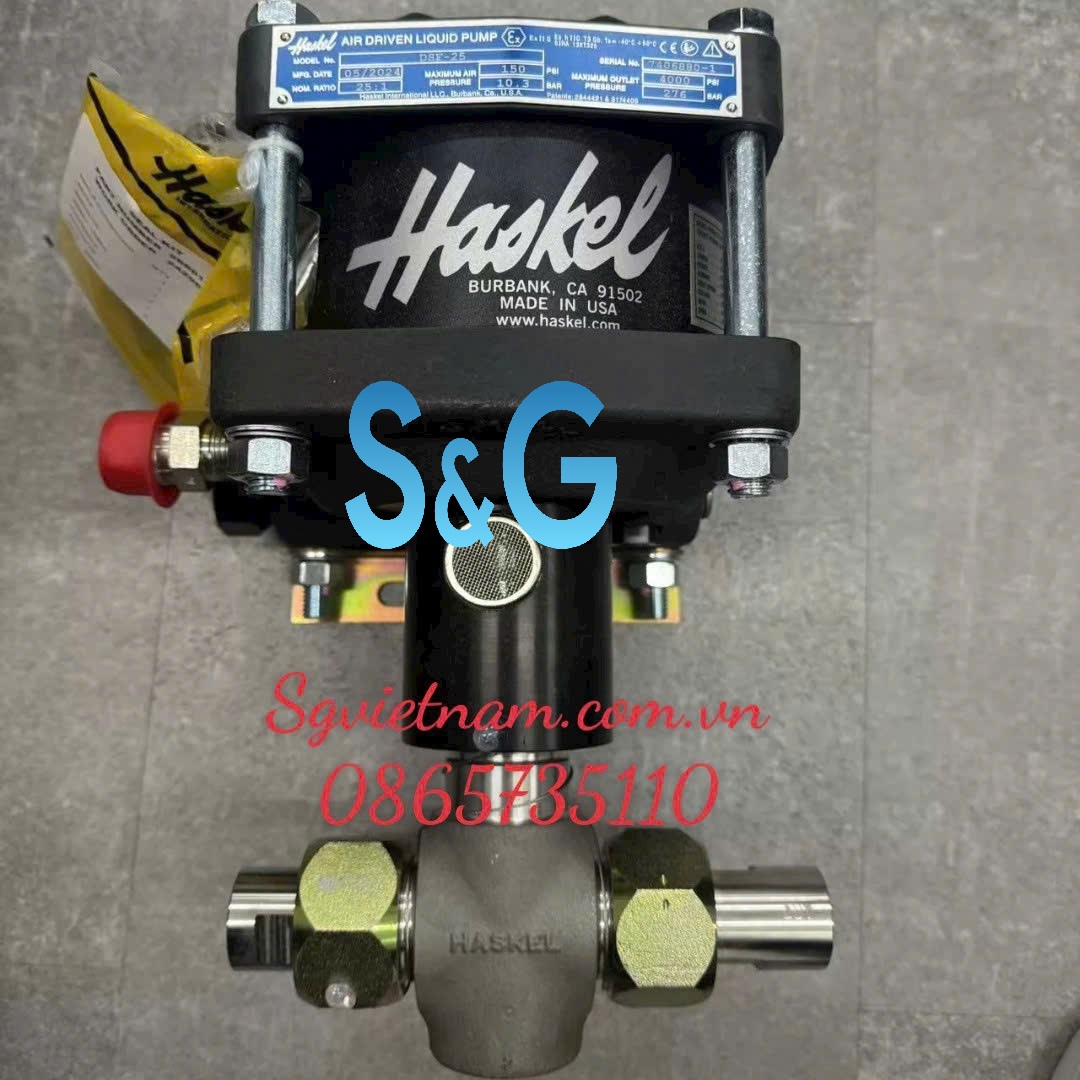

Features & Benefits:
- Safe pneumatic operation – no heat, flame or spark risk
- Infinitely variable cycling speed
- Stall at pre-determined pressure to hold that pressure without consuming power
- Problem-free stop/start applications
- Easily automated – many modification and control options
- Suitable for most liquids and liquefied gases
- Alternative gas drive options available, such as sour gas, natural gas, boil off gases, or nitrogen
- Robust, reliable, compact and easy to maintain proven design
- No need for air line lubrication – saves costs and prevents contamination
- Unbalanced cycling spool provides immediate response to pressure changes
- Can be manufactured to ATEX, CE and NACE
Technical Data:
- Power: 1.5HP
- Air Head: single
- Max Air Pressure: 150 PSIG
- Max cycles: 80/min.
- Nominal ratio (“dash number”): 25:1
- Actual area ratio: 29:1
- Max outlet pressure (continuous): 4000 PSIG
- Max outlet pressure (intermittent): 4000 PSIG
- Displacement / cycle: 1.62 cu. in.
- Max flow: 486 cu. in./min.
Typical Performance Characteristics (@100 PSIG air supply pressure):
- 403 in3/min @ 1000 psig
- 195 in3/min @ 2500 psig
Materials of Construction:
- Pump section: Separation – All SS
- Plunger: 440C SS hard-chrome plated
- Non-metallics: UHMWPE, Viton, PTFE, Ryton
Applications:
- Service Code 1: Petroleum-based oils, kerosene, ethylene glycol, water with 5% soluble oil.
- Service Code 2: Plain water, diesel fuel
- Service Code 3: Most phosphate ester-based fire-resistant hydraulic fluids (e.g. Pydraul, Lindol, Cellulube, Fyrquel and Houghtosafe 1120) and petroleum-based solvents compatible with UHMWPE (Ultra-high Molecular Weight Polyethylene) dynamic seals and Viton static seals.
- Service Code 4: N/R
- Service Code 5: Skydrol and Aerosafe hydraulic fluid; acetone and some alcohols (ethyl, methyl, and isopropyl).
- Service Code 6: De-ionized water; demineralized water
Repair kit information:
- Fluid section seal kit P/N: 51533-25
- Air drive seal kit P/N: 16772
- Air valve seal kit P/N: 16771
- Distance piece seal kit P/N: 17327
- Optional tools: 28584 (Sleeve removal tool); 53220-25 (Seal insertion tool, “F” seal); 29370 (for installing ring on 1/2″ check valve); T-17386-25 S (to align distance piece spacer with piston rod)
- Notes: Seal installation tool is included in fluid section kit.
