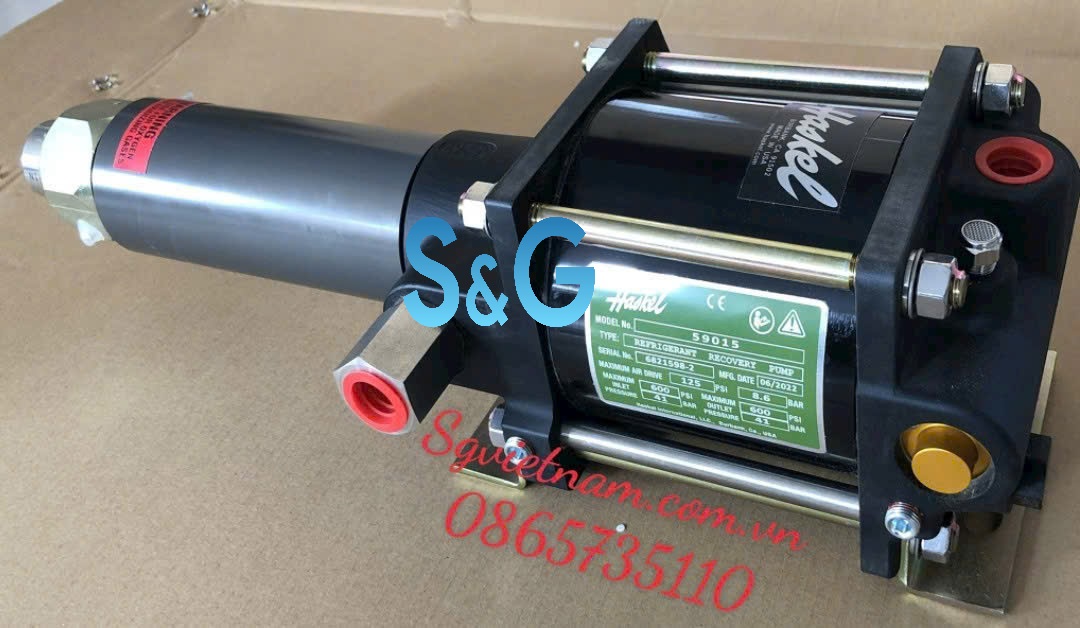

Operational data |
|
|---|---|
| Air drive pressure | 1.8 to 8.6 bar |
| Operating pressure, max. | 41 bar |
| Nominal Gear Ratio | 1:5 |
| Formula for operating pressure Po | 4.5 x Pa+hp |
| Displacement | 150 cc |
| Weight | 6.2 kg |
| Operating temperature, max. | – 29°C to +40°C |
Connections |
|
|---|---|
| Compressed air (drive) | 1/2″ NPT |
| Fluid inlet | 1/2″ NPT |
| Liquid outlet | 1/2″ NPT |
| Number of air drive cylinders | 1 |
| Principle of operation | two-stage |
Materials wetted parts |
|
|---|---|
| Seals | Neoprene/PTFE/UHMWPE/HNBR |
| Pump head | Aluminium |
| Pistons and valves | 1.4305 / Stainless Steel |
| High Pressure Cylinder | Stainless steel |
Accessories |
|
|---|---|
| Filter regulator with pressure gauge and ball valve | -C |
| Line filters / suction filters | ZSO0005 (ZSO0388-VA) |
| Power unit completely assembled | on request |
Gasket Kits |
|
|---|---|
| High Pressure Gasket Kit | 57365 / 99-101 |
| Air propulsion | 57340 |
Modifications |
|
|---|---|
| Refrigerant | HFO-1234yf; R134a; e.g. |
| Certified according to 94/9/EC | Atex (ExII2GcT6) |
03 Characteristic curve
04 Design Drawing
