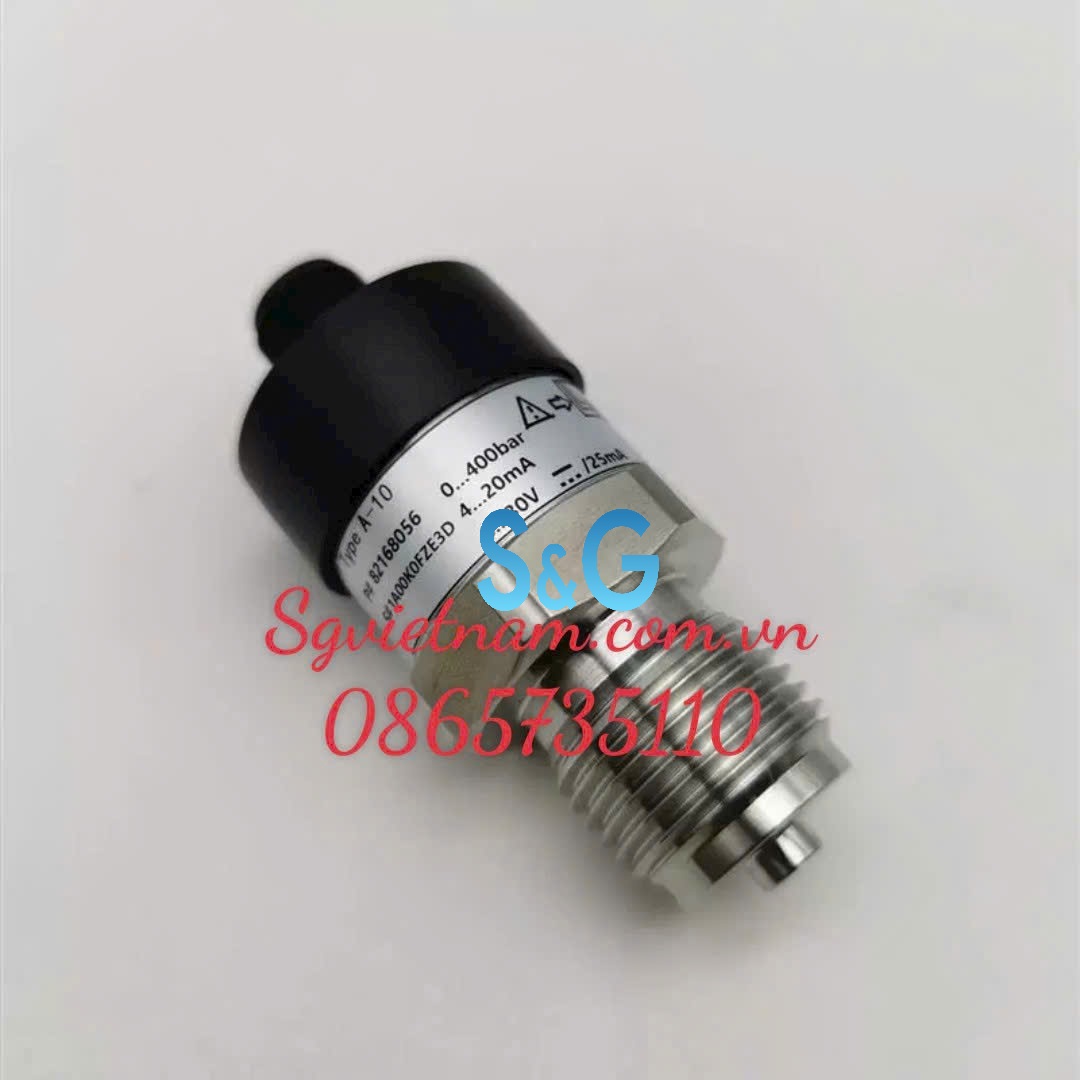

Cảm biến áp suất|pressure sensor|Wika|A-10

Liên hệ

Danh mục: Cảm biến áp suất

Mô tả

Technical Information

Specifications according to data sheet	PE 81.60
Wetted parts	316L
Case	316L
Standard article
Non-linearity	0.5% BFSL
Unit	bar
Process connection	G 1/4 A DIN EN ISO 1179-2
Sealing	NBR
Permissible medium temperature	0…+80 °C
Approvals	cULus

available in stock
available after production
–not available

Electrical connection		valve connector, size A		circular connector M12x1, 4-pin
Output signal		4 … 20 mA, 2-wire	0 … 10 V, 3-wire	4 … 20 mA, 2-wire	0 … 10 V, 3-wire
Power supply		8…30 V DC	14…30 V DC	8…30 V DC	14…30 V DC
Measuring range
Price
0…0.05 bar gauge	14182731	14182737	45796643	14252511
0…0.1 bar gauge	14182732	14182738	35128314	14252519
0…0.16 bar gauge	14182733	14182739	14252508	14252520
0…0.25 bar gauge	14182734	14182740	14252509	14252523
0…0.4 bar gauge	14182736	14182741	14252510	14252524
0…0.6 bar gauge	14116790	14116248	14126782	14063267
Price
0…1 bar gauge	12719049	12852822	13002830	12797902
0…1.6 bar gauge	12719405	12963446	12809455	14126594
0…2.5 bar gauge	12719243	12909913	12742423	14011272
0…4 bar gauge	12719251	12725421	12809447	14006333
0…6 bar gauge	12719391	12824837	12966224	12797881
0…10 bar gauge	12719260	12725057	12762831	12797864
0…16 bar gauge	12719286	12784720	12777588	12797848
0…25 bar gauge	12719308	12873315	12778908	13328906
0…40 bar gauge	12719316	12910903	12762858	14002240
0…60 bar gauge	12719324	12725448	12809331	13258606
0…100 bar gauge	12719383	12850838	12890449	13099729
0…160 bar gauge	12719375	12887430	13002856	14004998
0…250 bar gauge	12719332	12725111	12724859	12889726
0…400 bar gauge	12719341	12725102	12751198	12696839
0…600 bar gauge	12719367	12850781	12786943	12812880
