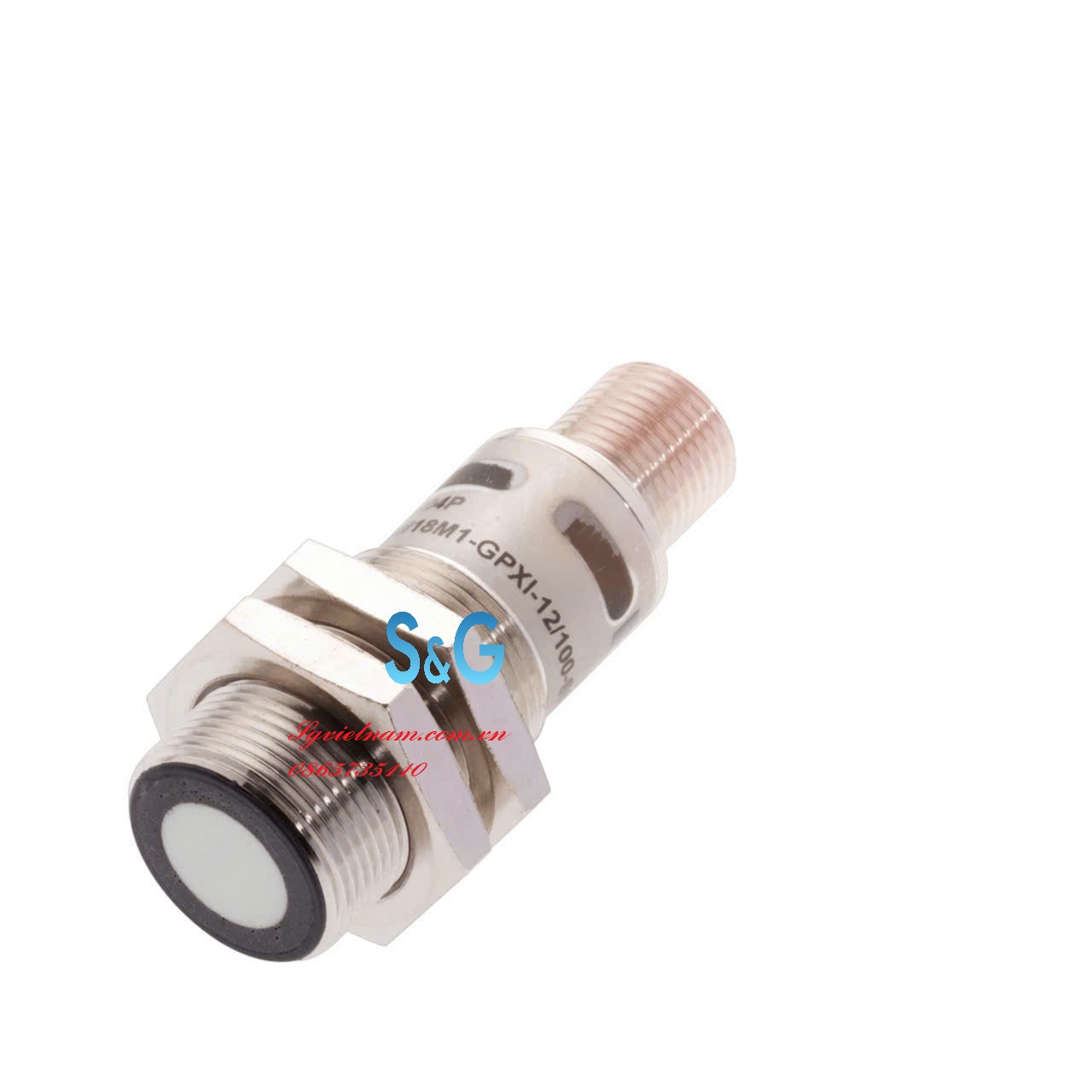

| Brand | BALLUFF | |
| Thread Size | M18 | |
| Sensor Technology | Ultrasonic | |
| Detection Range | 1.3 m | |
| Body Style | Threaded Barrel | |
| Digital Switching Output Type | IO-Link | |
| Connection Type | M12 | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP67 | |
| Length | 52.5mm | |
| Housing Material | Brass, PBT | |
| Maximum DC Voltage | 30V | |
| Minimum Operating Temperature | -25°C | |
| Communication Protocol | IO-LINK | |
| Maximum Switching Frequency | 10Hz | |
| Short Circuit Overload Protection | Yes | |
| Standards Met | CE | |
| Switching Frequency | 10 Hz | |
| Reverse Polarity Protection | Yes | |
| Maximum Operating Temperature | +75°C | |
| Series | M18M1 | |
| Switching Current | 40 mA |
