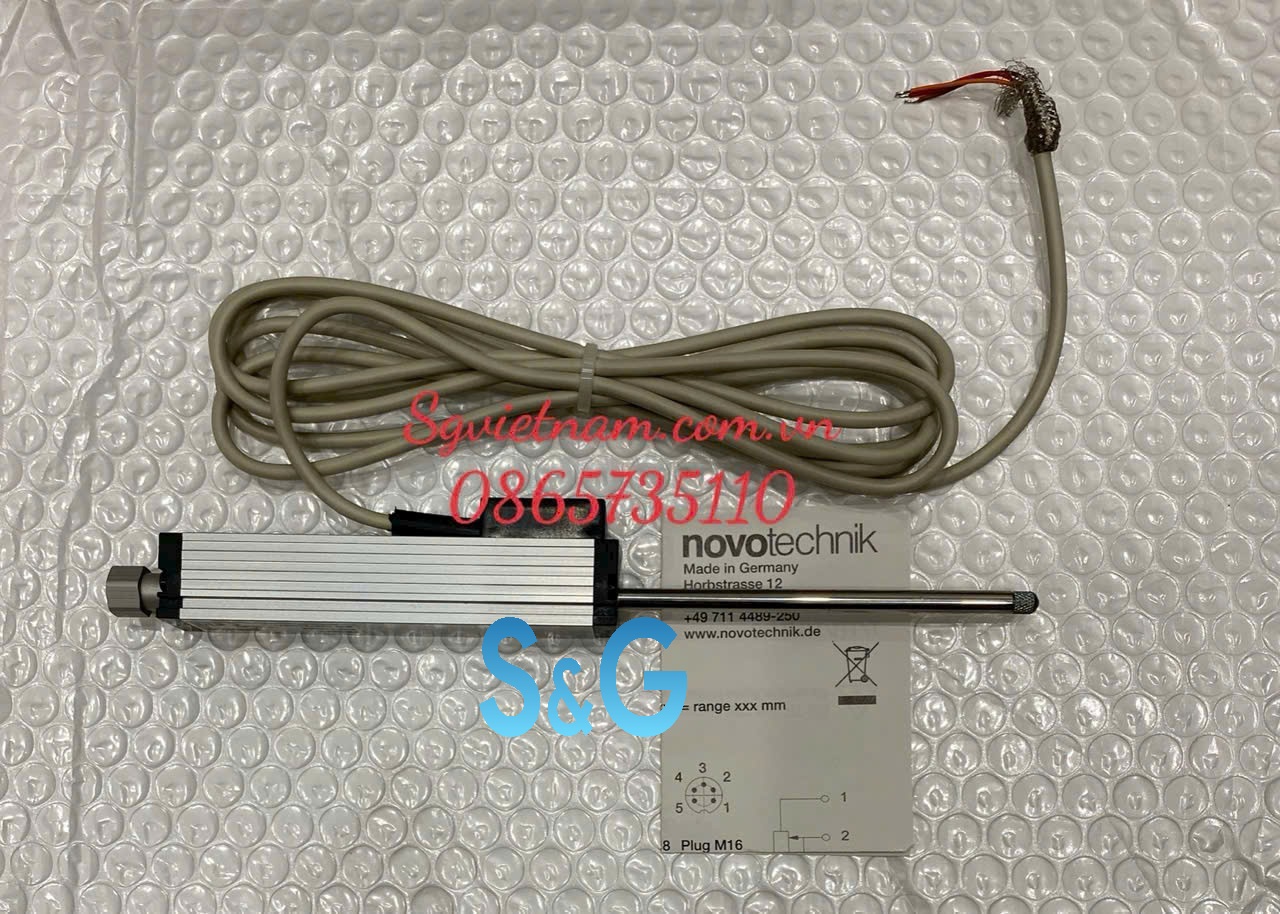

Description
Material Housing: aluminium AlMgSi, anodized
Actuating rod: SS 1.4305 / AISI 303, with anti-twist safeguard, internal thread M2.5×6
Mounting Adjustable clamps 2x Z-45 and 4x cylinder screws M4x10 DIN EN ISO 1207 (included in delivery)
Fastening torque of mounting max. 140 Ncm
Bearing Double-sided DU glide bearings
Probe tip SS with external thread M2.5 and pressed-in hardened metal ball (included in delivery)
Resistance element Conductive plastic
Wiper Precious metal multi-finger wiper, elastomer damped
Electrical connection Cable 3x 0.14 mm² (AWG 26), PVC, shielded, L = 2 m / Connector M8x1, 3-pin / Connector M16x0.75 (IEC 130-9), 5-pin
Mechanical Data
Type TR/TRS-0010… TR/TRS-0025… TR/TRS-0050… TR/TRS-0075… TR/TRS-0100…
Dimensions See dimension drawing
Length of housing (dimension A +1 mm) 48 mm 63 mm 94.4 mm 134.4 mm 166 mm
Mechanical travel (dim. B ±1.5 mm) 15 mm 30 mm 55 mm 80 mm 105 mm
Flange nut SW-10 (dimension C) 7 mm 12 mm 12 mm 12 mm 12 mm
Excess length of push rod in end position
(dimension D)
6 mm 32 mm 32 mm 32 mm 32 mm
Weight (cable/connector version) 80/- g 120/74 g 150/100 g 180/128 g 200/150 g
Weight actuating rod with wiper 18 g 25 g 36 g 48 g 57 g
Operating force, horizontal
(extended/retracted)
≤ 3.5 / 5 N ≤ 2.5 / 5 N ≤ 2.5 / 5 N ≤ 2.5 / 5 N ≤ 2.5 / 5 N
Operating force to end stop max 5 N
Max. operating frequency* 20 Hz 18 Hz 14 Hz 11 Hz 10 Hz
*) Data refer to critical application “probe tip upwards
