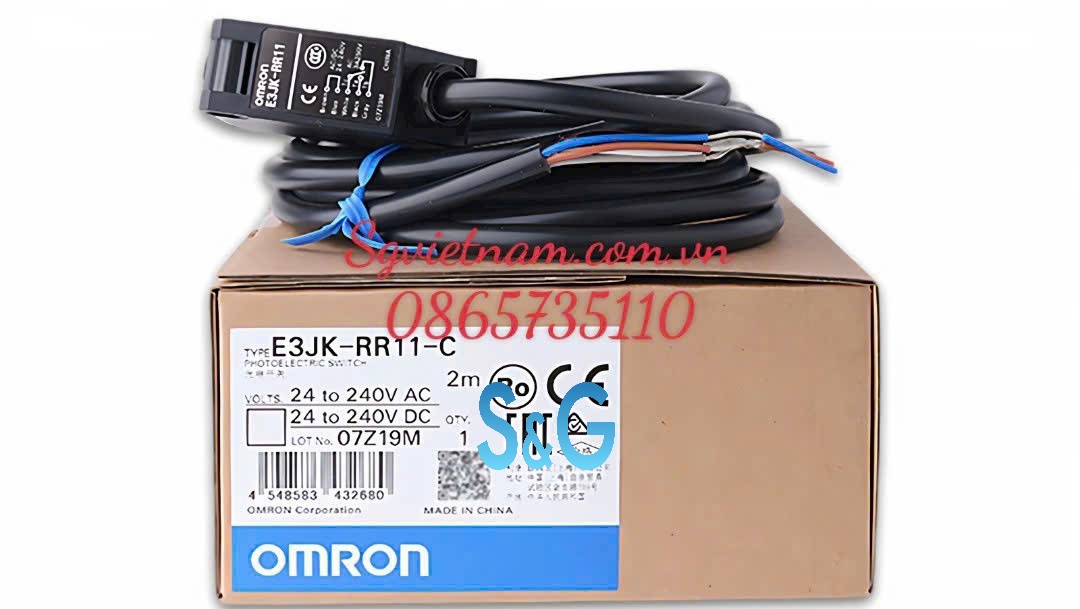

Cảm biến|sensor|Omron|E3JK-RR11-C

Specification	Value
Sensing Method	Retro-reflective without MSR function
Sensing Distance	When using the E39-R1: 100 mm to 7 m When using the E39-R2: 100 mm to 11 m
Light Source	Red LED (624 nm)
Power Supply Voltage	24 to 240 VDC , ripple (p-p): 10% max. 24 to 240 VAC , 50/60 Hz
Output Configuration	Relay
Connection Method	Pre Wired, Cable Length 2M
Power Consumption	DC: 2 W max. AC: 2 W max.
Operation Mode	Light-ON/Dark-ON
Response Time	20 ms max
Sensitivity Adjustment	One-turn adjuster
Ambient Illumination	Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient Temperature Range	Operating: −25°C to 55°C, Storage: −40°C to 70°C (with no icing or condensation)
Ambient Humidity Range	Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation Resistance	20 MΩ min. at 500 VDC
Dielectric Strength	1,500 VAC, 50/60 Hz for 1 min
Protection Circuits	Mutual interference prevention function
Degree Of Protection	IEC 60529 IP64
Material	ABS (Acrylonitrile Butadiene Styrene)
Weight	Approx. 180 g
